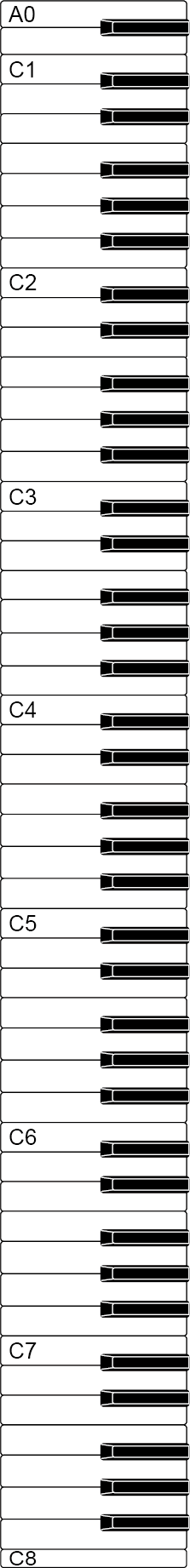

Keyboard Function List - Various Lists

Set basic settings such as tuning

Hold down the “FUNCTION” button and select key.

	Note name	Assigned Function
	A0	Factory Reset
	B}0	Auto Power Off	disable/enable
	B0
	C1	Execution
	C{1	Wireless MIDI & audio adaptor	Wireless Audio Pairing
	D1		Wireless Function	Off/On
	E}1		Connection notification tone volume	(–)
	E1		Connection notification tone volume	(+)
	F1		Delete connection history
	F{1	USB Flash Drive	Save All Audio
	G1		Load All Audio
	A}1		Load SMF/MRF
	A1		Save SMF
	B}1		Save MRF
	B1		Delete SMF/MRF/Audio
	C2		Format
	C{2	Internal Flash Drive	Clear Audio
	D2	Internal Flash Drive	Clear All Audio
	E}2
	E2
	F2	Duet	Duet Mode	Off/On/Pan
	F{2		Left-side keyboard Octave Shift	(–)
	G2		Left-side keyboard Octave Shift	(+)
	A}2		Right-side keyboard Octave Shift	(–)
	A2		Right-side keyboard Octave Shift	(+)
	B}2
	B2	Mixer	Wireless Audio Volume	(–)
	C3		Wireless Audio Volume	(+)
	C{3		Wireless Audio Center Cancel	disable/enable
	D3		Audio Song Volume	(–)
	E}3		Audio Song Volume	(+)
	E3		Audio Song Center Cancel	Off/On
	F3		MIDI Song Volume	(–)
	F{3		MIDI Song Volume	(+)
	G3		Keyboard Volume	(–)
	A}3		Keyboard Volume	(+)
	A3
	B}3	RePlayer/Recorder	Instant RePlayer
	B3		MIDI Recorder
	C4		Audio Recorder (USB Drv.)
	C{4		Audio Rec with MIDI playback (USB Drv.)
	D4		Audio Recorder (Internal)
	E}4		Audio Rec with MIDI playback (Internal)
	E4
	F4	Tuning	Scale Tuning Selection
	F{4		Scale Tuning base note
	G4		Stretch Tuning	Off/On
	A}4
	A4		A-tuning	440.0 Hz
	B}4			442.0 Hz
	B4			–0.1 Hz
	C5			+0.1 Hz
	C{5
	D5
	E}5
	E5
	F5	Visual Information Bar	Display	Auto
	F{5			Metronome
	G5			Keyboard
	A}5			Pedal
	A5			Audio
	B}5		Metronome Type	1/2/3/4/5
	B5		Audio Illumination Type	1/2/3/4
	C6		Brightness/Off	Off/1/2
C{6
D6	Pedal	Half Pedal Position	(–)
E}6	Pedal	Half Pedal Position	(+)
E6
F6	MIDI settings	Local Control	Off/On
F{6		Keyboard Channel	(–)
G6		Keyboard Channel	(+)
A}6		Hi-Res Velocity MIDI OUT	disable/enable
A6
B}6	Touch Button Luminosity	1/2
B6	Left Panel Touch Button Sensitivity	(–)
C7	Left Panel Touch Button Sensitivity	(+)
C{7	Front Panel Touch Button Sensitivity	(–)
D7	Front Panel Touch Button Sensitivity	(+)
E}7	Speaker Out	disable/enable/Auto
E7	Headphone Mode	Off/On
F7	Volume Sync Equalizer	Off/Weak/Normal/Strong
F{7	Power On Alert	disable/enable
G7	Panel Light setting	Off/5 sec./15 sec./30 sec./60 sec./120 sec.
A}7	Auto Resume	disable/enable
A7	Notification Tone Volume	(–)
B}7	Notification Tone Volume	(+)
B7	Notification Tone Set selection	1/2/3
C8	Panel Lock	disable/enable/Auto

Change Sound Mode Effects and other settings

Hold down the “SOUND MODE” button and select key.

	Note name	Assigned Function
	A0	Sound Mode Effects	Hall Simulator/Reverb Type	Tone
	B}0			Salon
	B0			N.Y. Club
	C1			Scoring Stage
	C{1			Opera Hall
	D1			Viennese Hall
	E}1			L.A. Hall
	E1			Berlin Hall
	F1			British Stadium
	F{1			Room 1
	G1			Room 2
	A}1			Room 3
	A1			Large Room
	B}1			Hall 1
	B1			Hall 2
	C2			Hall 3
	C{2			Stadium
	D2		Hall Simulator/Reverb depth	(–)
	E}2		Hall Simulator/Reverb depth	(+)
	E2		Wireless Audio Hall Simulator/Reverb depth	(–)
	F2		Wireless Audio Hall Simulator/Reverb depth	(+)
	F{2		Surround Type	1
	G2			2
	A}2			3
	A2
	B}2
	B2	Brilliance	(–)
	C3	Brilliance	(+)
	C{3	Acoustic Simulator	String Resonance	Tone
	D3			Off
	E}3			(–)
	E3			(+)
	F3		Damper Resonance	Tone
	F{3			Off
	G3			(–)
	A}3			(+)
	A3		Damper Noise	Tone
	B}3			Off
	B3			(–)
	C4			(+)
	C{4		Open String Resonance	Tone
	D4			Off
	E}4			(–)
	E4			(+)
	F4		Aliquot Resonance	Tone
	F{4			Off
	G4			(–)
	A}4			(+)
	A4		Pedal Action Noise	Tone
	B}4			Off
	B4			(–)
	C5			(+)
	C{5		Key On Action Noise	Tone
	D5			Off
	E}5			(–)
	E5			(+)
	F5		Key Off Action Noise	Tone
	F{5			Off
	G5			(–)
	A}5			(+)
	A5		Lid Simulator	Tone
	B}5			Close
	B5			Semi
	C6			Full
C{6	Removed
D6
E}6
E6	Piano Position	Standard
F6	Piano Position	Wall
F{6
G6
A}6
A6
B}6
B6
C7	Chorus Type	Tone
C{7		Chorus 1
D7		Chorus 2
E}7		Chorus 3
E7		Chorus 4
F7		Feedback Chorus
F{7		Deep Chorus
G7		Flanger 1
A}7		Flanger 2
A7		Flanger 3
B}7		Flanger 4
B7		Short Delay 1
C8		Short Delay 2

Change scene and metronome settings

Hold down the “SCENE” button and select key.

	Note name	Assigned Function
	A0	Tempo setting (using a numerical value)	0
	B}0		1
	B0		2
	C1		3
	C{1		4
	D1		5
	E}1		6
	E1		7
	F1		8
	F{1		9
	G1
	A}1
	A1	Metronome Volume	(–)
	B}1	Metronome Volume	(+)
	B1
	C2	Tempo setting (using tempo markings)	Largo
	C{2		Lento
	D2		Adagio
	E}2		Andante
	E2		Moderato
	F2		Allegretto
	F{2		Allegro
	G2		Vivace
	A}2		Presto
	A2
	B}2	Tap Tempo
	B2	Tempo Change	(–)
	C3	Tempo Change	(+)
	C{3	Metronome beat bell sound	Off
	D3		1 beat
	E}3		2 beats
	E3		3 beats
	F3		4 beats
	F{3		5 beats
	G3		6 beats
	A}3		7 beats
	A3		8 beats
	B}3		9 beats
	B3	Store in User Scenes
	C4	User Scene	1
	C{4		2
	D4		3
	E}4		4
	E4		5
	F4		6
	F{4		7
	G4		8
	A}4		9
	A4		10
	B}4
	B4
	C5	Preset Scene	1
	C{5		2
	D5		3
	E}5		4
	E5		5
	F5		6
	F{5		7
	G5		8
	A}5		9
	A5		10
	B}5
	B5
	C6
C{6
D6
E}6
E6
F6
F{6
G6
A}6
A6
B}6
B6
C7
C{7
D7
E}7
E7
F7
F{7
G7
A}7	USB Flash Drive (User Scene)	Save
A7		Load
B}7		Delete
B7
C8	USB Flash Drive (User Scene) Execution

Select a song

Hold down the “a” button and select key.

	Note name	Assigned Function
	A0	Song selection using song number	0
	B}0		1
	B0		2
	C1		3
	C{1		4
	D1		5
	E}1		6
	E1		7
	F1		8
	F{1		9
	G1
	A}1
	A1
	B}1	Song Playback Part selection	LR/L/R
	B1	Music Library (User Song)	61	User 1
	C2		62	User 2
	C{2		63	User 3
	D2		64	User 4
	E}2		65	User 5
	E2		66	User 6
	F2		67	User 7
	F{2		68	User 8
	G2		69	User 9
	A}2		70	User 10
	A2	MIDI Recorder Song
	B}2	USB Flash Drive Song
	B2	Song Select	(–)
	C3	Song Select	(+)
	C{3	Music Library (Built-in Song)	1	Nocturne Op.9-2
	D3		2	Fantaisie-Impromptu Op.66
	E}3		3	Étude Op.10-3 “Chanson de l’adieu”
	E3		4	Étude Op.10-5 “Black Keys”
	F3		5	Étude Op.10-12 “Revolutionary”
	F{3		6	Étude Op.25-9 “Butterflies”
	G3		7	Prélude Op.28-7
	A}3		8	Valse Op.64-1 “Petit Chien”
	A3		9	Valse Op.64-2
	B}3		10	Moments Musicaux 3
	B3		11	Impromptu Op.90-2
	C4		12	Marche Militaire 1 (Duet)
	C{4		13	Frühlingslied [Lieder Ohne Worte Heft 5]
	D4		14	Fröhlicher Landmann [Album für die Jugend]
	E}4		15	Von fremden Ländern und Menschen [Kinderszenen]
	E4		16	Träumerei [Kinderszenen]
	F4		17	Tambourin
	F{4		18	Menuet BWV Anh.114 [Clavierbüchlein der Anna Magdalena Bach]
	G4		19	Inventio 1 BWV 772
	A}4		20	Inventio 8 BWV 779
	A4		21	Inventio 13 BWV 784
	B}4		22	Praeludium 1 BWV 846 [Das Wohltemperierte Klavier 1]
	B4		23	Le Coucou
	C5		24	Gavotte
	C{5		25	Sonatina Op.36-1 1st Mov.
	D5		26	Sonatine Op.20-1 1st Mov.
	E}5		27	Sonate K.545 1st Mov.
	E5		28	Sonate K.331 3rd Mov. “Turkish March”
	F5		29	Rondo K.485
	F{5		30	Für Elise
	G5		31	Marcia alla Turca
	A}5		32	Sonate Op.13 “Pathétique” 1st Mov.
	A5		33	Sonate Op.13 “Pathétique” 2nd Mov.
	B}5		34	Sonate Op.13 “Pathétique” 3rd Mov.
	B5		35	Sonate Op.27-2 “Moonlight” 1st Mov.
	C6		36	Rhapsodie 2
C{6	37		Waltz Op.39-15 (Duet)
D6	38		Liebesträume 3
E}6	39		Blumenlied
E6	40		La Prière d’une Vierge
F6	41		Csikos Post
F{6	42		Humoresque Op.101-7
G6	43		Melodie [Lyrische Stücke Heft 2]
A}6	44		Sicilienne Op.78
A6	45		Berceuse [Dolly] (Duet)
B}6	46		Arabesque 1
B6	47		La Fille aux Cheveux de Lin [Préludes]
C7	48		Passepied [Suite bergamasque]
C{7	49		Gymnopédie 1
D7	50		Je Te Veux
E}7	51		Salut d’Amour
E7	52		The Entertainer
F7	53		Maple Leaf Rag
F{7	54		L’arabesque [25 Etüden Op.100]
G7	55		La Styrienne [25 Etüden Op.100]
A}7	56		Ave Maria [25 Etüden Op.100]
A7	57		Le retour [25 Etüden Op.100]
B}7	58		La chevaleresque [25 Etüden Op.100]
B7	59		No.13 [Études de Mécanisme Op.849]
C8	60		No.26 [Études de Mécanisme Op.849]

Selecting Songs During Demo Playback

Hold down the “a” button and select key.

	Note name	Assigned Function
	A0	Demo songs	1
	B}0		2
	B0		3
	C1
	C{1
	D1
	E}1
	E1
	F1
	F{1
	G1
	A}1
	A1
	B}1
	B1
	C2
	C{2
	D2
	E}2
	E2
	F2
	F{2
	G2
	A}2
	A2
	B}2
	B2	Song Select	(–)
	C3	Song Select	(+)
	C{3	Music Library (Built-in Song)	1	Nocturne Op.9-2
	D3		2	Fantaisie-Impromptu Op.66
	E}3		3	Étude Op.10-3 “Chanson de l’adieu”
	E3		4	Étude Op.10-5 “Black Keys”
	F3		5	Étude Op.10-12 “Revolutionary”
	F{3		6	Étude Op.25-9 “Butterflies”
	G3		7	Prélude Op.28-7
	A}3		8	Valse Op.64-1 “Petit Chien”
	A3		9	Valse Op.64-2
	B}3		10	Moments Musicaux 3
	B3		11	Impromptu Op.90-2
	C4		12	Marche Militaire 1 (Duet)
	C{4		13	Frühlingslied [Lieder Ohne Worte Heft 5]
	D4		14	Fröhlicher Landmann [Album für die Jugend]
	E}4		15	Von fremden Ländern und Menschen [Kinderszenen]
	E4		16	Träumerei [Kinderszenen]
	F4		17	Tambourin
	F{4		18	Menuet BWV Anh.114 [Clavierbüchlein der Anna Magdalena Bach]
	G4		19	Inventio 1 BWV 772
	A}4		20	Inventio 8 BWV 779
	A4		21	Inventio 13 BWV 784
	B}4		22	Praeludium 1 BWV 846 [Das Wohltemperierte Klavier 1]
	B4		23	Le Coucou
	C5		24	Gavotte
	C{5		25	Sonatina Op.36-1 1st Mov.
	D5		26	Sonatine Op.20-1 1st Mov.
	E}5		27	Sonate K.545 1st Mov.
	E5		28	Sonate K.331 3rd Mov. “Turkish March”
	F5		29	Rondo K.485
	F{5		30	Für Elise
	G5		31	Marcia alla Turca
	A}5		32	Sonate Op.13 “Pathétique” 1st Mov.
	A5		33	Sonate Op.13 “Pathétique” 2nd Mov.
	B}5		34	Sonate Op.13 “Pathétique” 3rd Mov.
	B5		35	Sonate Op.27-2 “Moonlight” 1st Mov.
	C6		36	Rhapsodie 2
C{6	37		Waltz Op.39-15 (Duet)
D6	38		Liebesträume 3
E}6	39		Blumenlied
E6	40		La Prière d’une Vierge
F6	41		Csikos Post
F{6	42		Humoresque Op.101-7
G6	43		Melodie [Lyrische Stücke Heft 2]
A}6	44		Sicilienne Op.78
A6	45		Berceuse [Dolly] (Duet)
B}6	46		Arabesque 1
B6	47		La Fille aux Cheveux de Lin [Préludes]
C7	48		Passepied [Suite bergamasque]
C{7	49		Gymnopédie 1
D7	50		Je Te Veux
E}7	51		Salut d’Amour
E7	52		The Entertainer
F7	53		Maple Leaf Rag
F{7	54		L’arabesque [25 Etüden Op.100]
G7	55		La Styrienne [25 Etüden Op.100]
A}7	56		Ave Maria [25 Etüden Op.100]
A7	57		Le retour [25 Etüden Op.100]
B}7	58		La chevaleresque [25 Etüden Op.100]
B7	59		No.13 [Études de Mécanisme Op.849]
C8	60		No.26 [Études de Mécanisme Op.849]

Start mark and start seconds for Instant RePlayer

Hold down the “a” button and select key.

	Note name	Assigned Function
	Note name	Replay start second count	Replay start mark
	A0	15 seconds back
	B}0		Most recent
	B0	20 seconds back
	C1	25 seconds back
	C{1		1 time back
	D1	30 seconds back
	E}1		2 times back
	E1	35 seconds back
	F1	40 seconds back
	F{1		3 times back
	G1	45 seconds back
	A}1		4 times back
	A1	50 seconds back
	B}1		5 times back
	B1	55 seconds back
	C2	60 seconds back
	C{2		6 times back
	D2	65 seconds back
	E}2		7 times back
	E2	70 seconds back
	F2	75 seconds back
	F{2		8 times back
	G2	80 seconds back
	A}2		9 times back
	A2	85 seconds back
	B}2		10 times back
	B2	90 seconds back
	C3	95 seconds back
	C{3		11 times back
	D3	100 seconds back
	E}3		12 times back
	E3	105 seconds back
	F3	110 seconds back
	F{3		13 times back
	G3	115 seconds back
	A}3		14 times back
	A3	120 seconds back
	B}3		15 times back
	B3	125 seconds back
	C4	130 seconds back
	C{4		16 times back
	D4	135 seconds back
	E}4		17 times back
	E4	140 seconds back
	F4	145 seconds back
	F{4		18 times back
	G4	150 seconds back
	A}4		19 times back
	A4	155 seconds back
	B}4		20 times back
	B4	160 seconds back
	C5	165 seconds back
	C{5		21 times back
	D5	170 seconds back
	E}5		22 times back
	E5	175 seconds back
	F5	180 seconds back
	F{5		23 times back
	G5	185 seconds back
	A}5		24 times back
	A5	190 seconds back
	B}5		25 times back
	B5	195 seconds back
	C6	200 seconds back
C{6		26 times back
D6	205 seconds back
E}6		27 times back
E6	210 seconds back
F6	215 seconds back
F{6	215 seconds back	28 times back
G6	220 seconds back
A}6		29 times back
A6	225 seconds back
B}6		30 times back
B6	230 seconds back
C7	235 seconds back
C{7		31 times back
D7	240 seconds back
E}7		32 times back
E7	245 seconds back
F7	250 seconds back
F{7		33 times back
G7	255 seconds back
A}7		34 times back
A7	260 seconds back
B}7		35 times back
B7	265 seconds back
C8	270 seconds back

Change tone and other settings

Hold down the “TONE” button and select key.

	Note name	Assigned Function
	A0	Upper1 settings	Upper1 Volume	(–)
	B}0		Upper1 Volume	(+)
	B0		Upper1 Octave Shift	(–)
	C1		Upper1 Octave Shift	(+)
	C{1	Transpose	(–)
	D1	Transpose	(+)
	E}1	Touch Response	Off
	E1		Light
	F1		Medium light
	F{1		Normal
	G1		Medium heavy
	A}1		Heavy
	A1	Hammer Response	Tone
	B}1		Off
	B1		(–)
	C2		(+)
	C{2
	D2
	E}2	Key Off Response	Tone
	E2		Fast
	F2		Normal
	F{2		Slow
	G2
	A}2
	A2
	B}2
	B2	Tone Selection	(–)
	C3	Tone Selection	(+)
	C{3	Tone Selection	BERLIN GRAND
	D3		BERLIN GRAND BRIGHT
	E}3		BERLIN GRAND MELLOW
	E3		HAMBURG GRAND
	F3		HAMBURG GRAND BRIGHT
	F{3		HAMBURG GRAND MELLOW
	G3		VIENNA GRAND
	A}3		VIENNA GRAND BRIGHT
	A3		VIENNA GRAND MELLOW
	B}3		ROCK PIANO
	B3		JAZZ PIANO
	C4		BALLAD PIANO
	C{4		POP PIANO
	D4		DANCE PIANO
	E}4		HONKY-TONK PIANO
	E4		PIANO PAD
	F4		ELEC.PIANO
	F{4		60’S E.PIANO
	G4		DIGITAL E.PIANO 1
	A}4		DIGITAL E.PIANO 2
	A4		HARPSICHORD
	B}4		VIBRAPHONE
	B4		STRINGS 1
	C5		STRINGS 2
	C{5		PIPE ORGAN
	D5		JAZZ ORGAN
	E}5		ELEC.ORGAN 1
	E5		ELEC.ORGAN 2
	F5		BASS (LOWER)
	F{5	Tone Selection of Classical Piano Repertoire	SONATA GRAND
	G5		CONCERT ETUDE GRAND
	A}5		ETUDE GRAND
	A5		PRELUDE GRAND
	B}5		ROMANCE GRAND
	B5		PARTITA GRAND
	C6		NOCTURNE GRAND
C{6	WALTZ GRAND
D6	POLONAISE GRAND
E}6	LITTLE PIECE UPRIGHT
E6
F6
F{6
G6
A}6
A6
B}6
B6
C7	Layer settings	Layer	Off/On
C{7		Upper2 Volume	(–)
D7		Upper2 Volume	(+)
E}7		Upper2 Octave Shift	(–)
E7		Upper2 Octave Shift	(+)
F7		Upper2 Detune	(–)
F{7		Upper2 Detune	(+)
G7		Upper2 Damper	disable/enable
A}7	Split settings	Lower Volume	(–)
A7		Lower Volume	(+)
B}7		Lower Detune	(–)
B7		Lower Detune	(+)
C8		Lower Damper	disable/enable
