Playing Audio Data (WAV, MP3)

Data that Can be Played Back

The following audio data can be played.

• Audio data stored in the internal memory of the Digital Piano

• Audio data in the AUDIOREC folder stored on a USB flash drive can be played back.

Supported audio data formats are as follows.

• WAV files (linear PCM, 16bit, 44.1kHz, stereo, extension: .WAV), file name “TAKE**.WAV” (where ** = 01-99)

• MP3 files (MPEG-1 Audio Layer3, 44.1kHz/48kHz, bit rate 32-320kbps/variable bit rate (VBR) supported, mono/stereo, extension: .MP3), file name “TAKE**.MP3” (where ** = 01-99)

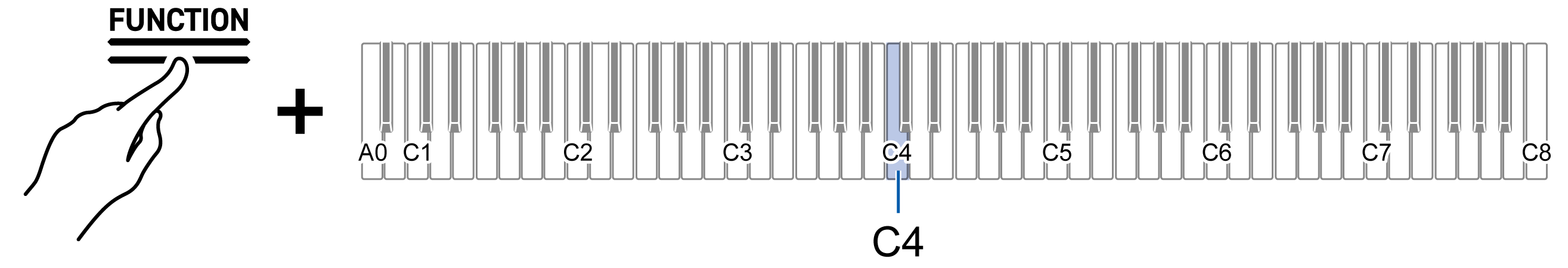

Switching to Audio Recorder

Switch the [RePlayer/Recorder] setting to one of the following.

Selecting a Song for Playback

Use <Audio Recorder (USB Drv.)> or <Audio Recorder (Internal)>.

Switching to Audio Recorder

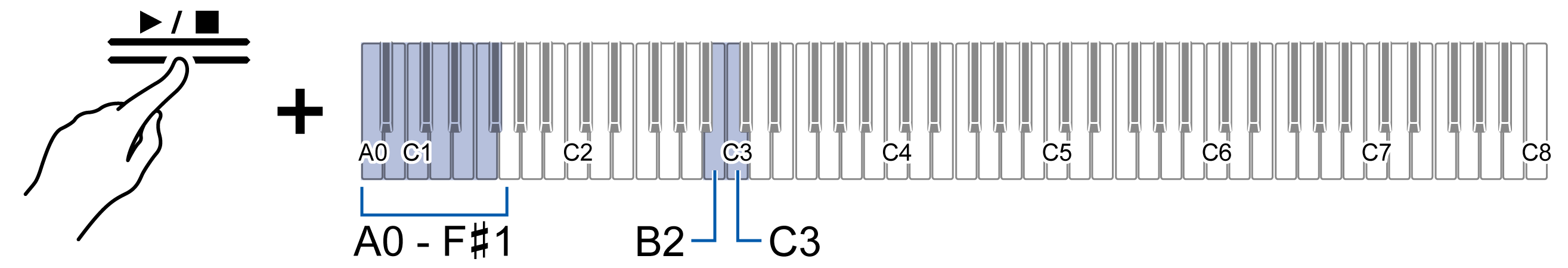

1. Hold down the “a” button and use the corresponding key to select a song. After selecting a song, release the “a” button.



   • Use the A0 to F{1 keys to specify the TAKE**.WAV (where ** =01-99) number.

     Inputting Setting Values Using the Keys 0 to 9 (operation type C)

   • Use keys B2/C3 (Song Select – /Song Select +) to specify previous/next song number

     Using the +/– Keys to Raise or Lower the Setting Value by 1 (operation type B)

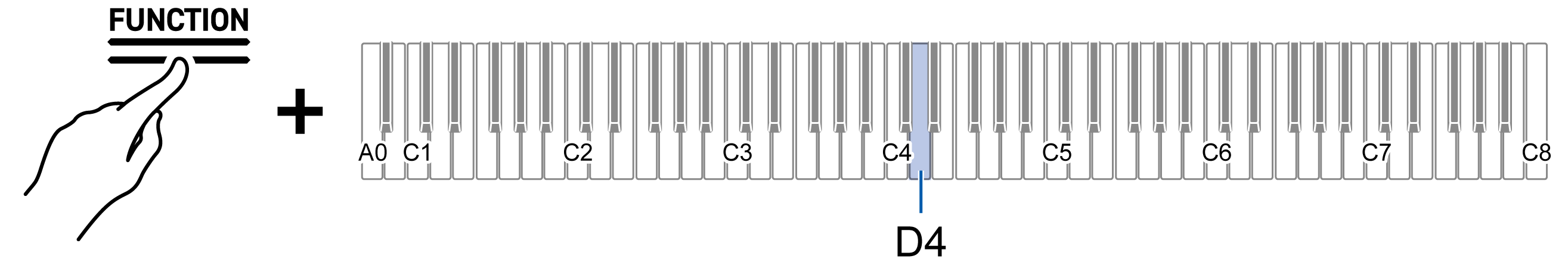

2. To start playback, touch the “a” button. To stop playback in the middle of a song, touch the “a” button again.

   • Playback ends when the end of the song is reached.
