Changing the Lower Part Settings

Adjusting the Lower Part Volume

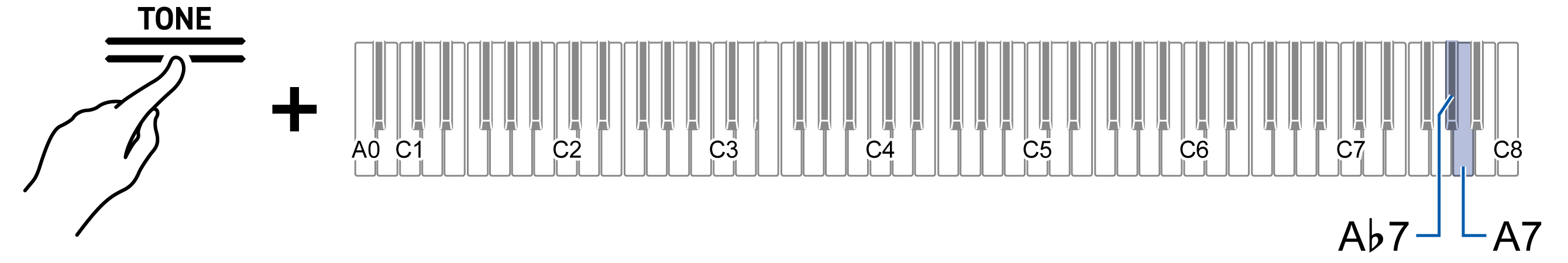

While holding down the “TONE” button, press the A}7 or A7 key.

Using the +/– Keys to Raise or Lower the Setting Value by 1 (operation type B)

Setting value: 0 (silence) to 42 (maximum volume)

A separator tone sounds when the set value becomes a multiple of 10.
Default value: 42

Key	Setting
A}7	Decreases Lower part volume by 1 level (–)
A7	Increases the volume of the Lower part by one level (+)
A}7 + A7	Resets the volume of the Lower part to the default setting

Fine-Tuning the Lower Part (Lower Detune)

Fine-tune the relative pitch of the Lower part to the Upper1 part.

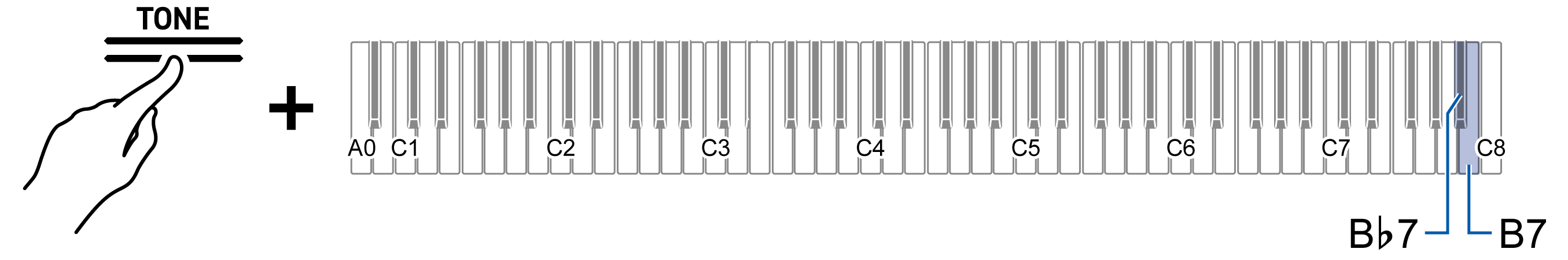

While holding down the “TONE” button, press the B}7 or B7 key.

Using the +/– Keys to Raise or Lower the Setting Value by 1 (operation type B)

Setting value: –99 cents to +99 cents (100 cents = 1 semitone)

A separator tone sounds when the set value becomes a multiple of 10.
Default value: 0 cents

Key	Setting
B}7	Decreases Lower part pitch by 1 cent (–)
B7	Increases Lower part pitch by 1 cent (+)
B}7 + B7	Sets the pitch of the Lower part to the same as the Upper1 part (default setting)

Enabling/Disabling Lower Part Damper Pedal Effect

Sets whether the Damper Pedal Effect is applied or not to the Lower part.

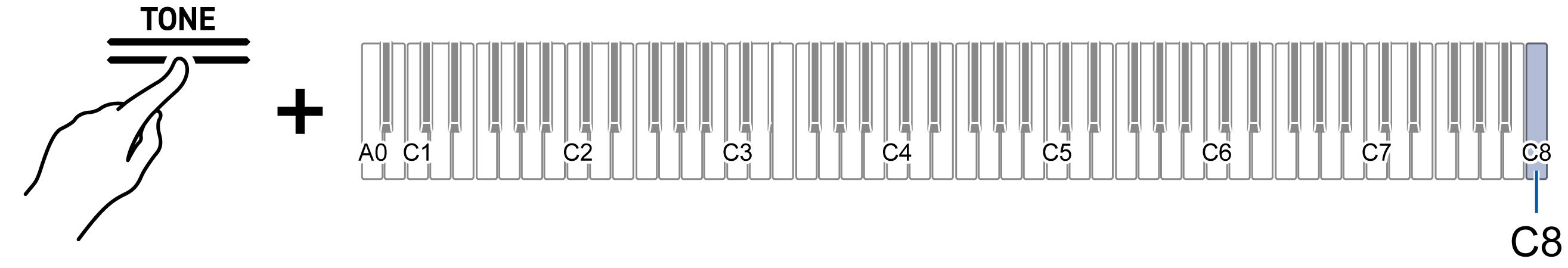

While holding down the “TONE” button, press the C8 key (Lower Damper).

Switching On/Off or Changing Setting Values Using a Single Key (operation type D)

Default value: Disabled

Setting Value	Setting Details
Disabled	Disables the Damper Pedal Effect.
Enabled	Enables the Damper Pedal Effect.
