Splitting the Keyboard into Left and Right for Two-Person Performance (Duet)

What is a Duet?

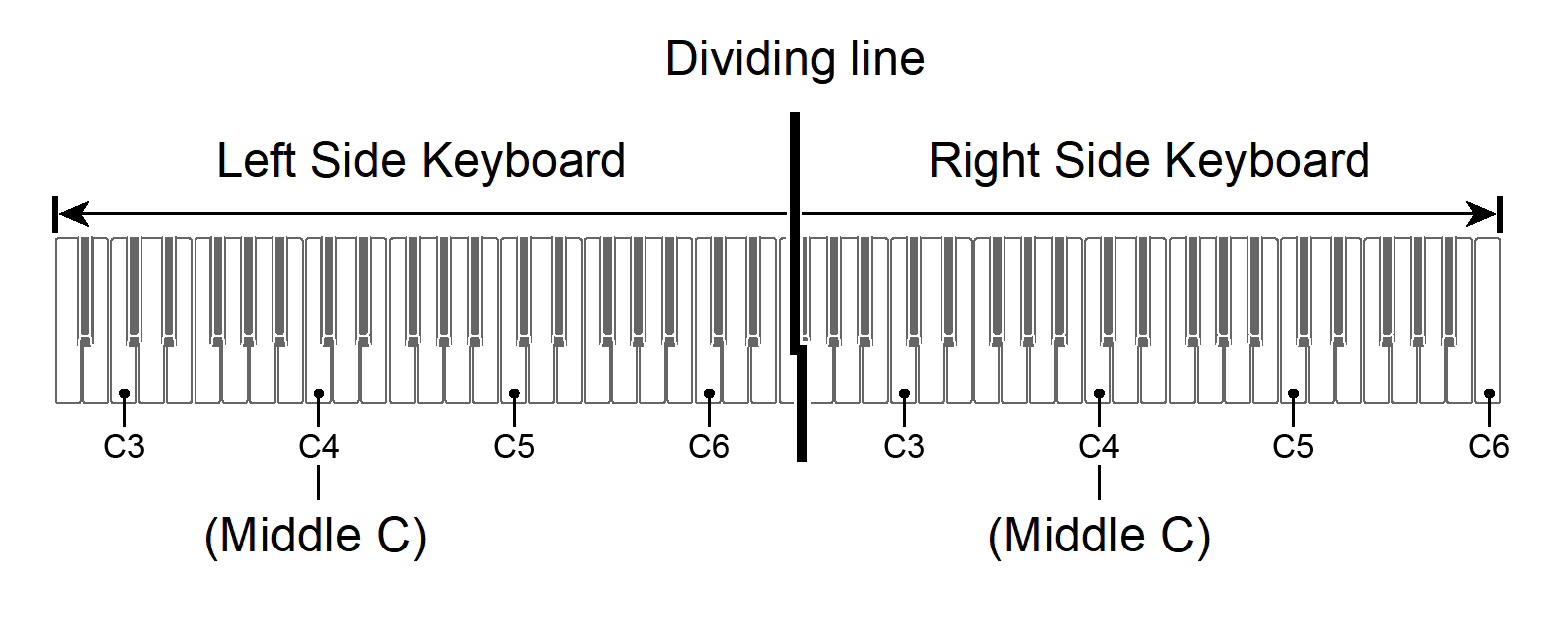

You can have the same pitch range on the right and left sides from the center of the keyboard. This can be used when a teacher plays a model performance on the left side and the student plays the same melody on the right side. In addition, you can change the pitch range of the left and right keys by octaves.

Pedal Operation for Duets (On/Pan)

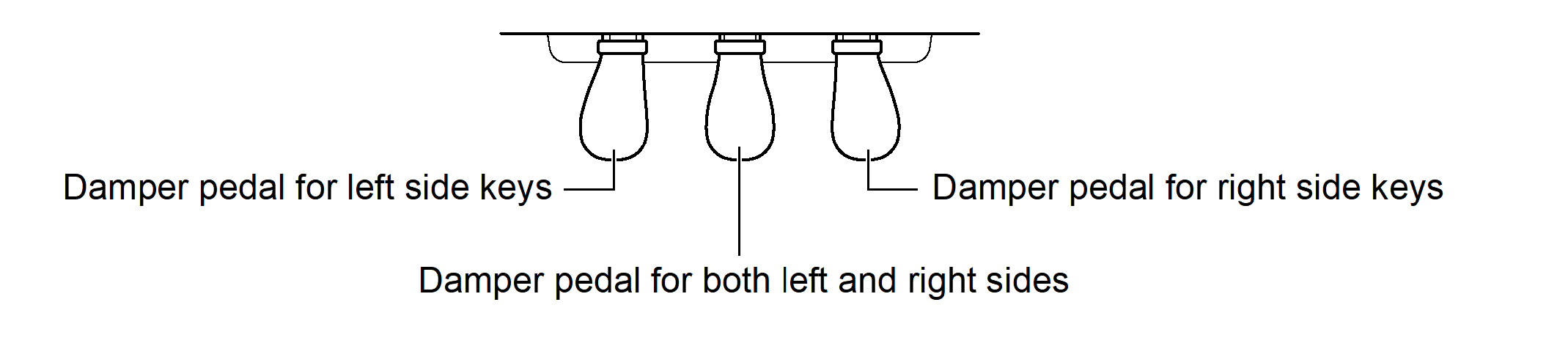

The pedals at both ends are damper pedals for the left and right keys respectively, and the center pedal is a damper pedal for both the left and right keys.

Using the Duet Function

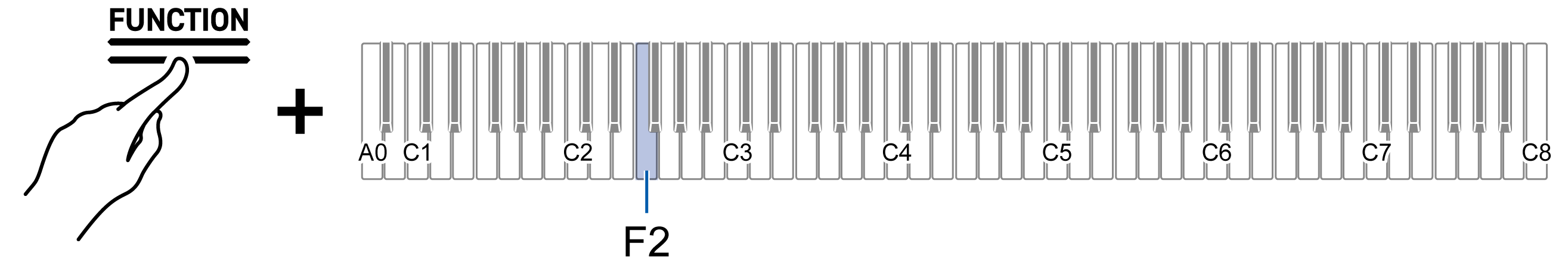

1. While holding down the “FUNCTION” button, press the F2 key (Duet Mode).

   Switching On/Off or Changing Setting Values Using a Single Key (operation type D)



• Default value: Off

Changing the Pitch Range

For both the left and right keyboard, the range can be changed from –2 to +2 octaves.

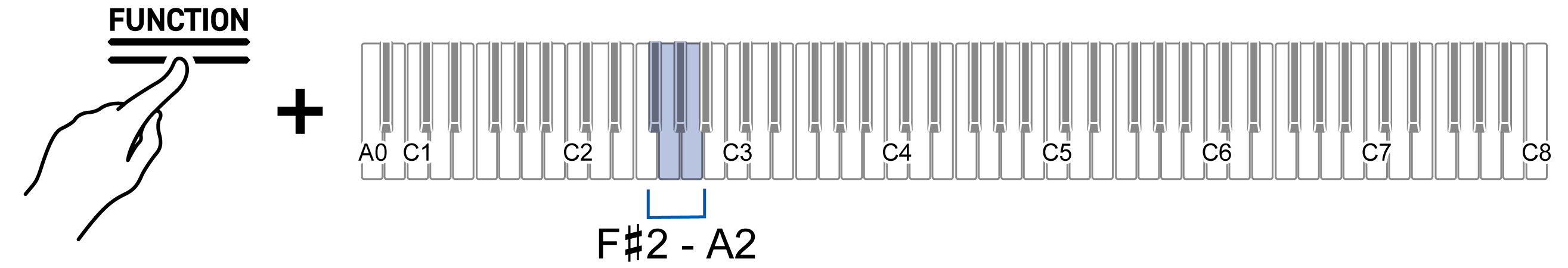

1. While holding down the “FUNCTION” button, press the corresponding key.

   Using the +/– Keys to Raise or Lower the Setting Value by 1 (operation type B)



Left-Side Keyboard Settings

• Setting value: –2 octaves to +2 octaves

• Default value: 0

Right Side Keyboard Setting

• Setting value: –2 octaves to +2 octaves

• Default value: 0

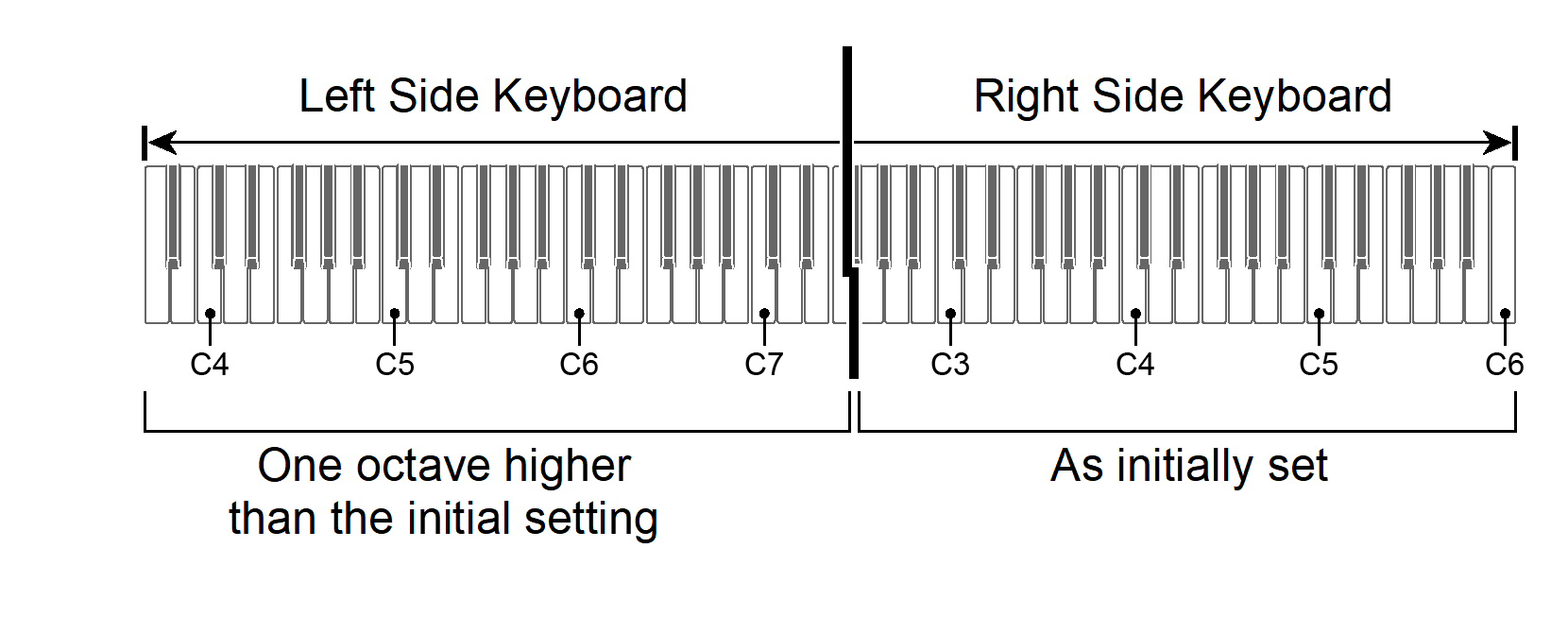

Example of Setting Range

When the G2 key is pressed once
