Adjusting the Sound Characteristics of the Acoustic Piano Presets (Acoustic Simulator)

The piano tones of this Digital Piano have built-in elements that characterize the sound of an acoustic piano. Each of the tone characteristics can be adjusted.

Setting String Resonance

When playing acoustic piano, the strings, which are the overtones of the keys you play, resonate. Adjust the resonance by setting [String Resonance].

Setting [String Resonance] to <Tone> or <Off>

While holding down the “SOUND MODE” button, press the C{3 or D3 key.

Selecting a Setting Value Directly (operation type A)

Default value: Tone

Keyboard	Setting Value	Setting Details
C{3	Tone	Automatically sets a value appropriate for the current tone.
D3	Off	Disables String Resonance.

Adjusting the Resonance by Changing the Value of the [String Resonance] Setting

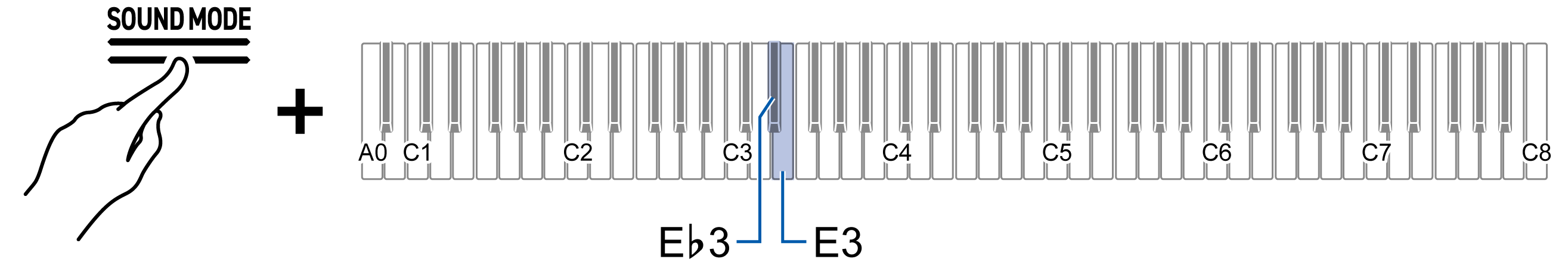

While holding down the “SOUND MODE” button, press the E}3 or E3 key.

Using the +/– Keys to Raise or Lower the Setting Value by 1 (operation type B)

Set value: Tone, Off, 1–10

The larger the number, the stronger the String Resonance effect.
Default value: Tone

Keyboard	Setting Details
E}3	Decreases the strength of the String Resonance by 1 (–)
E3	Increases the strength of the String Resonance by 1 (+)

Setting Damper Resonance

When pressing the damper pedal of an acoustic piano, the strings of all 88 keys are released, meaning all the strings that are harmonics of the played keys resonate. Adjust the degree of resonance by setting [Damper Resonance].

Setting [Damper Resonance] to <Tone> or <Off>

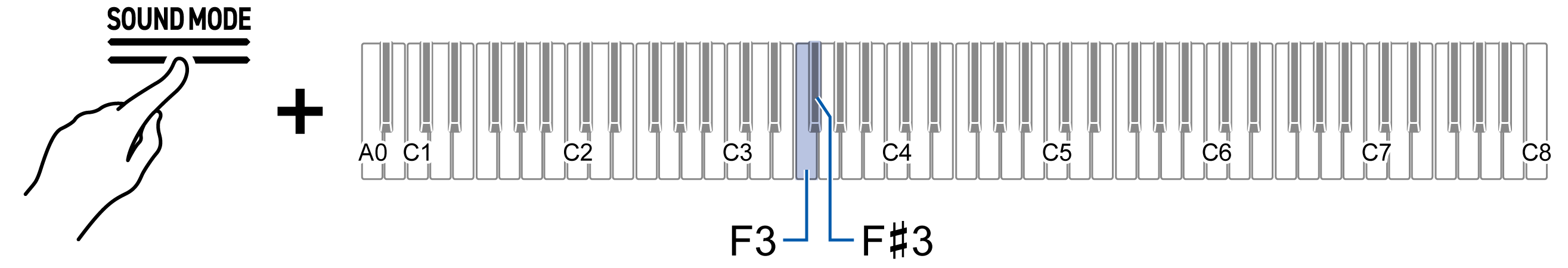

While holding down the “SOUND MODE” button, press the F3 or F{3 key.

Selecting a Setting Value Directly (operation type A)

Default value: Tone

Keyboard	Setting Value	Setting Details
F3	Tone	Automatically sets a value appropriate for the current tone.
F{3	Off	Disables Damper Resonance.

Adjusting the Resonance by Changing the Value of the [Damper Resonance] Setting

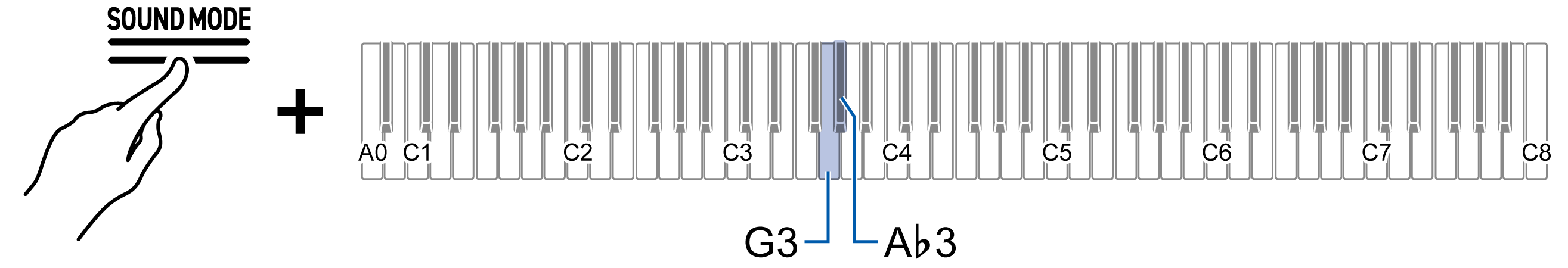

While holding down the “SOUND MODE” button, press the G3 or A}3 key.

Using the +/– Keys to Raise or Lower the Setting Value by 1 (operation type B)

Set value: Tone, Off, 1–10

The larger the number, the stronger the Damper Resonance effect.
Default value: Tone

Keyboard	Setting Details
G3	Lowers the strength of the Damper Resonance by 1 (–)
A}3	Increases the strength of the Damper Resonance by 1 (+)

Setting Damper Noise

When pressing the damper pedal on an acoustic piano, a small noise is produced when the damper moves away from the piano wire. Adjust the volume of the noise by setting [Damper Noise].

Setting [Damper Noise] to <Tone> or <Off>

While holding down the “SOUND MODE” button, press the A3 or B}3 key.

Selecting a Setting Value Directly (operation type A)

Default value: Tone

Keyboard	Setting Value	Setting Details
A3	Tone	Automatically sets a value appropriate for the current tone.
B}3	Off	Disables Damper Noise.

Adjusting the Noise Volume by Changing the Value of the [Damper Noise] Setting

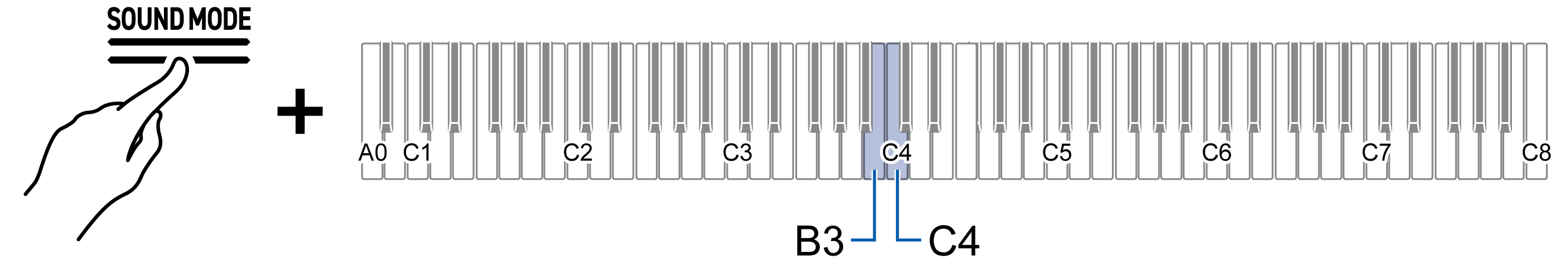

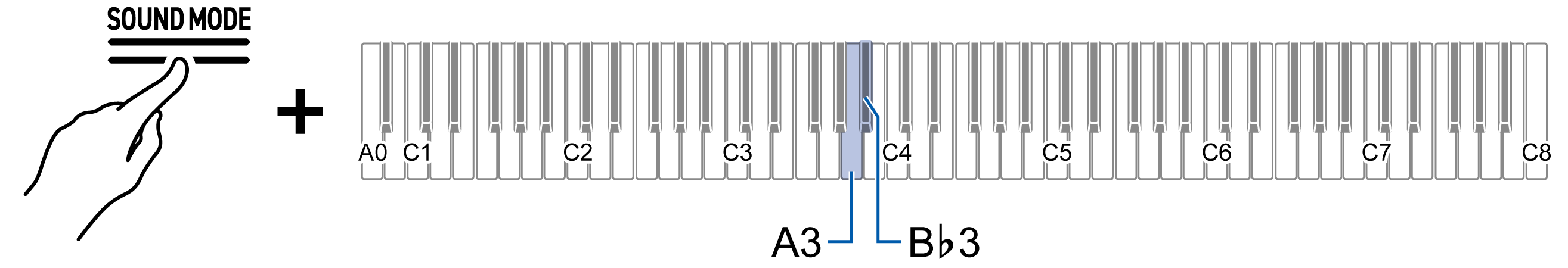

While holding down the “SOUND MODE” button, press the B3 or C4 key.

Using the +/– Keys to Raise or Lower the Setting Value by 1 (operation type B)

Set value: Tone, Off, 1–10

The higher the setting value, the louder the Damper Noise.
Default value: Tone

Keyboard	Setting Details
B3	Lowers the Damper Noise volume by 1 (–)
C4	Increases the Damper Noise volume by 1 (+)

Setting Open String Resonance

The high register of an acoustic piano has no damper and is always open string, which gives a unique resonance. Adjust the resonance by setting [Open String Resonance].

Setting [Open String Resonance] to <Tone> or <Off>

While holding down the “SOUND MODE” button, press the C{4 or D4 key.

Selecting a Setting Value Directly (operation type A)

Default value: Tone

Keyboard	Setting Value	Setting Details
C{4	Tone	Automatically sets a value appropriate for the current tone.
D4	Off	Disables Open String Resonance.

Adjusting the Resonance by Changing the Value of the [Open String Resonance] Setting

While holding down the “SOUND MODE” button, press the E}4 or E4 key.

Using the +/– Keys to Raise or Lower the Setting Value by 1 (operation type B)

Set value: Tone, Off, 1–10

The larger the setting value, the stronger the resonance due to Open String Resonance.
Default value: Tone

Keyboard	Setting Details
E}4	Reduces the strength of the Open String Resonance by 1 (–)
E4	Increases the strength of the Open String Resonance by 1 (+)

Setting the Aliquot Resonance

An aliquot is a resonator that is sometimes used in acoustic pianos. It uses the resonance of additional strings in the middle and upper registers. It is sometimes referred to as the Duplex Scale. Adjust its resonance by setting [Aliquot Resonance].

Setting [Aliquot Resonance] to <Tone> or <Off>

While holding down the “SOUND MODE” button, press the F4 or F{4 key.

Selecting a Setting Value Directly (operation type A)

Default value: Tone

Keyboard	Setting Value	Setting Details
F4	Tone	Automatically sets a value appropriate for the current tone.
F{4	Off	Disables Aliquot Resonance.

Adjusting the Resonance by Changing the Value of the [Aliquot Resonance] Setting

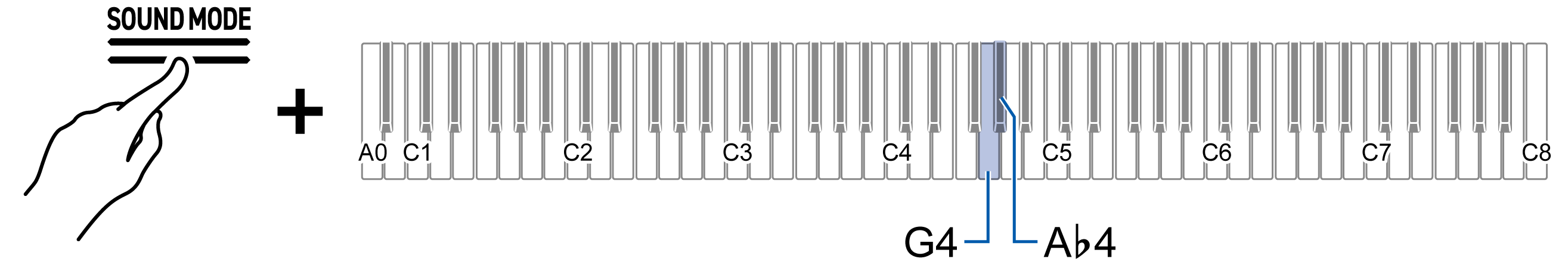

While holding down the “SOUND MODE” button, press the G4 or A}4 key.

Using the +/– Keys to Raise or Lower the Setting Value by 1 (operation type B)

Set value: Tone, Off, 1–10

1 to 10: The higher the value, the stronger the Aliquot Resonance.
Default value: Tone

Keyboard	Setting Details
G4	Reduces the Aliquot Resonance strength by 1 (–)
A}4	Increases the Aliquot Resonance strength by 1 (+)

Setting Pedal Action Noise

Using the pedals of an acoustic piano produces a mechanical sound (noise). Adjust the volume of this noise by setting [Pedal Action Noise].

Setting [Pedal Action Noise] to <Tone> or <Off>

While holding down the “SOUND MODE” button, press the A4 or B}4 key.

Selecting a Setting Value Directly (operation type A)

Default value: Tone

Keyboard	Setting Value	Setting Details
A4	Tone	Automatically sets a value appropriate for the current tone.
B}4	Off	No pedal action noise will be produced.

Adjusting the Noise Level by Changing the Value of the [Pedal Action Noise] Setting

While holding down the “SOUND MODE” button, press the B4 or C5 key.

Using the +/– Keys to Raise or Lower the Setting Value by 1 (operation type B)

Setting value: Tone, Off, 1–10

The higher the setting value, the louder the pedal action noise.
Default value: Tone

Keyboard	Setting Details
B4	Reduces the Pedal Action Noise volume by 1 (–)
C5	Increases the Pedal Action Noise volume by 1 (+)

Setting Key On Action Noise

When playing the keys very softly on an acoustic piano, the hammers do not reach the strings and only the mechanical action (noise) of the piano is heard. Adjust the volume of the noise by setting [Key On Action Noise].

Setting [Key On Action Noise] to <Tone> or <Off>

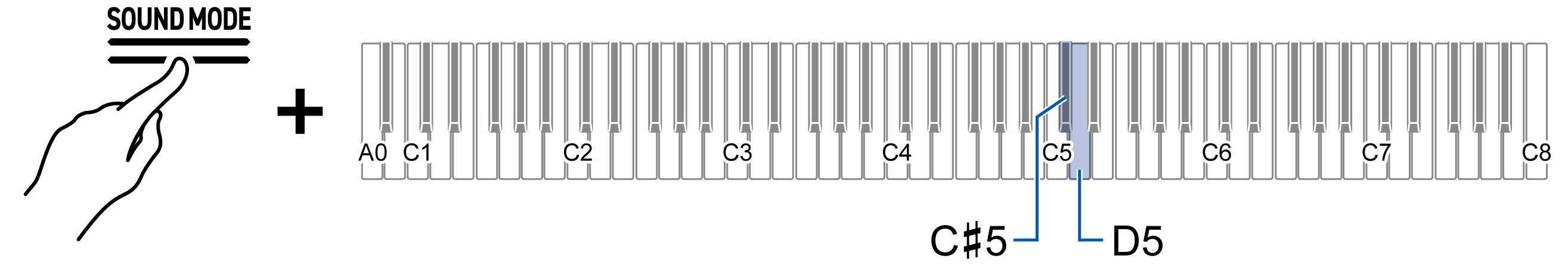

While holding down the “SOUND MODE” button, press the C{5 or D5 key.

Selecting a Setting Value Directly (operation type A)

Default value: Tone

Keyboard	Setting Value	Setting Details
C{5	Tone	Automatically sets a value appropriate for the current tone.
D5	Off	No Key On Action Noise made.

Adjusting the Noise Level by Changing the Value of the [Key On Action Noise] Setting

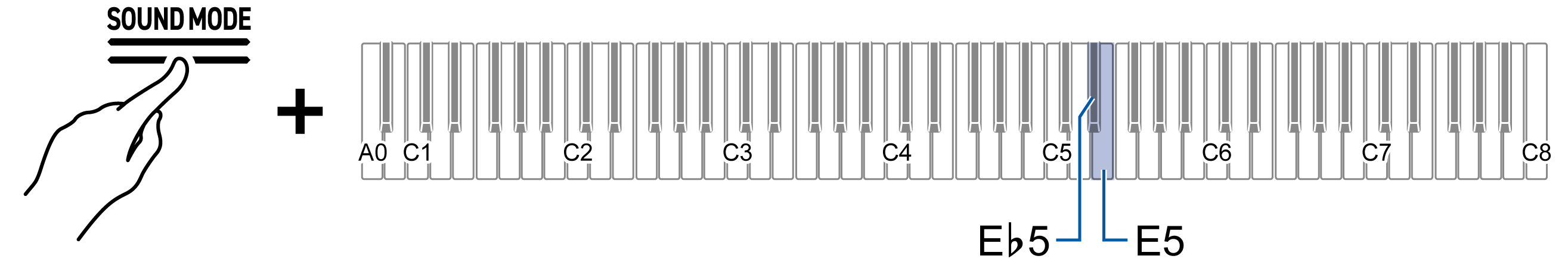

While holding down the “SOUND MODE” button, press the E}5 or E5 key.

Using the +/– Keys to Raise or Lower the Setting Value by 1 (operation type B)

Setting value: Tone, Off, 1–10

The higher the setting value, the louder the Key On Action Noise.
Default value: Tone

Keyboard	Setting Details
E}5	Decreases the Key On Action Noise volume by 1 (–)
E5	Increases the of Key On Action Noise volume by 1 (+)

Setting Key Off Action Noise

When a finger is removed from the keyboard of an acoustic piano, this generates a sound corresponding to the mechanical piano action (noise). Adjust the volume of the noise by setting [Key Off Action Noise].

Setting [Key Off Action Noise] to <Tone> or <Off>

While holding down the “SOUND MODE” button, press the F5 or F{5 key.

Selecting a Setting Value Directly (operation type A)

Default value: Tone

Keyboard	Setting Value	Setting Details
F5	Tone	Automatically sets a value appropriate for the current tone.
F{5	Off	No Key Off Action Noise is made.

Adjusting the Noise Volume by Changing the Value of the [Key Off Action Noise] Setting

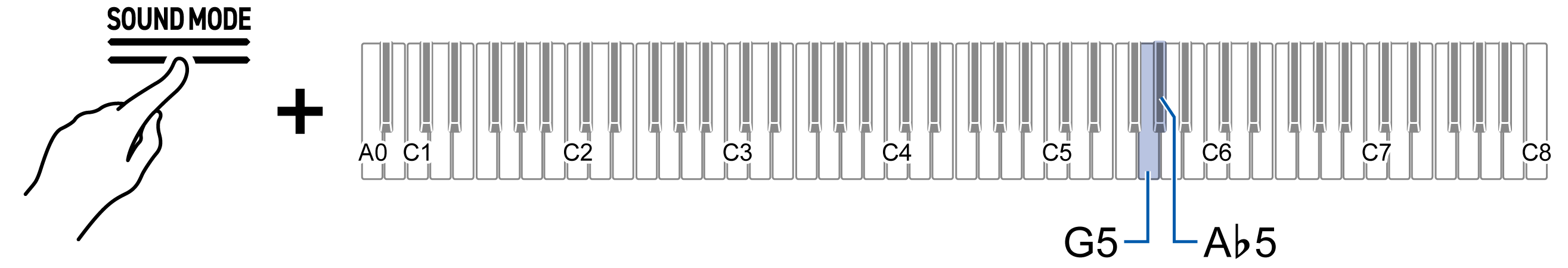

While holding down the “SOUND MODE” button, press the G5 or A}5 key.

Using the +/– Keys to Raise or Lower the Setting Value by 1 (operation type B)

Setting value: Tone, Off, 1–10

The higher the setting value, the louder the Key Off Action Noise.
Default value: Tone

Keyboard	Setting Details
G5	Decreases the Key Off Action Noise volume by 1 (–)
A}5	Increases the Key Off Action Noise volume by 1 (+)

Setting Lid Simulator

The sound of a grand piano changes depending on how open the lid is. With this Digital Piano, when you adjust the opening of the lid using the [Lid Simulator], the change in sound is simulated using digital processing. (The Lid Simulator is unrelated to the top panel opening/closing mechanism of the housing.)

While holding down the “SOUND MODE” button, press any one of the A5 to C{6 keys.

Selecting a Setting Value Directly (operation type A)

Default value: Tone

Keyboard	Setting Value	Setting Details
A5	Tone	Automatically sets a value appropriate for the current tone.
B}5	Close	The lid is closed.
B5	Semi	The lid is slightly open.
C6	Full	The lid is fully open.
C{6	Remove	The lid is removed.
