Changing the Upper2 Part Settings

Adjusting the Upper2 Part Volume

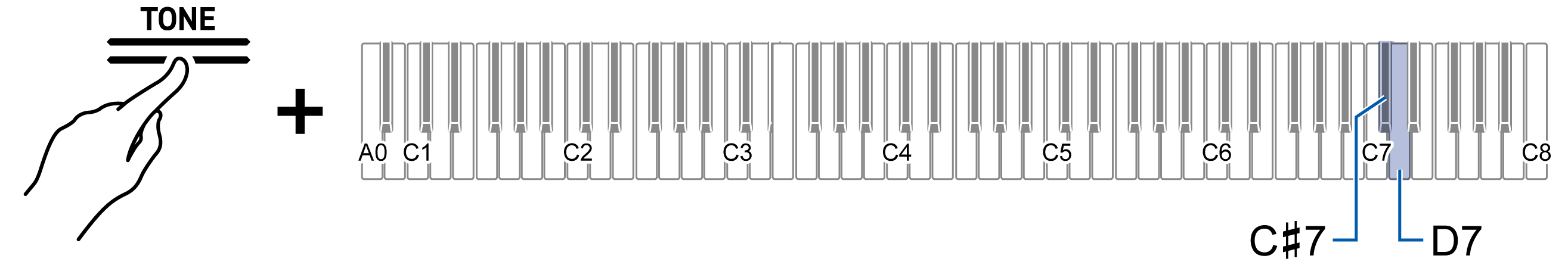

1. While holding down the “TONE” button, press the C{7 or D7 key.

   Using the +/– Keys to Raise or Lower the Setting Value by 1 (operation type B)



• Setting value: 0 (silence) to 42 (maximum volume)

  A separator tone sounds when the set value becomes a multiple of 10.

• Default value: 26

Fine-Tuning the Upper2 Part (Upper2 Detune)

Fine-tune the relative pitch of the Upper2 part to the Upper1 part.

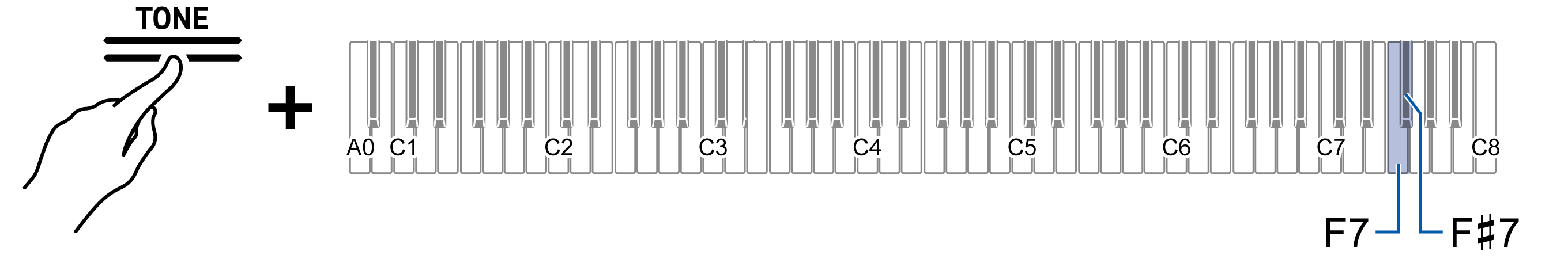

1. While holding down the “TONE” button, press the F7 or F{7 key.

   Using the +/– Keys to Raise or Lower the Setting Value by 1 (operation type B)



• Setting value: –99 cents to +99 cents (100 cents = 1 semitone)

  A separator tone sounds when the set value becomes a multiple of 10.

• Default value: 0 cents

Enabling/Disabling Upper2 Part Damper Pedal Effect

Sets whether the Damper Pedal Effect is applied or not to the Upper2 part.

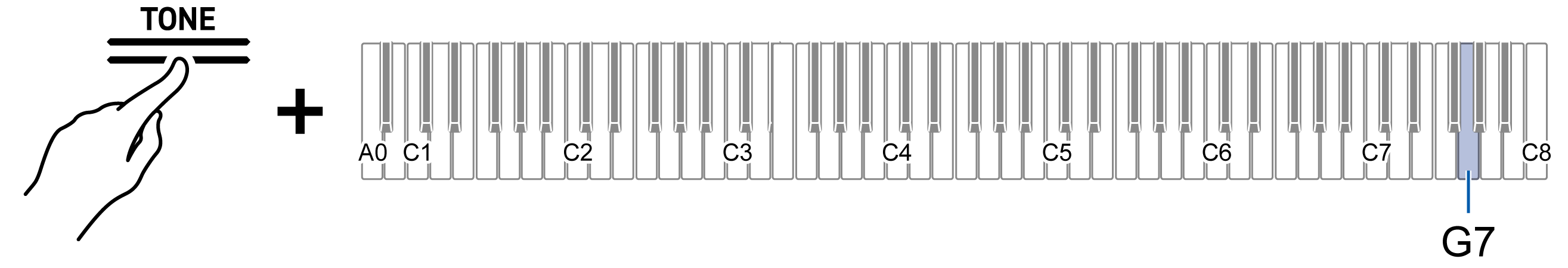

1. While holding down the “TONE” button, press the G7 key (Upper2 Damper).

   Switching On/Off or Changing Setting Values Using a Single Key (operation type D)



• Default value: Enabled
