How the Visual Information Bar Displays for Various Settings

When a touch button is held down and one key is pressed in succession to switch to a different setting value, the Visual Information Bar blinks according to the current setting value. The blinking light indicating the setting value moves from the left side to the right.

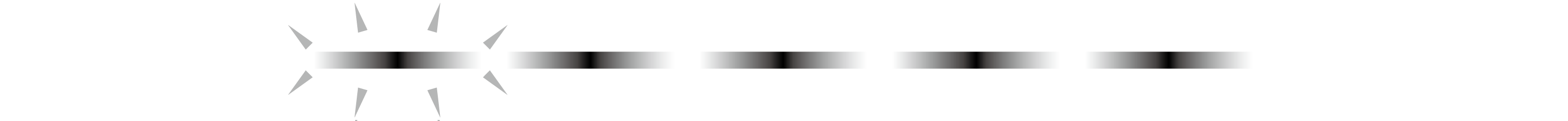

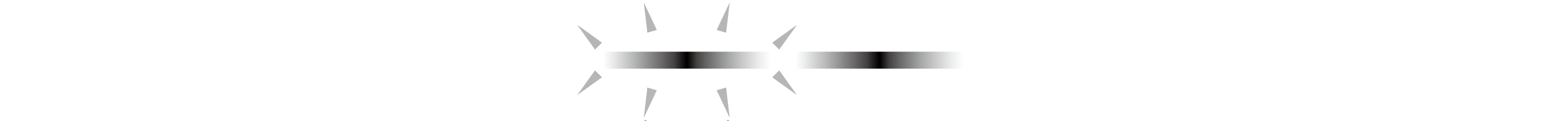

Setting Value	Display Pattern
2 values

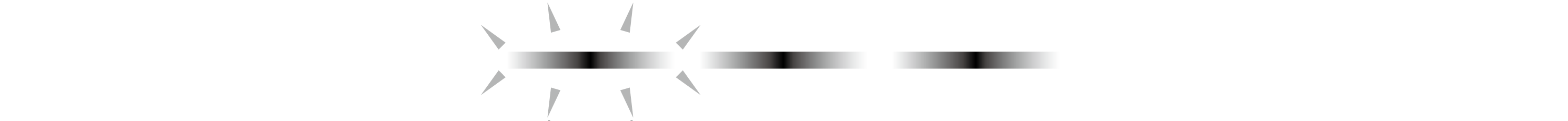

3 values

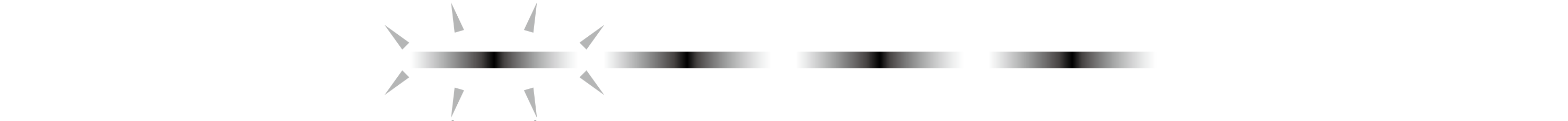

4 values
5 values

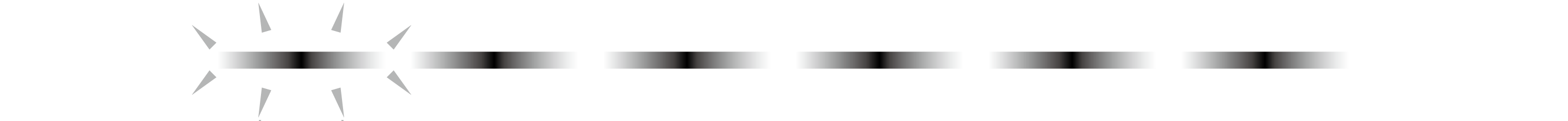

6 values

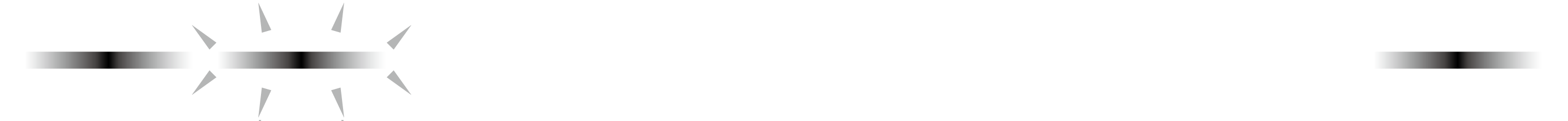

More than 7 values	The leftmost (min. value) and rightmost (max. value) indicators in the Visual Information Bar light up and the approximate position of the set value blinks. On the default value, the indicator blinks rapidly.

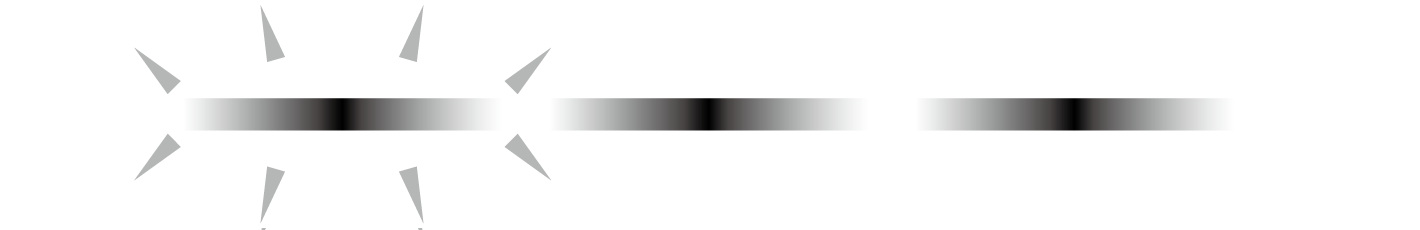

Lighting Example (when there are two options)

Setting Value Example	Visual Information Bar Display

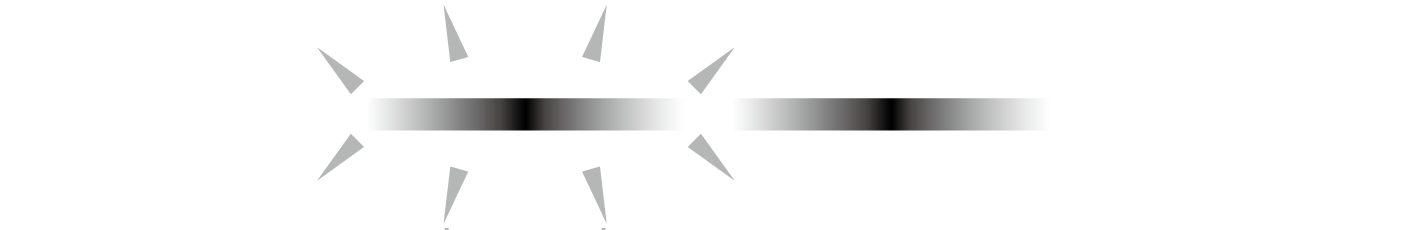

Off

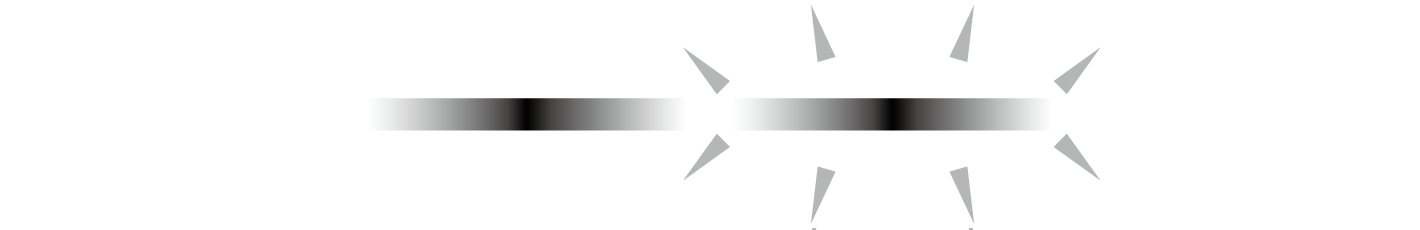

On

Lighting Example (when there are three options)

Setting Value Example	Visual Information Bar Display
Value 1

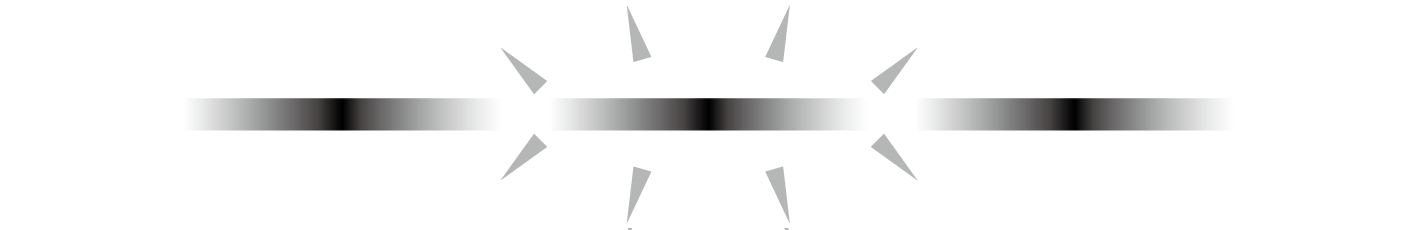

Value 2

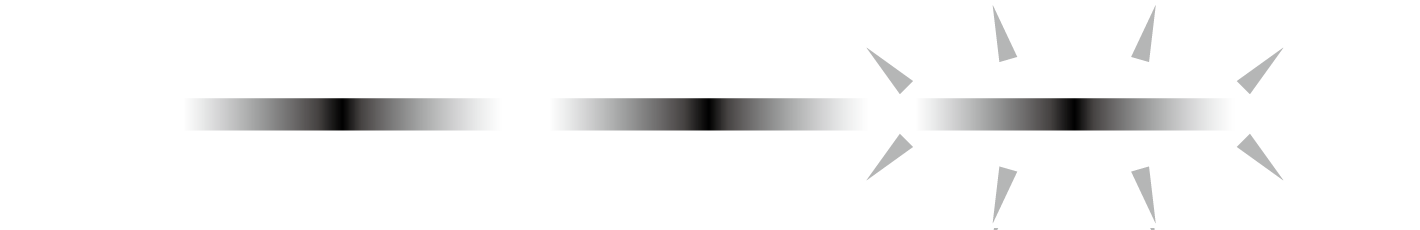

Value 3
