Changing the Lower Part Settings

Adjusting the Lower Part Volume

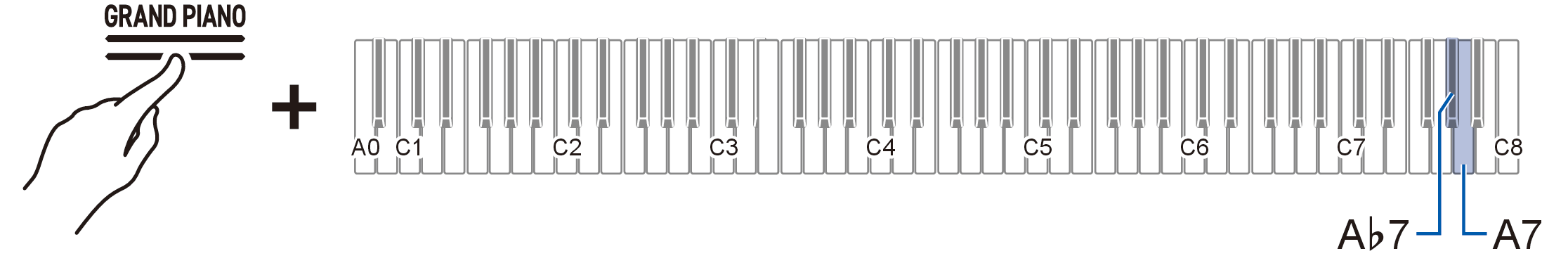

While holding down the “GRAND PIANO” button, press the A}7 or A7 key.

Using the +/– Keys to Raise or Lower the Setting Value by 1 (operation type B)

Setting value: 0 (silence) to 42 (maximum volume)

A separator tone sounds when the set value becomes a multiple of 10.
Default value: 42

Key	Setting
A}7	Lowers the Lower part volume by 1 (–)
A7	Raises the Lower part volume by 1 (+)
A}7 + A7	Resets the Lower part volume to the default setting

Fine-Tuning the Lower Part (LowerDetune)

Fine-tune the relative pitch of the Upper1 part to the Lower part.

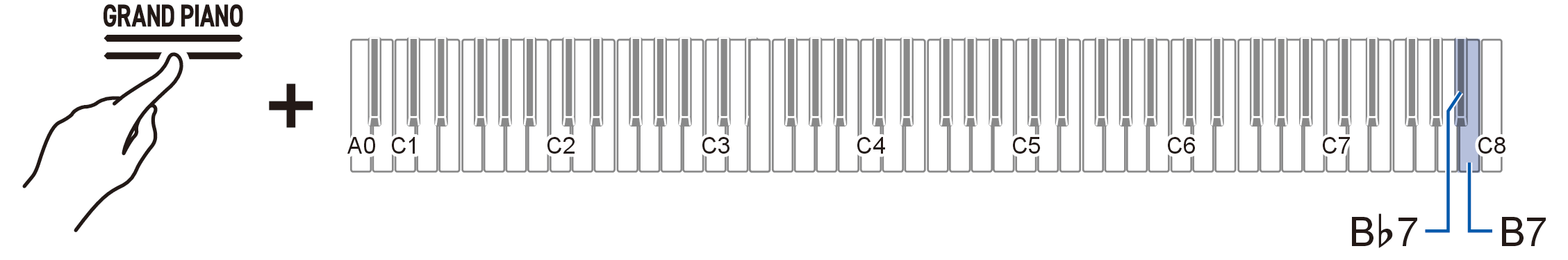

While holding down the “GRAND PIANO” button, press the B}7 or B7 key.

Using the +/– Keys to Raise or Lower the Setting Value by 1 (operation type B)

Setting value: –99 cents to +99 cents (100 cents = 1 semitone)

A separator tone sounds when the set value becomes a multiple of 10.
Default value: 0 cents

Key	Setting
B}7	Lowers the Lower part pitch by 1 cent (–)
B7	Raises the Lower part pitch 1 cent (+)
B}7 + B7	Sets the pitch of the Lower part to the same as the Upper1 part (default setting)

Enabling/Disabling Lower Part Damper Pedal Effect

Sets whether the Lower part damper pedal effect is applied or not.

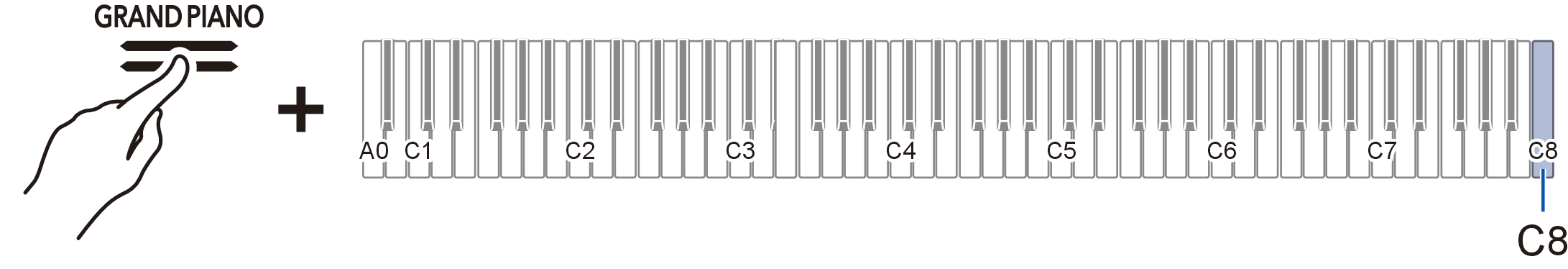

While holding down the “GRAND PIANO” button, press the C8 key (Lower Damper).

Switching On/Off or Changing Setting Values Using a Single Key (operation type D)

Default value: Disabled

Setting Value	Setting Details
Disabled	Disables the Damper Pedal effect.
Enabled	Enables the Damper Pedal effect.
