Playing MIDI Data

Switching to MIDI Recorder

The default setting for [RePlayer/Recorder] on this Digital Piano is <MIDI Recorder>.

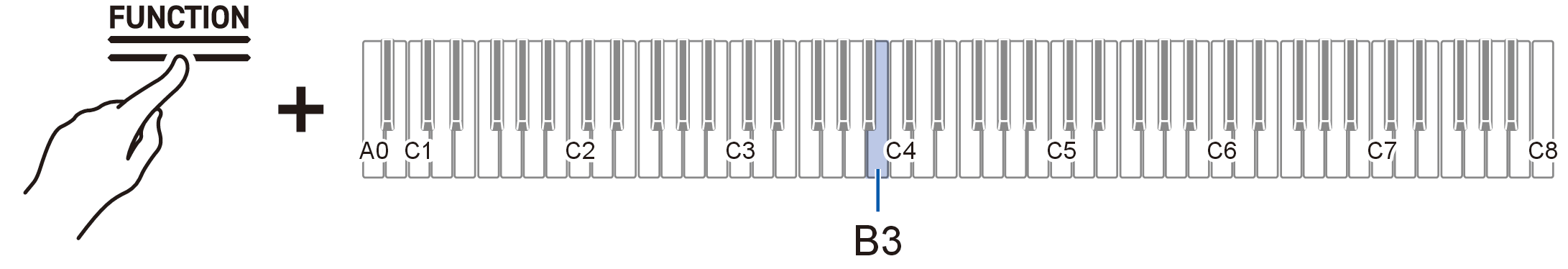

1. While holding down the “FUNCTION” button, press the B3 key (MIDI Recorder).

   Selecting a Setting Value Directly (operation type A)



   • The Visual Information Bar, second from left, will blink.

Selecting Songs for Playback from the Music Library

Operate with <MIDI Recorder>.

Switching to MIDI Recorder

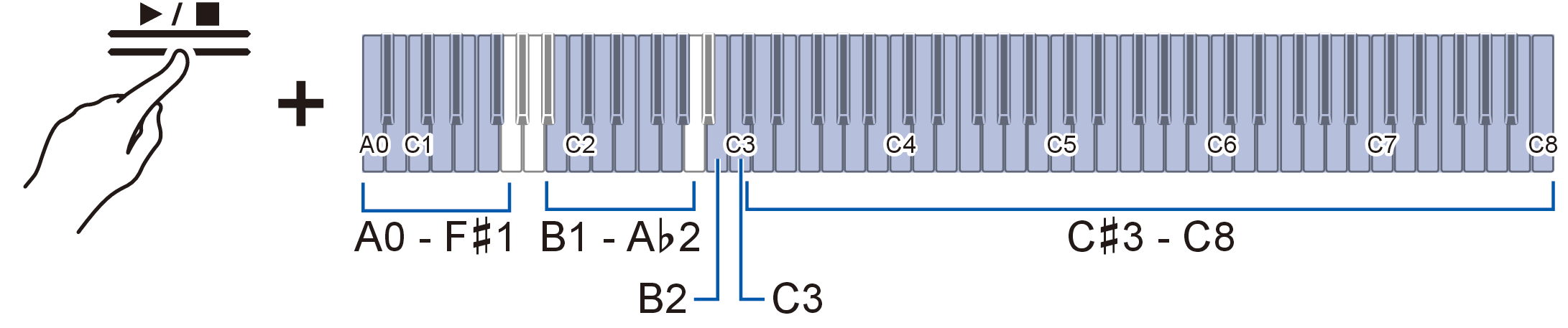

1. Hold down the “a” button and use the corresponding key to select a song. Once you have made your selection, release the “a” button.

   • See “Music Library List” for song listings.



   • Select a song assigned to a key (Built-in Songs: C{3 to C8 keys, User Songs: B1 to A}2 keys)

     Selecting a Setting Value Directly (operation type A)

   • Specify song numbers (Built-in Songs: 1 to 60, User Songs: 61 to 70) using the A0 to F{1 keys

     Inputting Setting Values Using the Keys 0 to 9 (operation type C)

   • Use keys B2/C3 (Song Select – / Song Select +) to specify previous/next song (Built-in Songs, User Songs, MIDI Recorder Songs)

     Using the +/– Keys to Raise or Lower the Setting Value by 1 (operation type B)

2. To start playback, touch the “a” button.

   • To stop playback in the middle of a song, touch the “a” button again.

   • The beat indicator lights up in time with the beat of the song (left side for the first beat, right side for the remaining beats).

   • Playback ends when the end of the song is reached.

Selecting a MIDI Recorder Song for Playback

Operate with <MIDI Recorder>.

Switching to MIDI Recorder

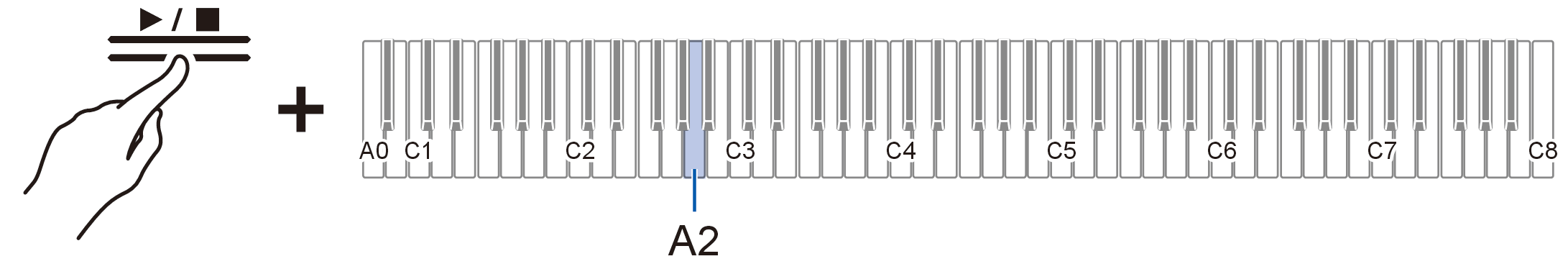

1. While holding down the “a” button, press the A2 key (MIDI Recorder Song).

   Selecting a Setting Value Directly (operation type A)



2. To start playing a song, touch the “a” button.

   • To stop playback in the middle of a song, touch the “a” button again.

   • Playback ends when the end of the song is reached.

Selecting a USB Flash Drive Song for Playback

Attach the USB flash drive containing the songs to the USB Type A port on the Digital Piano.

For information on using USB flash drives, see “Inserting/Removing a USB Flash Drive from the Digital Piano”.

Operate with <MIDI Recorder>.

Switching to MIDI Recorder

1. While holding down the “a” button, press the B}2 key (USB Flash Drive Song).

   Switching On/Off or Changing Setting Values Using a Single Key (operation type D)



   • Default value: Off

   Setting Value	Setting Details
   Off	Songs stored in the Digital Piano (Music Library songs, MIDI Recorder Song) are eligible for song selection
   On	Songs stored on a USB flash drive (USB Flash Drive Songs) are eligible for song selection

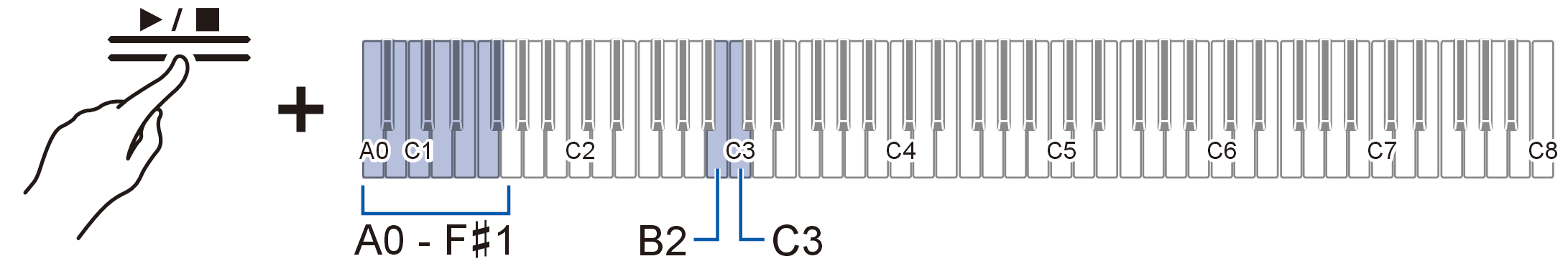

2. Hold down the “a” button and use the corresponding key to select a song. After selecting a song, press the “a” button.



   • Specify song numbers 0 to 99 using the A0 to F{1 keys (numbers 0 to 99 are automatically assigned to each file in ascending order of the file name).

     Inputting Setting Values Using the Keys 0 to 9 (operation type C)

   • Use keys B2/C3 (Song Select – / Song Select +) to specify previous/next song number

     Using the +/– Keys to Raise or Lower the Setting Value by 1 (operation type B)

3. To start playback, touch the “a” button.

   • To stop playback in the middle of a song, touch the “a” button again.

   • The beat indicator lights up in time with the beat of the song (left side for the first beat, right side for the remaining beats).

   • Playback ends when the end of the song is reached.

Changing the Tempo

Select the song to be played before changing the setting.

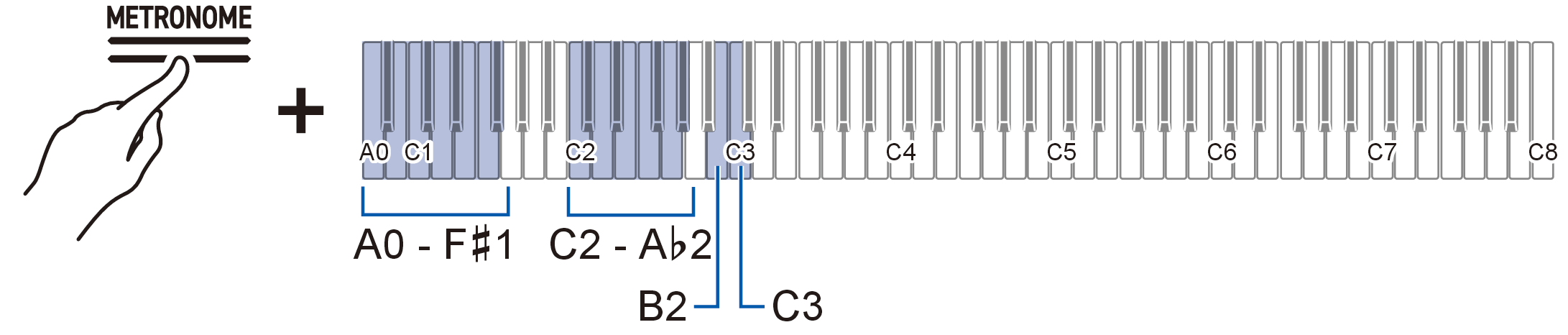

1. While holding down the “METRONOME” button, press the corresponding key.

   • Sets the tempo in the range of 20 to 255 (beats per minute).



     Entering Tempo as a Number

     Raising or Lowering the Tempo Value by 1

     Setting the Tempo from a Tempo Marking

2. To start playback, touch the “a” button.

Selecting a Playback Part

You can mute the right-hand or left-hand part of a song and practice playing it yourself.

• Select the song to be played before changing the setting.

• Set the tempo as needed.

  For more information, see “Changing the Tempo”.

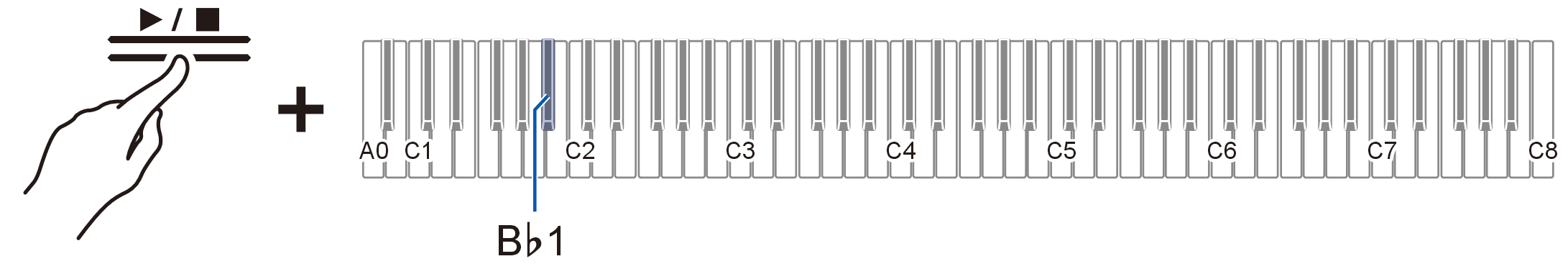

1. While holding down the “a” button, press the B}1 key (Song Playback Part selection (LR/L/R)).

   Switching On/Off or Changing Setting Values Using a Single Key (operation type D)

   • The “L” and “R” track indicators light up respectively.



   Track Indicator	Setting Details
   Only L lights up	Plays the left-hand part and mutes the right-hand part.
   Only R lights up	Plays the right-hand part and mutes the left-hand part.
   Both L & R light up	Both left and right parts are played back.

2. To start playback, touch the “a” button.
