Adjusting the Timing of Mute During Key Release (Key Off Response)

On a grand piano, when you release a key, the damper comes down on the strings and the sound stops. The Key Off Response function digitally simulates the timing of when a note stops sounding based on movement during key release. This function allows the next note to be sounded without having to fully return to the key when hitting the same note in succession, as on a grand piano, and enables detailed touch expression, such as the way notes are connected and cut off, allowing the player to perform with a natural feel. Adjusts the timing from when the key is released until the sound mutes.

Adjusting Key Off Response

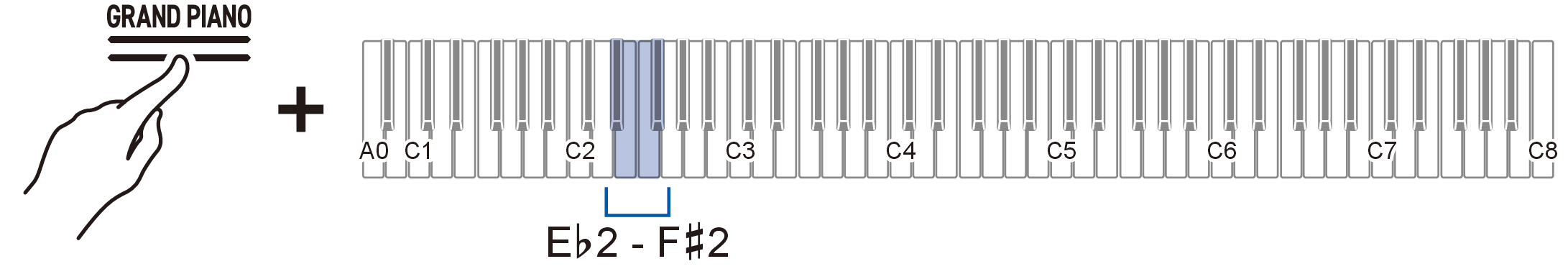

  1. While holding down the “GRAND PIANO” button, press one of the E}2 to F{2 keys.

    Selecting a Setting Value Directly (operation type A)

    Figure

Key

Setting Value

Setting Details

E}2

Tone

The optimum value for the current tone is set.

E2

Fast

The timing until the note mutes after releasing a key is faster.

F2

Normal

Standard setting.

F{2

Slow

The timing until the note mutes after releasing a key is later.
