Shifting by Octaves (Octave Shift)

The pitch of the sound can be raised or lowered in octaves.

Each part (Upper1 and Upper2) can be set independently when using [Layer].

For more information about layers and their respective parts, see “Layering Two Tones (Layer)”.

Shifting Upper1 Part by an Octave

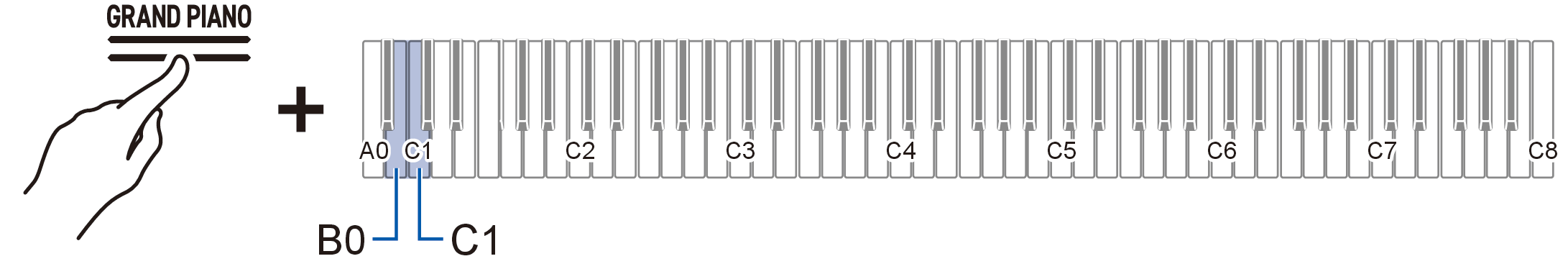

  1. While holding down the “GRAND PIANO” button, press the B0 or C1 key.

    Using the +/– Keys to Raise or Lower the Setting Value by 1 (operation type B)

    Figure

Key

Setting

B0

Lowers the pitch of the Upper1 part by one octave (–)

C1

Raises the pitch of the Upper1 part by one octave (+)

B0 + C1

Resets the Upper1 part pitch to the default setting

Shifting Upper2 Part by an Octave

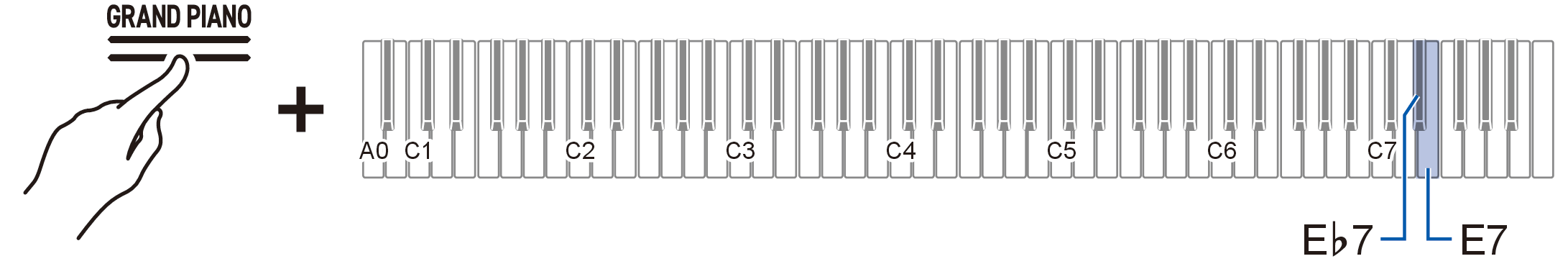

  1. While holding down the “GRAND PIANO” button, press the E}7 or E7 key.

    Using the +/– Keys to Raise or Lower the Setting Value by 1 (operation type B)

    Figure

Key

Setting

E}7

Lowers the pitch of the Upper2 part by one octave (–)

E7

Raises the pitch of the Upper2 part by one octave (+)

E}7 + E7

Resets the Upper2 part pitch to the default setting
