Operations with a USB Flash Drive

Saving MIDI Recorder Songs to a USB Flash Drive

1. Insert the USB flash drive into the USB Type A port of the Digital Piano.

2. To save in SMF format (.MID), do the following:

   1. Switch the Digital Piano to <MIDI Recorder>.

      Switching to MIDI Recorder

   2. Select the User Song number that corresponds to the save destination folder (61-70).

      While holding down the “a” button, press one of the A0 to F{1 keys.

      Inputting Setting Values Using the Keys 0 to 9 (operation type C)

3. Press and hold the “FUNCTION” button.

   Putting in Standby Mode, and Executing on Next Key Press (operation type E)

   • Do not release the “FUNCTION” button until step 5.

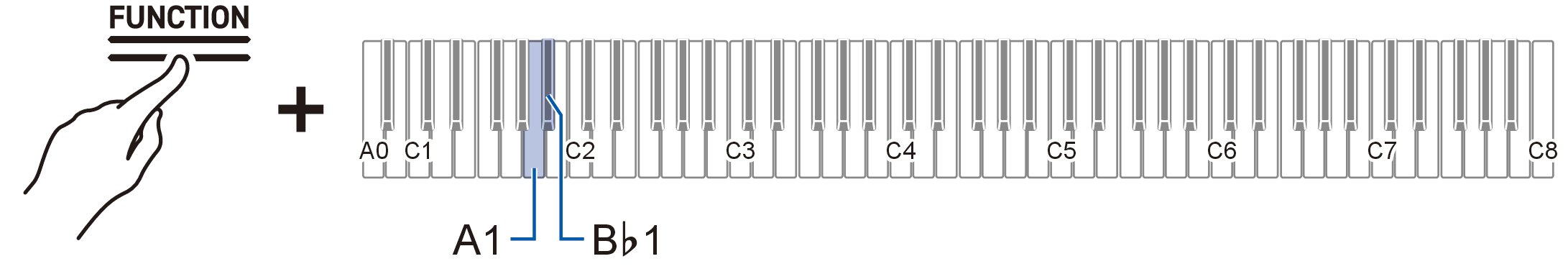

4. Press either the A1 or B}1 key.

   • The Hall Simulator/Reverb Indicator blinks and enters save standby.



   Key	Setting	Storage Location
   A1	Saves in SMF format (.MID)	Specified folder in MUSICLIB folder (61-70)
   B}1	Saves in CASIO’s proprietary format (.MRF)	MIDIREC Folder

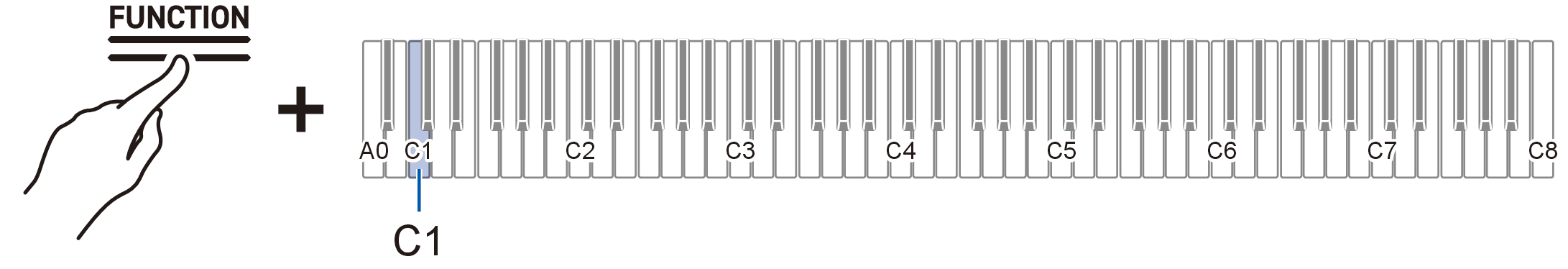

5. Press key C1 (Execute).

   • Save is executed. During processing, the indicators above the “SOUND MODE” and “a” buttons light up sequentially, and the Visual Information Bar will indicate that it is in progress (lighting sequentially from the left).



6. Once saving begins, release the “FUNCTION” button.

   • When saving is complete, the indicator returns to its original state.

Loading USB Flash Drive Files into the Digital Piano

1. Copy the data to be loaded into the Digital Piano to the respective folders on the USB flash drive.

   • Only one song from each folder can be loaded. When there are multiple files, the first file in the order of the file naming is loaded.

   Data Type	Folder
   User songs (CMF, MID)	61-70 in MUSICLIB folder
   MIDI Recorder songs (MRF)	MIDIREC Folder

2. Insert the USB flash drive into the USB Type A port of the Digital Piano.

3. Switch the Digital Piano to <MIDI Recorder>.

   Switching to MIDI Recorder

4. Select the User Song (song numbers 61-70) or MIDI Recorder Song that corresponds to the data to be loaded.

   • To select a User Song, hold down the “a” button and press one of the A0 to F{1 keys.

     Inputting Setting Values Using the Keys 0 to 9 (operation type C)

   • To select a MIDI Recorder song, hold down the “a” button and press the A2 key.

     Selecting a Setting Value Directly (operation type A)

5. Press and hold the “FUNCTION” button.

   Putting in Standby Mode, and Executing on Next Key Press (operation type E)

   • Do not release the “FUNCTION” button until step 7.

6. Press the A}1 key (Load SMF/MRF).

   • The surround indicator will blink and enter load standby mode.



7. Press key C1 (Execute).

   • Loading is executed. During processing, the indicators above the “SOUND MODE” and “a” buttons light up sequentially, and the Visual Information Bar will indicate that it is in progress (lighting sequentially from the left).



8. Once loading begins, release the “FUNCTION” button.

   • When loading is complete, the indicator returns to its original state.

Deleting USB Flash Drive Files

Deletes the following data from the USB flash drive

• Songs stored in folders 61 to 70 in the MUSICLIB folder

• RECSONG.MRF stored in the MIDIREC folder

• TAKE**.WAV (**=01 - 99) or TAKE**.MP3 (**=01 - 99) audio song data stored in the AUDIOREC folder

1. Insert the USB flash drive into the USB Type A port of the Digital Piano.

2. Select the data to be deleted.

   • To delete a User Song or MIDI Recorder Song:

     1. Switch the Digital Piano to <MIDI Recorder>.

        Switching to MIDI Recorder

     2. Select the User Song number or MIDI Recorder Song that corresponds to the data to be deleted.

        To select a User Song, hold down the “a” button and press one of the A0 to F{1 keys.

        Inputting Setting Values Using the Keys 0 to 9 (operation type C)

        To select a MIDI Recorder Song, hold down the “a” button and press the A2 key.

        Selecting a Setting Value Directly (operation type A)

   • To delete audio data:

     1. Switch the Digital Piano to <Audio Recorder>.

        Switching to Audio Recorder

     2. Specify the TAKE**.WAV or TAKE**.MP3 (**=01 - 99) audio data to delete.

        While holding down the “a” button, press one of the A0 to F{1 keys.

        Inputting Setting Values Using the Keys 0 to 9 (operation type C)

3. Press and hold the “FUNCTION” button.

   Putting in Standby Mode, and Executing on Next Key Press (operation type E)

   • Do not release the “FUNCTION” button until step 5.

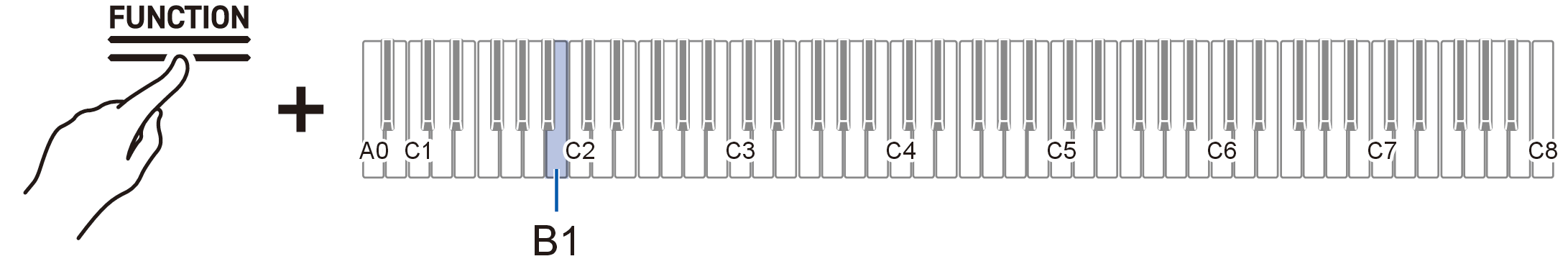

4. Press the B1 key (Delete SMF/MRF/Audio).

   • The left side of the beat indicator blinks to indicate delete standby mode.



5. Press key C1 (Execute).

   • Deletion is executed. During processing, the indicators above the “SOUND MODE” and “a” buttons light up sequentially, and the Visual Information Bar will indicate that it is in progress (lighting sequentially from the left).



6. Once deletion begins release the “FUNCTION” button.

   • When the deletion is complete, the indicator returns to its original state.
