Playing Audio Data (WAV, MP3)

Data that Can be Played Back

Audio data in the AUDIOREC folder stored on a USB flash drive can be played back.

• WAV files (linear PCM, 16 bit, 44.1 kHz, stereo, extension: .WAV), file name “TAKE**.WAV” (** is 01-99)

• MP3 files (MPEG-1 Audio Layer3, 44.1 kHz/48 kHz, bit rate 32-320 kbps/variable bit rate (VBR) supported, mono/stereo, extension: .MP3), file name “TAKE**.MP3” (** is 01-99)

Switching to Audio Recorder

Attach the USB flash drive containing the songs to the USB Type A port on the Digital Piano.

For information on using USB flash drives, see “Inserting/Removing a USB Flash Drive from the Digital Piano”.

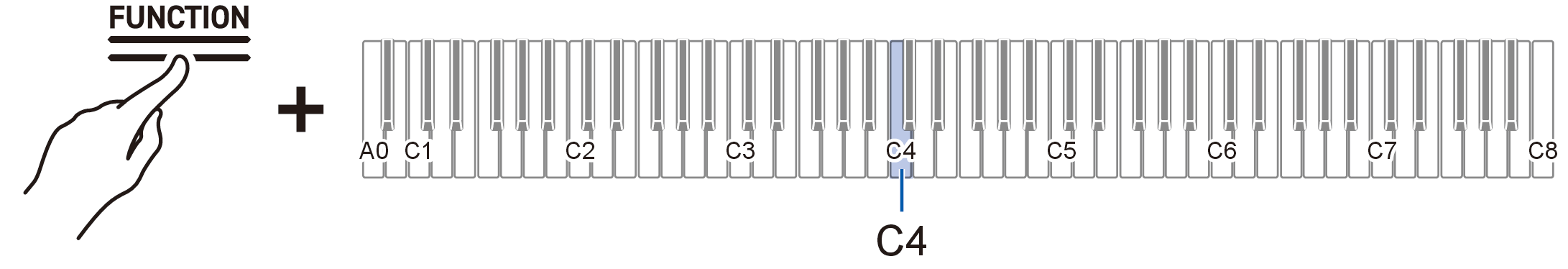

1. While holding down the “FUNCTION” button, press the C4 key (Audio Recorder).

   Selecting a Setting Value Directly (operation type A)



   • The visual information bar, third from the left, will blink.

Selecting a Song for Playback

Operate with <Audio Recorder>.

Switching to Audio Recorder

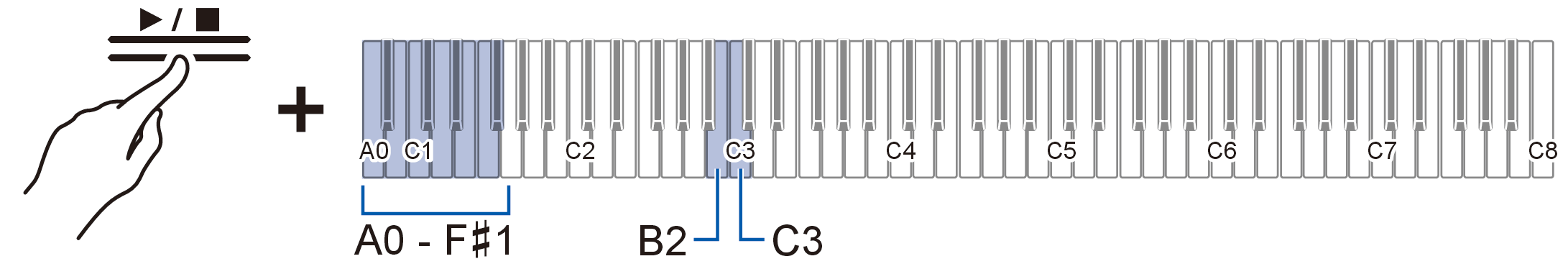

1. Hold down the “a” button and use the corresponding key to select a song. After selecting a song, release the “a” button.



   • Specify the TAKE**.WAV or TAKE**.MP3 (where ** = 01-99) file using the A0 to F{1 keys

     Inputting Setting Values Using the Keys 0 to 9 (operation type C)

   • Use keys B2/C3 (Song Select –/Song Select +) to specify previous/next song number

     Using the +/– Keys to Raise or Lower the Setting Value by 1 (operation type B)

2. To start playback, touch the “a” button. To stop playback in the middle of a song, touch the “a” button again.

   • Playback ends when the end of the song is reached.
