Using Sound Mode Effects (Hall Simulator/Reverb and Surround)

Each time the “SOUND MODE” button is touched, effects are switched on and off in turn.

Hall Simulator/Reverb

This effect adds reverberation to the sound.

Hall Simulator

This effect simulates the different acoustic characteristics of world-famous concert halls and buildings.

Reverb

This reproduces the reverberation of a given space, such as a room or a hall.

Surround

Surround sound (spread effect) is applied to the output sound from the Digital Piano speakers.

Turning on/off Hall Simulator/Reverb and Surround

  1. Touch the “SOUND MODE” button.

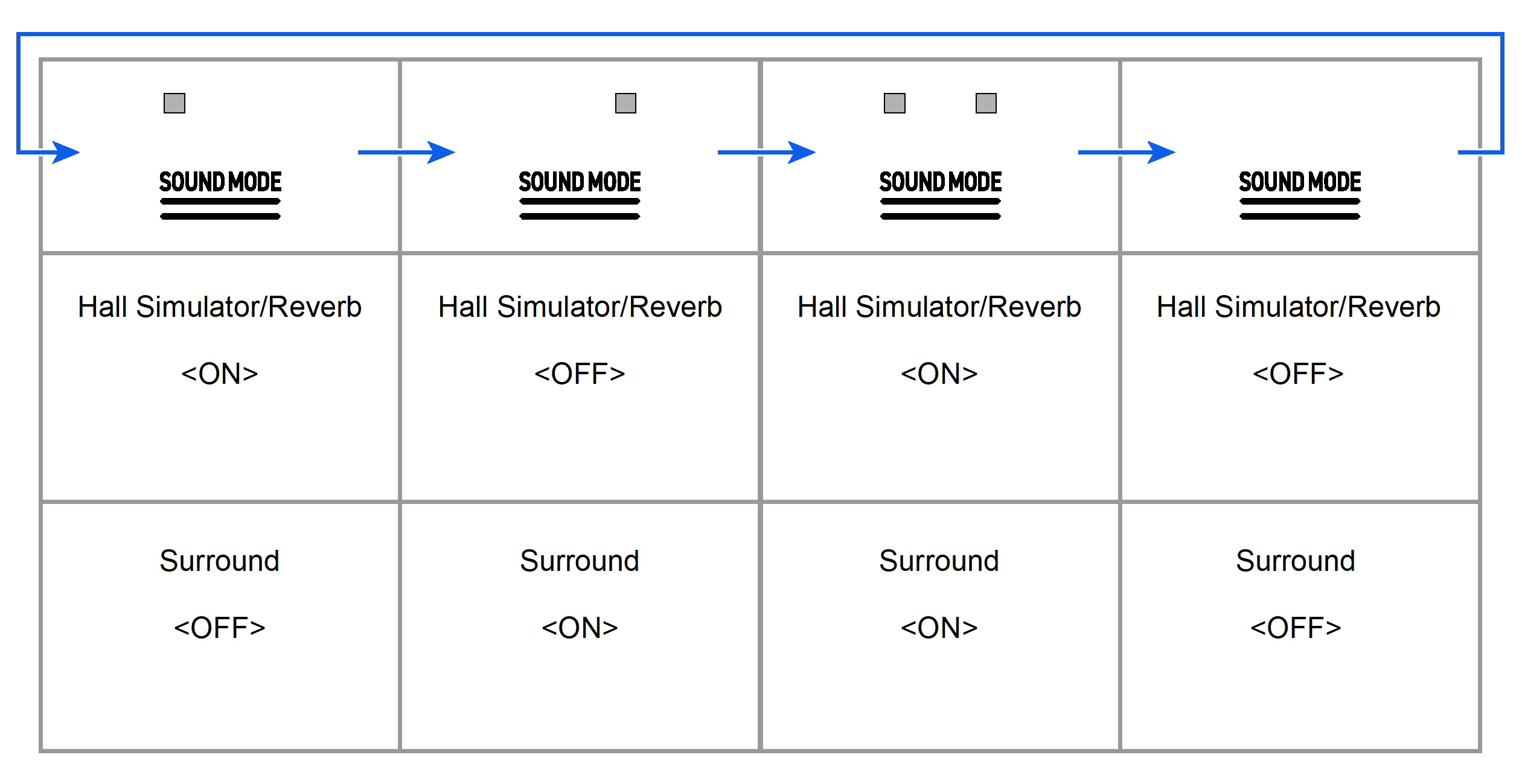

    • Each time you touch the button, the indicators above the button will become lit or unlit as shown below.

      Figure

Selecting Hall Simulator/Reverb Presets

  1. While holding down the “SOUND MODE” button, press any one of the A0 to A}1 keys.

    Selecting a Setting Value Directly (operation type A)

    Figure

Hall Simulator

Key

Setting Value

Setting Details

A0

N.Y. Club

Music club in Manhattan

B}0

Opera Hall

The uniquely shaped Sydney concert hall

B0

Berlin Hall

An arena-style classical concert hall in Berlin

C1

British Stadium

Large outdoor stadium in the outskirts of London

Reverb

Key

Setting Value

Setting Details

C{1

Room 1

Reverb that gives a sense of reverberation within a room

D1

Room 2

E}1

Room 3

E1

Large Room

F1

Hall 1

Reverb that emulates reverberation in a small hall

F{1

Hall 2

G1

Hall 3

A}1

Stadium

Reverb that emulates reverberation within a stadium

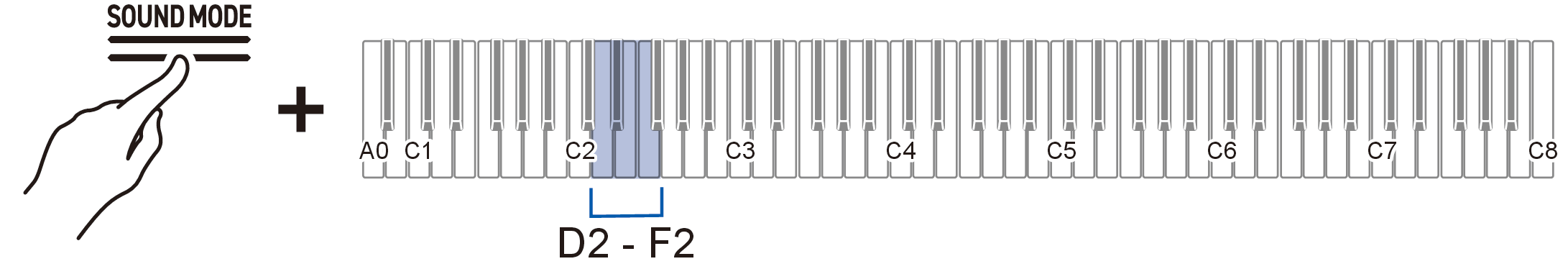

Adjusting Applied Hall Simulator/Reverb

  1. While holding down the “SOUND MODE” button, press the corresponding key.

    Using the +/– Keys to Raise or Lower the Setting Value by 1 (operation type B)

    Figure

Key

Setting

D2

Reduces the depth of effect applied to built-in sound sources by 1 (–)

E}2

Increases the depth of effect applied to built-in sound sources by 1 (+)

D2+E}2

Resets the depth of effect to the default setting for built-in sound sources (default value: 21)

E2

Decreases the depth of effect on the wireless audio input signal by 1 (–)

F2

Increases the depth of effect on the wireless audio input signal by 1 (+)

E2+F2

Resets the depth of effect to the default setting for the wireless audio input signal (default value: 0)

Selecting Surround Presets

  1. While holding down the “SOUND MODE” button, press the F{2 or G2 key.

    Selecting a Setting Value Directly (operation type A)

    Figure

Key

Setting Value

Setting Details

F{2

Surround Type 1

Standard spread

G2

Surround Type 2

Strengthened spread
