Touch Button Operation

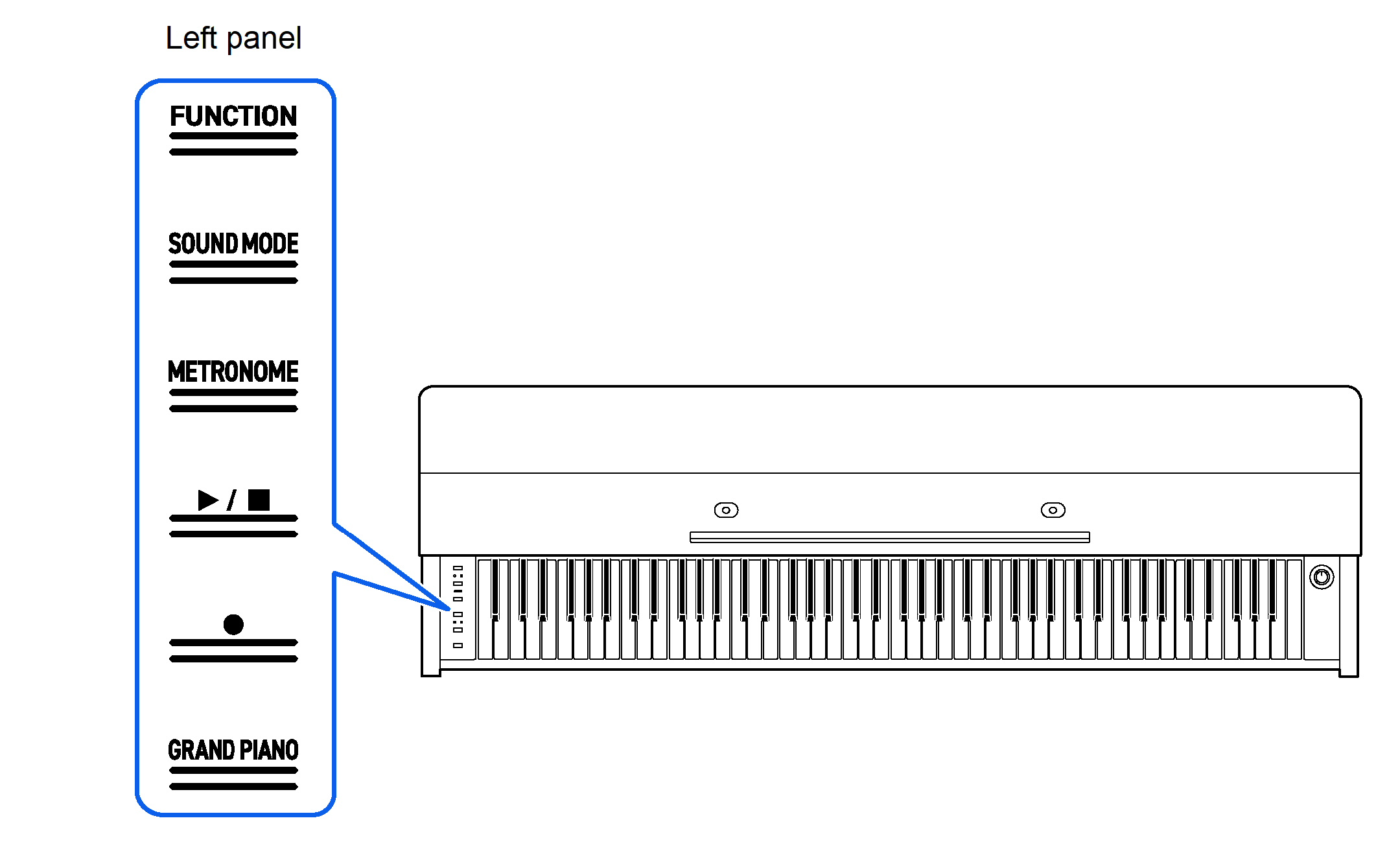

When the Digital Piano is turned on, the touch buttons on the left hand panel light up. After no operation for 15 seconds, the lights on the left panel go off. When the lights are off, the touch buttons will light up again if you touch the left panel.

You can change the number of seconds before the lights go off on the left panel or set up the lights to not go off.

For more information, see “Switching Panel Light Settings”.

When Touch Buttons Do Not Respond

Turn off the power to the Digital Piano.
While pressing the C8 key (rightmost key), press the “P(Power)” button.
- Do not release the C8 key until the Digital Piano is turned on and the touch buttons start to blink.

  You can release the “P(Power)” button.
- The sensitivity of the touch buttons is set to high.

Operation of the Touch Buttons Alone

Touching a button (touch firmly with fingertip and release immediately) will execute the function of that button.

Button	Function
SOUND MODE	Switches between <On> and <Off> for [Hall Simulator/Reverb] and [Surround].
METRONOME	The metronome starts (or stops).
a	Plays/Stops songs and recordings.
0(REC)	Use to record performances.
GRAND PIANO	Selects <GRAND PIANO CONCERT> tone.

The “FUNCTION” button only executes a function when used in combination with the keyboard or with the “SOUND MODE” button. The “FUNCTION” button on its own does not execute any function.

Touch Button and Keyboard Combination Operation

By using the touch buttons (except for the “0(REC)” button) and the keyboard at the same time, you can change various settings.

The items to be set vary depending on the touch button pressed.
The type of keyboard operation differs depending on the item you are setting.
There are five operation types as set out below:

Selecting a Setting Value Directly (operation type A)

Select the setting value assigned to the key.

Example: Selecting a tone

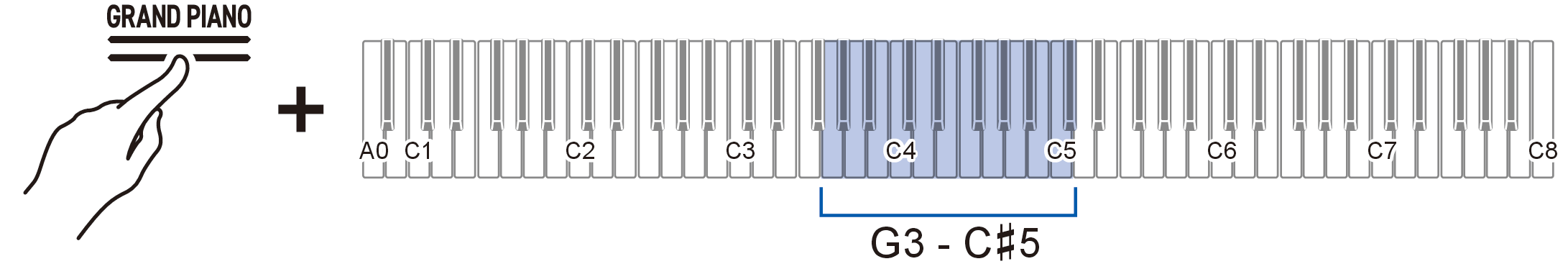

While holding down the “GRAND PIANO” button, press one of the G3 to C{5 keys (Tone Selection).
- See “Tone list” for the tones available for each key.

Using the +/– Keys to Raise or Lower the Setting Value by 1 (operation type B)

Holding down a key changes the setting value continuously in increments.
Pressing two keys together will return the value to the initial setting (default value).

Example: Setting the tempo

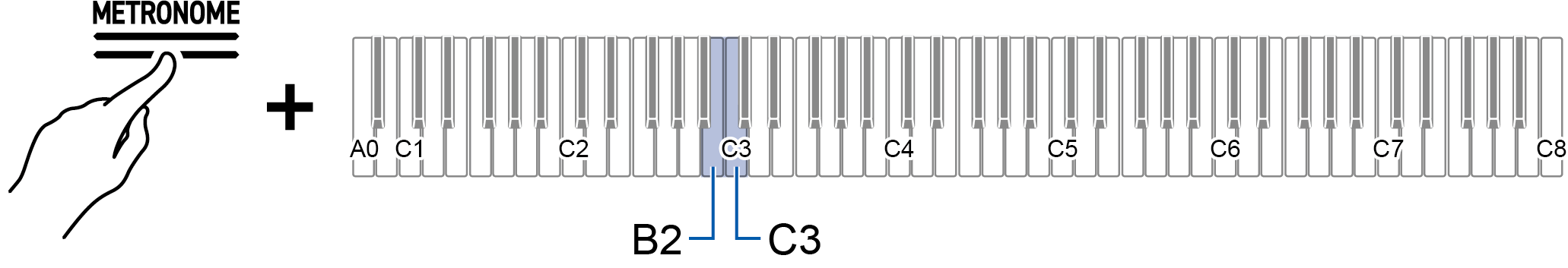

While holding down the “METRONOME” button, press the B2 key (tempo –)/C3 key (tempo +).
- This raises or lowers the tempo setting by 1.

Inputting Setting Values Using the Keys 0 to 9 (operation type C)

For example, to enter “2”, press the “2” keyboard key. To enter “20”, press the “2” keyboard key followed by the “0” keyboard key.

Example: Setting the tempo

While holding down the METRONOME button, press a key from A0 to F{1 (tempo value setting).
- Sets the tempo in the range of 20 to 255 (beats per minute).

Switching On/Off or Changing Setting Values Using a Single Key (operation type D)

Each time the key is pressed, the setting is changed.
When the key is pressed, a sound is played according to the set value.

Example: Locking button operations

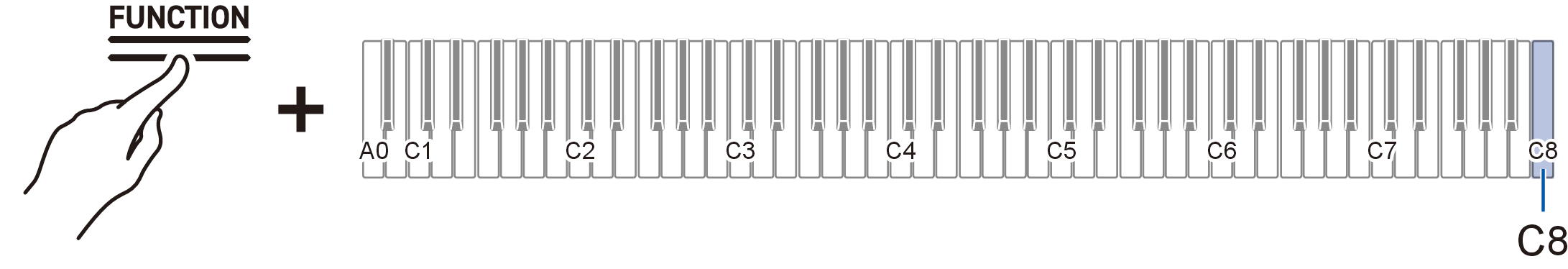

While holding down the “FUNCTION” button, press the C8 key (Panel Lock).
- For more information, see “Panel Lock”.

Putting in Standby Mode, and Executing on Next Key Press (operation type E)

Example: Performing a Factory Reset

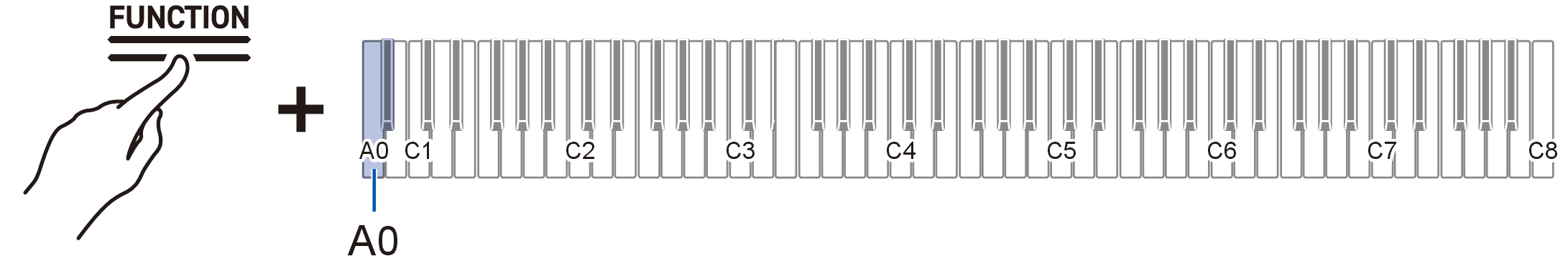

While holding down the “FUNCTION” button, press the A0 key (Factory Reset) to enter standby mode.
- To execute the process, do not release the touch button, and perform the operation in step 2.
- If the touch button is released in standby mode, the function will not be executed (the operation will be canceled).

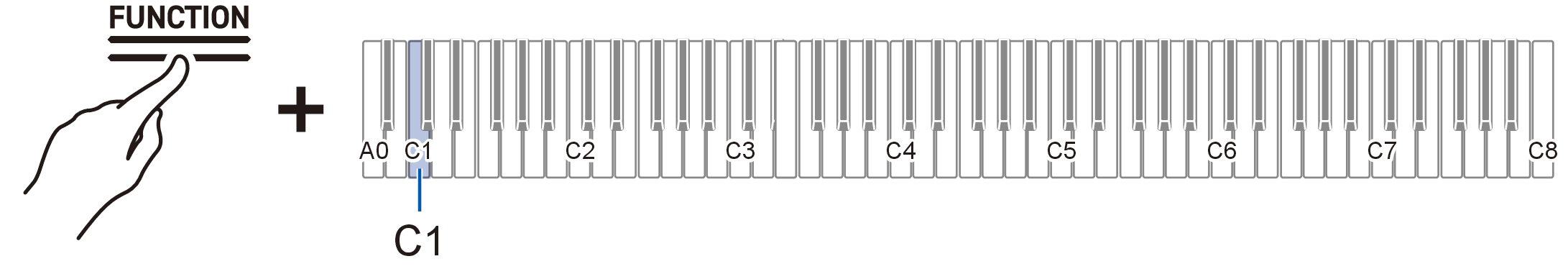

Hold down the “FUNCTION” button and press the C1 key (Execute) to execute the process.
- After performing step 2, release the touch button.
- Processing may take some time. If so, wait until the process is complete.
