Part Names and Functions

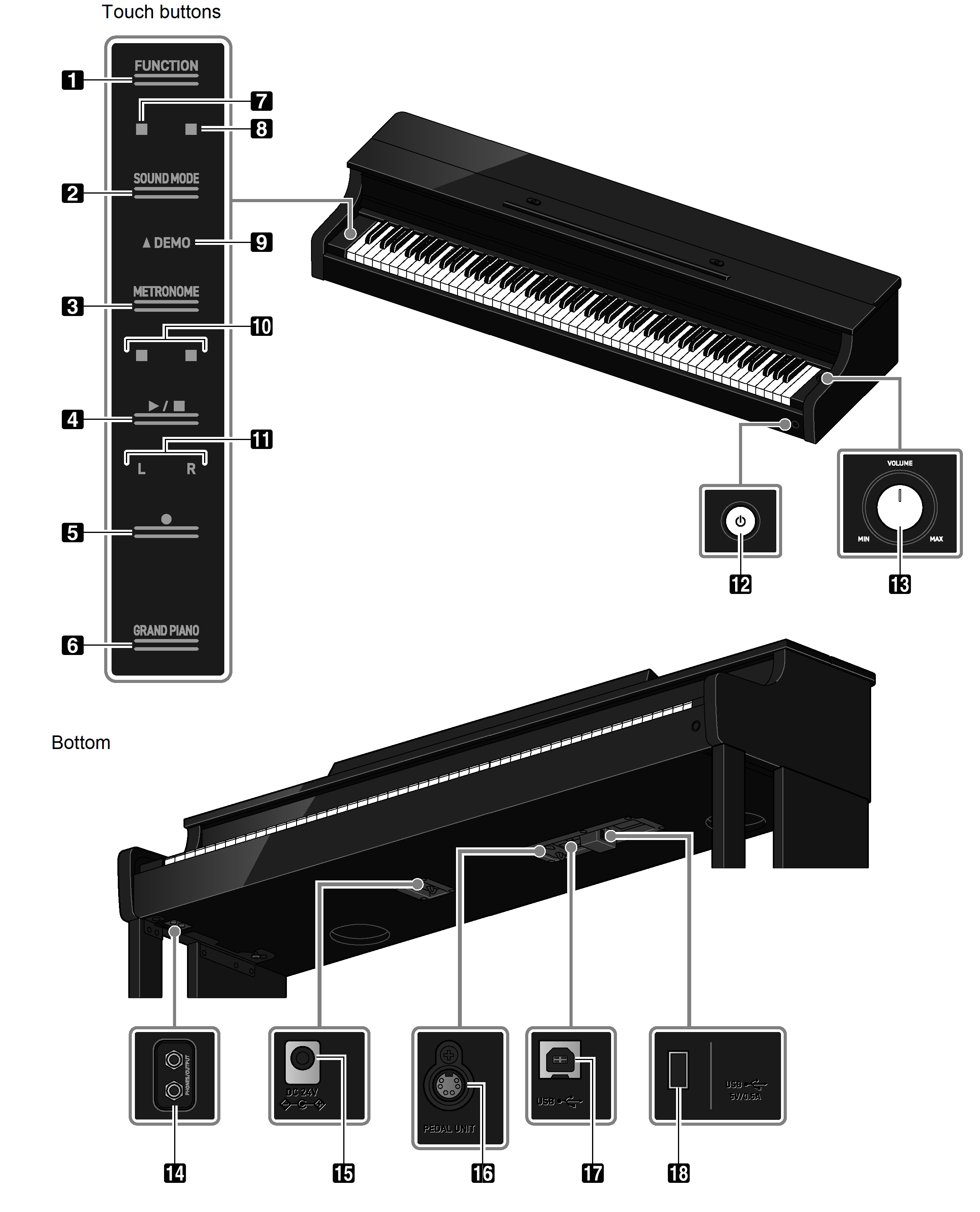

Illustration of AP-300.

Figure

  1. FUNCTION button

    Used for basic settings.

  2. SOUND MODE button

    Used to change settings such as [SOUND MODE].

  3. METRONOME button

    Used to turn the metronome On/Off.

  4. a button

    Used to play/stop a song.

  5. 0(REC) button

    Used to record performances.

  6. GRAND PIANO button

    Sets the tone to <GRAND PIANO CONCERT>.

  7. Hall Simulator/Reverb Indicator

    Lights up when [Hall Simulator/Reverb] is set to <On>.

  8. Surround Indicator

    Lights up when [Surround] is set to <On>.

  9. DEMO Indicator

    Lights up when a demo song is playing.

  10. Beat Indicator

    The left side blinks on the first beat and the right side blinks on the remaining beats in time, such as when a song is playing.

  11. Track Indicator

    During Record/Playback, “L” lights up to indicate the part of a track for the left hand, and “R” lights up to indicate the part of a track for the right hand.

  12. P(Power) button

    Turns main power On/Off. The outer circumference of the button indicates Bluetooth® connection status by the color of the light.

  13. Volume knob

    Adjusts the volume of the Digital Piano.

  14. PHONES/OUTPUT jacks

  15. Power supply terminal (DC 24V)

  16. PEDAL UNIT jack

  17. USB Type B port

  18. USB Type A port
