Module No. 5744

Linking with a Phone

While there is a Bluetooth connection between the watch and phone (Mobile Link), the watch’s current time setting is corrected automatically. You can also change the watch’s other settings.

Note

This function is available only while the CASIO WATCHES phone app is running on the phone.

This section describes watch and phone operations.
wat_s : Watch operation
phone-s : Phone operation

Getting Ready

To use your watch in combination with a phone, you first need to pair them. Perform the steps below to pair the watch with a phone.

Num_circle_1 Install the app on your phone.

Num_circle_2 Configure Bluetooth settings.

Num_circle_3 Pair the watch with a phone.

Num_circle_1 Install the required app on your phone.

To use the watch with a phone, first tap one of the links below and install the “CASIO WATCHES” app on the phone.

CASIO WATCHES

Num_circle_2 Configure Bluetooth settings.

Enable the phone’s Bluetooth.

Note

For details about setting procedures, see your phone documentation.

Num_circle_3 Pair the watch with a phone.

  1. Move the phone to be paired with close to (within one meter of) the watch.

  2. phone-s Tap the “CASIO WATCHES” icon.

  3. phone-s Tap the App_CWS_btn_plus of the “My Watch” tab.

  4. phone-s Perform the operation shown on the phone screen to register the watch to the CASIO WATCHES phone app.

  5. wat_s Hold down (B) for at least two seconds until the second hand points to [R].

    6. When a connection is established between the watch and phone, [APP] will change to [OK], and the second hand will move from [R] to [C].

    At this time the time settings of your phone and watch will be synced with each other.

    To pair a watch that is already paired with one phone to another phone, press and hold (B) until the second hand points to [R] twice.

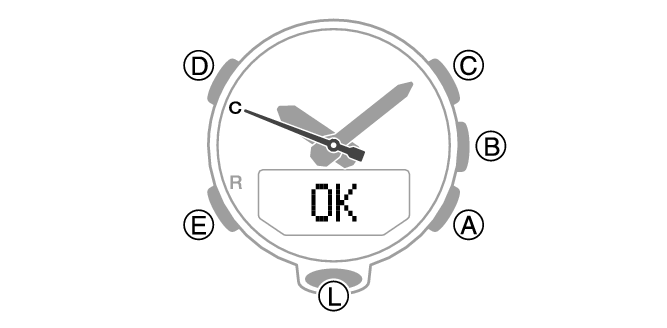

    5594_Cmark_OK

    If pairing fails, the watch returns to the state it was in before starting this procedure. Perform the pairing procedure again from the beginning.

This completes the pairing operation.
Once paired, the smartphone and watch automatically connect to synchronize the watch’s time setting with that of the smartphone.

Note

The first time you start up the CASIO WATCHES phone app, a message will appear on your phone asking if you want to enable location information acquisition. Configure settings to allow background use of location information.

Auto Time Correction

The watch will connect with a phone at preset times each day and adjust its time settings.

Using This Function

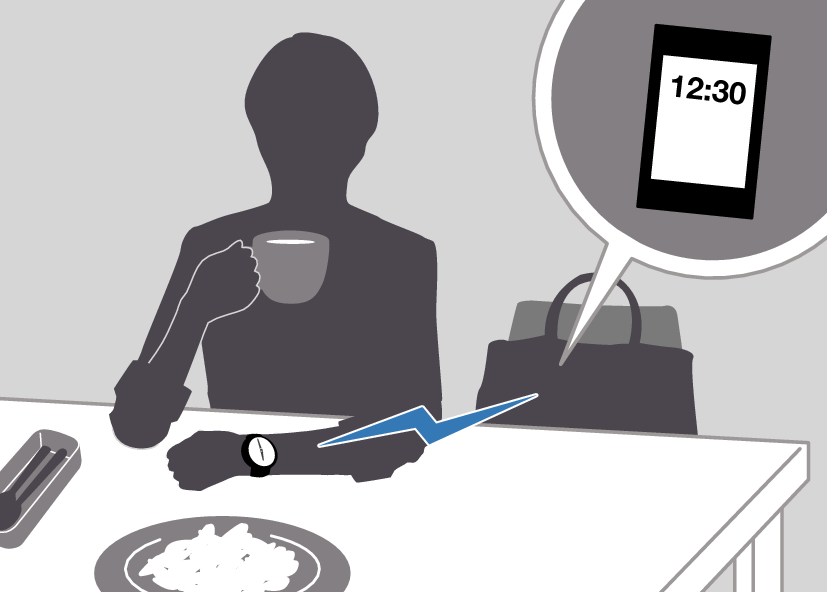

Your watch corrects its time setting four times a day according to a preset schedule. If you leave your watch in the Timekeeping Mode, it will perform the correction operation automatically as you go about your daily life, without any operation required by you.

img_Lunch_1230_2024

Important!

The watch may not be able to perform auto time correction under the conditions described below.

While the watch is too far away from its paired phone

While communication is not possible due to radio interference, etc.

While the phone is updating its system

While the CASIO WATCHES phone app is not running on the phone

Note

If the watch does not indicate the correct time even if it is able to connect with a phone, adjust the hand and day indicator alignment.

Adjusting Hand Alignment

If there is a World Time City specified with the CASIO WATCHES phone app, its time will also be corrected automatically.

The watch connects with the phone and performs auto time correction at around 12:30 a.m., 6:30 a.m., 12:30 p.m. and 6:30 p.m. The connection is automatically terminated after auto time correction is complete.

Triggering Immediate Time Correction

The watch’s time setting is corrected automatically whenever you establish a connection between the watch and a phone. Whenever you want to trigger immediate time correction, perform the procedure below to connect with a phone.

  1. Move the phone close to (within one meter of) the watch.

  2. wat_s Press (B).

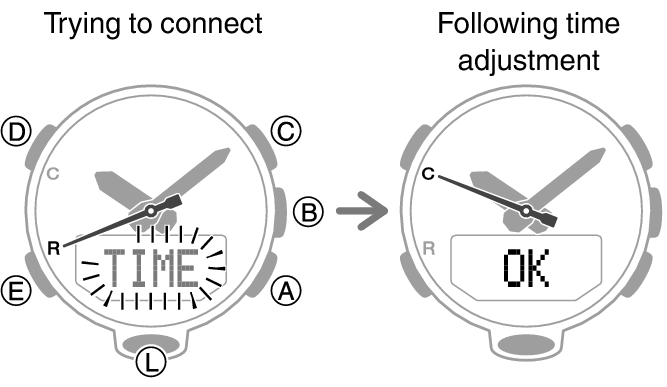

    3. [TIME] flashes to indicate that the watch has started the connection operation. When a connection is established between the watch and phone, [OK] will appear, time information will be acquired, and then the watch’s time setting will be adjusted.

    5594_98_fl_MobileLink

Note

You can perform the above operation for time adjustment from any watch mode.

The connection is terminated automatically after time correction is complete.

If time correction fails for some reason, [ERR] will appear.

Mode Customization

You can use CASIO WATCHES to customize modes by rearranging them on the screen, and by deleting or adding modes.

Important!

You cannot perform mode customization operations on the watch. Use CASIO WATCHES to configure settings.

The modes below can be rearranged or deleted.

Barometer Mode

Thermometer Mode

Altitude Record Recall Mode

Sunrise/Sunset Mode

Stopwatch Mode

Timer Mode

Alarm Mode

World Time Mode

  1. phone-s Tap the “CASIO WATCHES” icon.

  2. wat_s Hold down (B) for at least two seconds until the second hand points to [R] twice.

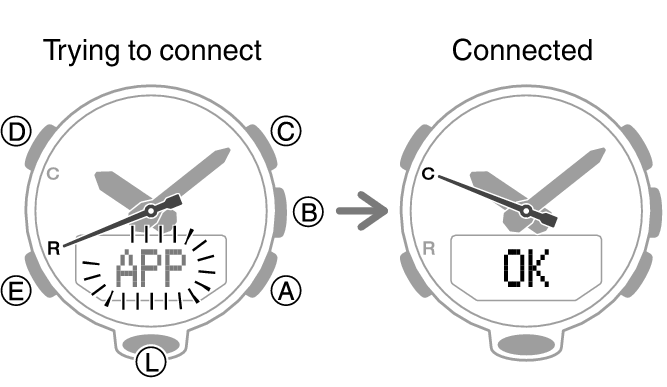

    3. When a connection is established between the watch and phone, [APP] will change to [OK], and the second hand will move from [R] to [C].

    5744_fl_BLE_cone

  3. phone-s Perform the operations shown on the phone screen to configure mode settings.

Note

Increasing or decreasing the number of modes may change mode functions and/or settings.

Even if you remove the Barometer Mode, you can still display the barometric pressure graph on the Timekeeping Mode screen.

Even if you remove the Sunrise/Sunset Mode, you can still display sunrise and sunset times on the Timekeeping Mode screen.

To initialize Mode Customization

Important!

Initializing Mode Customization also initializes watch settings.

Note

Mode Customization cannot be initialized while Mission Log is enabled.

  1. wat_s Enter the Timekeeping Mode.

    2. Navigating Between Modes

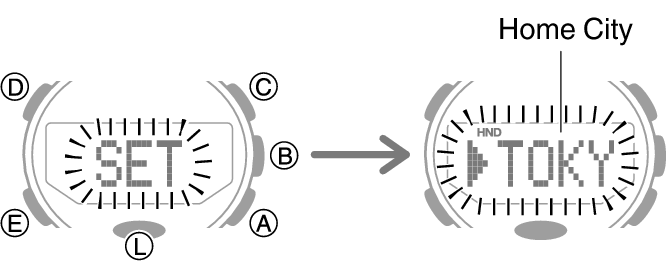

  2. wat_s Hold down (D) for at least two seconds. Release the button when the name of the currently selected Home City appears on the display.

    3. 5594_fl_SET_HT_caps_comon

  3. wat_s Press (D).

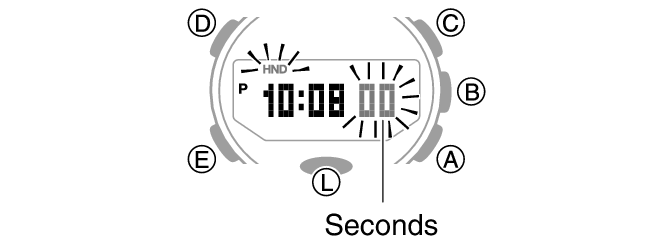

    4. This causes the seconds to flash.

    5594_91_other_comon

  4. wat_s Hold down (C) for at least five seconds. Release it when [RESET] stops flashing.

    5. This initializes Mode Customization.

  5. wat_s Press (D) to exit the setting screen.

Customizing the Timekeeping Mode Screen

You can use CASIO WATCHES to rearrange display items on the Timekeeping Mode, and to add or remove items.

Important!

Note that you cannot use watch operations to configure display item settings. Use CASIO WATCHES to configure settings.

The items below can be displayed.

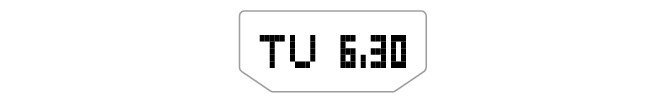

Day of the week, month, day

5744_116_MobileLink

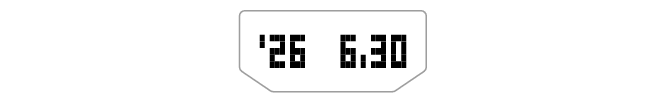

Year, month, day *

5744_117_MobileLink

Barometric pressure graph, month, day

5594_118_MobileLink

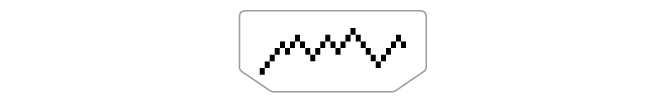

Barometric Pressure Graph *

5594_119_MobileLink

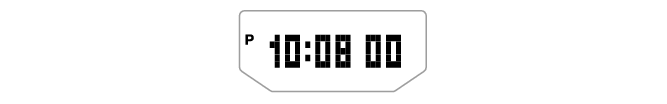

Hour, minute, second

5594_120_MobileLink

World Time hour, minute *

5594_121_MobileLink

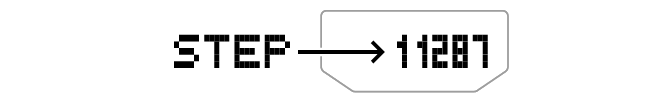

Step count

5594_122_MobileLink

Home Time City sunrise/sunset times *

5744_123_MobileLink

* Item that can be added using CASIO WATCHES. These items are not displayed under initial default settings.

  1. phone-s Tap the “CASIO WATCHES” icon.

  2. wat_s Hold down (B) for at least two seconds until the second hand points to [R] twice.

    3. When a connection is established between the watch and phone, [APP] will change to [OK], and the second hand will move from [R] to [C].

    5744_fl_BLE_cone

  3. phone-s Perform the operations shown on the phone screen to configure mode settings.

Viewing Step Count Data

The CASIO WATCHES phone app can be used to view the information below, which is measured by the watch.

24-hour step count, calories burned

Weekly step count, calories burned

  1. phone-s Tap the “CASIO WATCHES” icon.

  2. wat_s Hold down (B) for at least two seconds until the second hand points to [R] twice.

    3. When a connection is established between the watch and phone, [APP] will change to [OK], and the second hand will move from [R] to [C].

    5744_fl_BLE_cone

  3. phone-s Follow the instructions on the screen to display pedometer data.

Note

You can also use CASIO WATCHES to specify a daily step target.

Though the step count is displayed on the watch in real time, CASIO WATCHES displays step counts at the time when a connection is established between the watch and phone. Because of this, the step counts displayed by CASIO WATCHES may be different from those displayed by the watch.

Recording Your Current Location (Location Memory)

You can use CASIO WATCHES to record current location information.

  1. phone-s Tap the “CASIO WATCHES” icon.

  2. wat_s Enter the Timekeeping Mode or Compass Mode.

    3. Navigating Between Modes

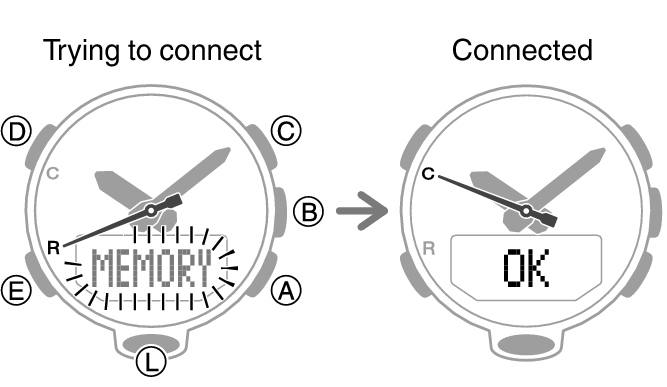

  3. wat_s Hold down (C) for at least five seconds until [MEMORY] starts to flash. Release the button when the second hand points to [R] twice.

    4. If location information is successfully acquired after a connection is established between the watch and phone, [MEMORY] will change to [OK], and the second hand will move from [R] to [C].

    [ERR] will appear on the display if connection fails for some reason.

    [FAILED] arrowR [POSITION] will appear in sequence if location information acquisition fails for some reason.

    5744_26_fl_MobileLink

  4. phone-s Perform the operation shown on the phone screen to view the Location Memory information record.

    5. You can have only one location record in memory. Saving location information while there is already a location record in memory will overwrite the existing record with the new information.

Note

You can use the CASIO WATCHES phone app to change the information recorded in Location Memory to something else. Note that this operation is not supported while the watch is being used inside of China.

If there is location information stored in Location Memory, you can use Location Indicator to check the distance and bearing to the stored location.

Checking the Distance and Bearing to a Location Memory Point (Location Indicator)

Checking the Distance and Bearing to a Location Memory Point (Location Indicator)

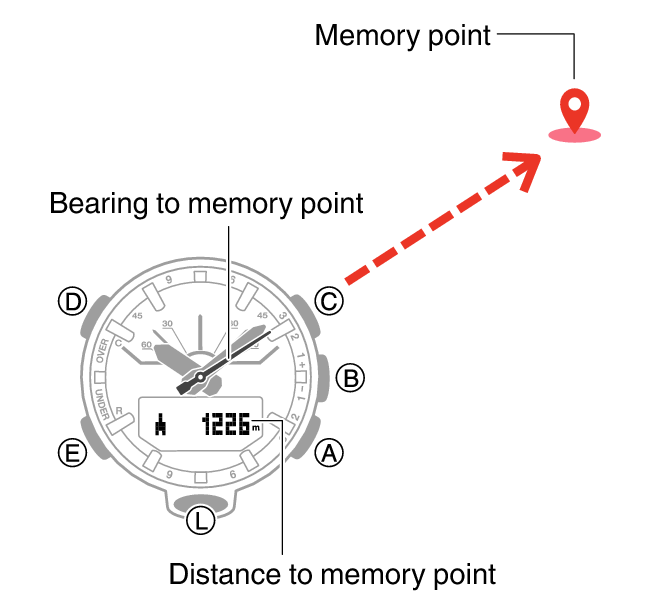

The watch acquires current location information from the phone, and then displays the bearing and distance from your current location to the location recorded in Location Memory.

Recording Your Current Location (Location Memory)
5594_99_COMP

Important!

Note that CASIO WATCHES operation is disabled while Location Indicator is in use.

  1. phone-s Tap the “CASIO WATCHES” icon.

  2. wat_s Enter the Timekeeping Mode or Compass Mode.

    3. Navigating Between Modes

  3. wat_s Hold down (C) for at least two seconds until [INDICATE] starts to flash. Release the button when the second hand moves to [R].

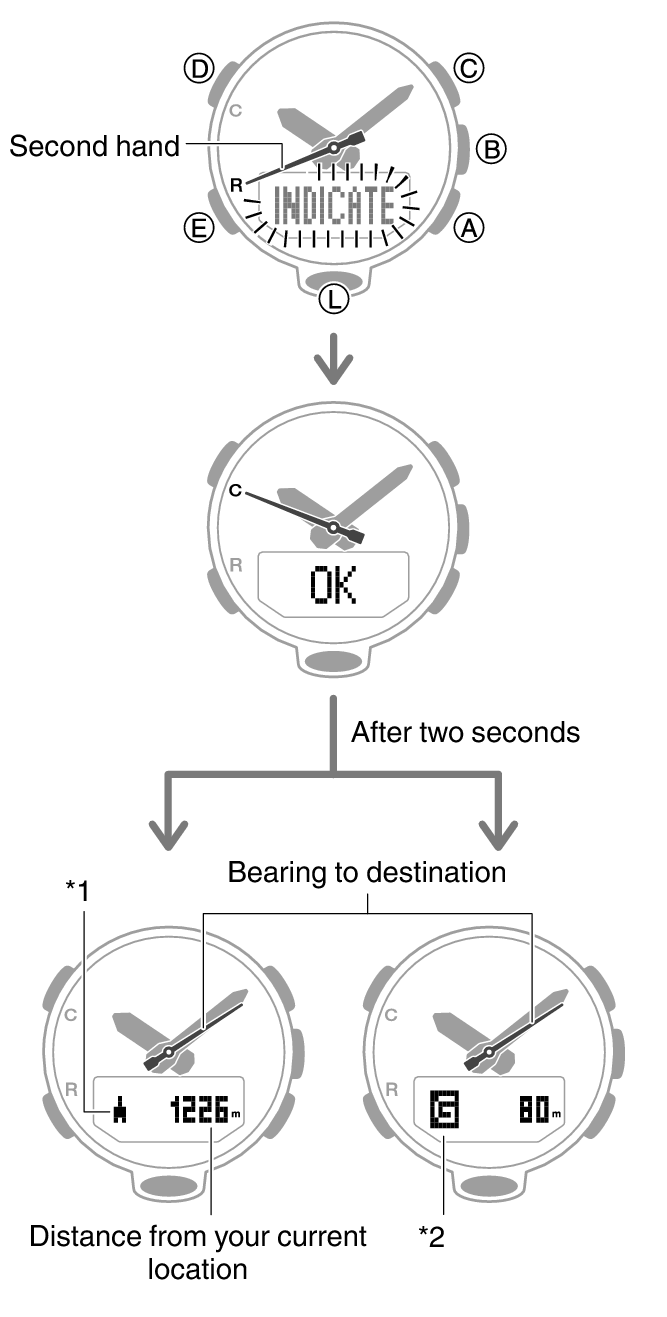

    4. When a connection is established between the watch and phone and location information acquisition is successful, [INDICATE] will change to [OK], and the second hand will move from [R] to [C].

    After two seconds the distance from your current location to the recorded location will appear on the display, and the second hand will indicate the bearing to the destination.

    5594_93_fl_COMP

    *1
    When the second hand is within the range between 55 seconds to 05 seconds (indicating that you are within 30 degrees of the bearing to the destination), [dot_ArrowMark] will be displayed as a light figure on a dark background.

    *2
    [G] is shown on the display when you are within 80 meters of the destination. [G] will disappear from the display if you move to a distance of 161 meters or more from the destination.

  4. wat_s Check the display distance and the bearing to your destination on the display.

Note

Location Indicator remains enabled for three minutes.

The watch connects with the phone and acquires location information every 10 seconds or each time (B) is pressed, and uses the information to refresh the distance and the bearing to the point stored in Location Memory.

Location Indicator will become disabled automatically about three minutes after it is enabled. You can also disable it manually by pressing any button besides (B) or (L).

Pressing (B) or (L) while Location Indicator is enabled will cause it to remain enabled for three minutes after the button is pressed.

Pressing (B) to update data causes [dot_ArrowMark TRY] to appear on the display and remain displayed until data updating is complete.

[dot_ArrowMark FAIL] will appear on the display in the cases below.

When it has been 30 seconds or more since the last update and location information acquisition fails

When it has been 60 seconds or more since the last update

When data acquisition fails after you press (B)

The display range for the distance to a destination is 0 to 99,999 meters (0 to 327,995 feet). [dot_ArrowMark -----] will be shown for the distance to the destination when it is outside the display range.

[ERR] will appear on the display if connection fails for some reason.

The message [NO-DATA] will appear when there is no data in Location Memory.

[FAILED] arrowR [POSITION] will appear in sequence if the first location information acquisition fails.

[dot_ArrowMark] or [G] will flash on the display if the watch detects abnormal magnetism while Location Indicator is in use.

[dot_ArrowMark ERR] will appear on the display if a direction sensor error occurs while Location Indicator is in use.

Auto Altitude Calibration

Enabling auto altitude calibration with CASIO WATCHES will cause altitude values to be acquired by CASIO WATCHES, which will be used to automatically correct the watch’s altitude reading.

Important!

Use CASIO WATCHES to enable or disable auto altitude calibration. It cannot be enabled or disabled on the watch.

Note

If an altitude value acquired by CASIO WATCHES satisfies accuracy conditions, the watch will automatically correct is altitude reading.

Auto altitude calibration is performed at the same time as auto time correction.

Auto altitude calibration is not performed for 12 hours after the time setting is adjusted manually.

Recording Waypoints and Their Altitudes (Mission Log)

Mission Log uses CASIO WATCHES GPS to record the waypoints of your routes. At the same time, the watch takes altitude readings every two minutes and stores them in memory, and automatically transfers altitude data to CASIO WATCHES every hour.

  1. phone-s Tap the “CASIO WATCHES” icon.

  2. wat_s Enter the Timekeeping Mode or Altimeter Mode.

    3. Navigating Between Modes

  3. wat_s Hold down (A) for at least five seconds until [LOG] starts to flash. Release the button when the second hand moves to [R].

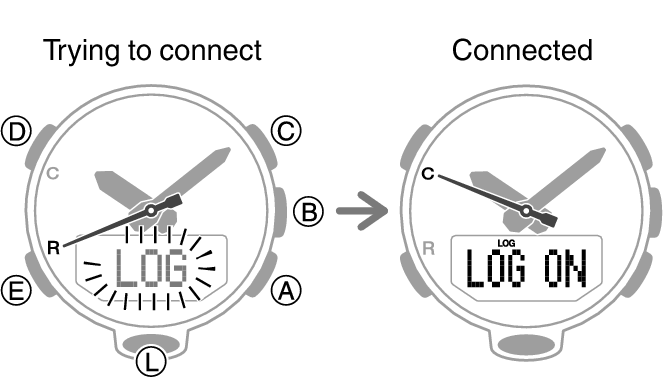

    4. When a connection is established between the watch and phone, [LOG] will change to [LOG ON], and the second hand will move from [R] to [C].

    This indicates that Mission Log is enabled.

    5744_27_fl_MobileLink

    To disable Mission Log, hold down (A) again for at least five seconds.

Note

[LOG] is displayed while Mission Log is enabled.

Mission Log becomes disabled automatically 12 hours after it is enabled.

Mission Log remains enabled even if you change to another mode.

The watch has enough memory to hold up to 60 altitude records. Recording data when there are already 60 records in memory will automatically delete the oldest record to make room for the new one.

Data Transfer

After Mission Log is enabled, data transfer starts when the number of altitude records in watch memory reaches 30.

Auto data transfer is performed during the normal state of each mode.

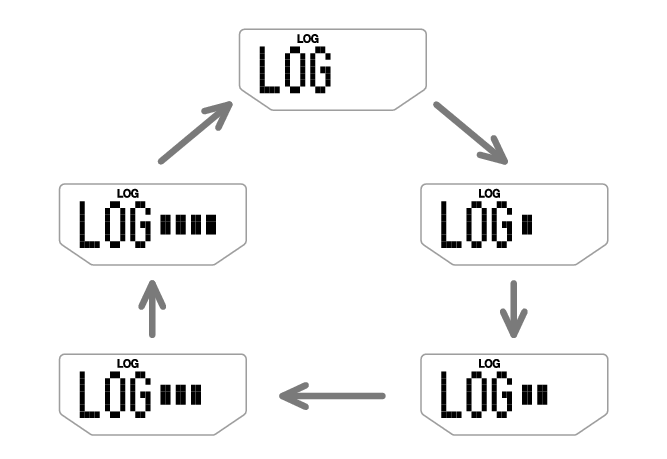

The display cycles as shown below as data is being transferred.

5594_103_fl_MobileLink

The second hand will point to [R].

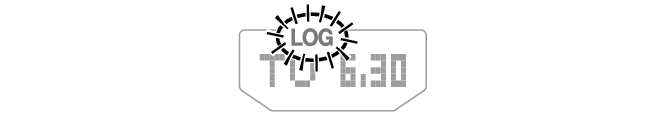

If data transfer fails for some reason, the watch will return to the previous screen with [LOG] flashing.

5744_104_MobileLink

Note

If auto transfer fails for some reason, the watch will keep trying up to five times at 10-minute intervals. Or data is transferred when a CASIO WATCHES connection is established.

Configuring World Time Settings

Specifying a World Time City with the CASIO WATCHES phone app causes the watch’s World Time City to change accordingly. The standard time/summer time setting of the World Time will be corrected automatically without any watch operation required by you.

img_WT_2023

Note

The CASIO WATCHES phone app World Time lets you select from among approximately 300 cities as the World Time City.

To select a World Time City

  1. phone-s Tap the “CASIO WATCHES” icon.

  2. wat_s Hold down (B) for at least two seconds until the second hand points to [R] twice.

    3. When a connection is established between the watch and phone, [APP] will change to [OK], and the second hand will move from [R] to [C].

    If connection fails for some reason, [ERR] will appear on the display momentarily and then the watch will return to the mode it was in before you started the connection procedure.

    5744_fl_BLE_cone

  3. phone-s Perform the operation shown on the phone screen. The World Time setting will be reflected on the watch.

Note

You can use CASIO WATCHES to configure settings for user cities that are not included in the watch’s built-in World Time Cities. You must use CASIO WATCHES to select a user city as your World Time City.

Configuring the Summer Time Setting

  1. phone-s Tap the “CASIO WATCHES” icon.

  2. wat_s Hold down (B) for at least two seconds until the second hand points to [R] twice.

    3. When a connection is established between the watch and phone, [APP] will change to [OK], and the second hand will move from [R] to [C].

    If connection fails for some reason, [ERR] will appear on the display momentarily and then the watch will return to the mode it was in before you started the connection procedure.

    5744_fl_BLE_cone

  3. phone-s Perform the operation shown on the phone screen to select a summer time setting.

    4. “Auto”
    The watch switches between standard time and summer time automatically.

    “OFF”
    The watch always indicates standard time.

    “ON”
    The watch always indicates summer time.

Note

While the summer time setting is “Auto”, the watch switches between standard time and summer time automatically. You do not need to switch between standard time and summer time manually. Even if you are in an area that does not observe summer time, you can leave the watch’s summer time setting as “Auto”.

For information about summer time periods, refer to the “Summer Time Table”.

Swapping Your World Time and Home Time

  1. phone-s Tap the “CASIO WATCHES” icon.

  2. wat_s Hold down (B) for at least two seconds until the second hand points to [R] twice.

    3. When a connection is established between the watch and phone, [APP] will change to [OK], and the second hand will move from [R] to [C].

    If connection fails for some reason, [ERR] will appear on the display momentarily and then the watch will return to the mode it was in before you started the connection procedure.

    5744_fl_BLE_cone

  3. phone-s Perform the operation shown on the phone screen to swap your Home Time with your World Time.

Note

Auto time correction does not work for 24 hours after swapping the Home Time and World Time.

Adjusting Hand Alignment

If the hands are out of alignment even though auto time correction is being performed, you can use the CASIO WATCHES phone app to adjust them.

  1. phone-s Tap the “CASIO WATCHES” icon.

  2. wat_s Hold down (B) for at least two seconds until the second hand points to [R] twice.

    3. When a connection is established between the watch and phone, [APP] will change to [OK], and the second hand will move from [R] to [C].

    If connection fails for some reason, [ERR] will appear on the display momentarily and then the watch will return to the mode it was in before you started the connection procedure.

    5744_fl_BLE_cone

  3. phone-s Perform the operation shown on the phone screen to correct hand alignment.

Phone Finder

You can use phone finder to trigger a tone on the phone to make it easy to find. The tone is forced to sound even if the phone is in vibrate mode.

Important!

Do not use this function in areas where phone call tones are restricted.

The tone sounds at a high volume. Do not use this function when listening to phone output over earphones.

  1. wat_s If the watch is connected with a phone, press any button besides (L) to terminate the connection.

    2. After the connection is terminated, the watch will return to the mode it was in before connection was established.

    Example: After connecting from the Timekeeping Mode

    5744_fl_BLE_discone

  2. wat_s Hold down (B) for at least five seconds until the second hand points to [R] three times.

    3. The phone sounds a tone when it establishes a connection with the watch.

    It takes a few seconds before the phone tone sounds.

    5594_30_fl_MobileLink

  3. wat_s Press any button besides (L) to stop the tone.

    4. You can press any watch button to stop the phone tone only during the first 30 seconds after it starts to sound.

Configuring Watch Settings

You can use CASIO WATCHES to configure the settings below.

Timer start time

Alarm

Altimeter

  1. phone-s Tap the “CASIO WATCHES” icon.

  2. wat_s Hold down (B) for at least two seconds until the second hand points to [R] twice.

    3. When a connection is established between the watch and phone, [APP] will change to [OK], and the second hand will move from [R] to [C].

    If connection fails for some reason, [ERR] will appear on the display momentarily and then the watch will return to the mode it was in before you started the connection procedure.

    5744_fl_BLE_cone

  3. phone-s Select the setting you want to change and then perform the operation shown on the phone screen.

Changing the Home City Summer Time Setting

  1. phone-s Tap the “CASIO WATCHES” icon.

  2. wat_s Hold down (B) for at least two seconds until the second hand points to [R] twice.

    3. When a connection is established between the watch and phone, [APP] will change to [OK], and the second hand will move from [R] to [C].

    If connection fails for some reason, [ERR] will appear on the display momentarily and then the watch will return to the mode it was in before you started the connection procedure.

    5744_fl_BLE_cone

  3. phone-s Perform the operation shown on the phone screen to change your Home City summer time setting.

Connection

Connecting with a Phone

This section explains how to establish a Bluetooth connection with a phone that is paired with the watch.

If the watch is not paired with the phone you want to connect with, refer to the information below and pair them.

Num_circle_3 Pair the watch with a phone.

  1. Move the phone close to (within one meter of) the watch.

  2. wat_s Hold down (B) for at least two seconds until the second hand points to [R] twice.

    3. When a connection is established between the watch and phone, [APP] will change to [OK], and the second hand will move from [R] to [C].

    If connection fails for some reason, [ERR] will appear on the display momentarily and then the watch will return to the mode it was in before you started the connection procedure.

    5744_fl_BLE_cone

Important!

If you have problems establishing a connection, it could mean that CASIO WATCHES is not running on the phone. On the phone’s Home Screen, tap the “CASIO WATCHES” icon. After the app starts up, hold down the watch’s (B) button for at least two seconds.

Note

The connection is terminated if you do not perform any operation on the watch or phone for a fixed amount of time.
To specify the connection limit time, perform the following operation with the CASIO WATCHES phone app: “Watch settings” arrowR “Connection time with the app”. Next, select a setting of 3 minutes, 5 minutes, or 10 minutes.

Canceling a Connection with a Phone

To terminate a Bluetooth connection, press any watch button besides (L).

After the connection is terminated, the watch will return to the mode it was in before connection was established.

Example: After connecting from the Timekeeping Mode

5744_fl_BLE_discone

Using the Watch in a Medical Facility or Aircraft

Whenever you are in a hospital, on an aircraft, or in any other location where connection with a phone may cause problems, you can perform the procedure below to disable auto time correction. To re-enable auto time correction, perform the same operation again.

  1. phone-s Tap the “CASIO WATCHES” icon.

  2. wat_s Hold down (B) for at least two seconds until the second hand points to [R] twice.

    3. When a connection is established between the watch and phone, [APP] will change to [OK], and the second hand will move from [R] to [C].

    If connection fails for some reason, [ERR] will appear on the display momentarily and then the watch will return to the mode it was in before you started the connection procedure.

    5744_fl_BLE_cone

  3. phone-s Perform the operation shown on the phone screen to enable or disable auto time correction.

Unpairing

To unpair the watch from a phone, delete the pairing information from the CASIO WATCHES phone app, the phone, and the watch.

Deleting Pairing Information from the CASIO WATCHES phone app

  1. wat_s If the watch is connected with a phone, press any button besides (L) to terminate the connection.

    2. After the connection is terminated, the watch will return to the mode it was in before connection was established.

    5744_fl_BLE_discone

  2. phone-s Tap the “CASIO WATCHES” icon.

  3. phone-s Perform the operation shown on the phone screen to unpair.

Deleting Pairing Information from the Watch

  1. wat_s Hold down (E) for at least two seconds to enter the Timekeeping Mode.

  2. wat_s Hold down (D) for at least two seconds. Release the button when the name of the currently selected Home City appears on the display.

    3. 5594_fl_SET_HT_caps_comon

  3. wat_s Press (D).

    4. This causes the seconds to flash.

    5594_91_other_comon

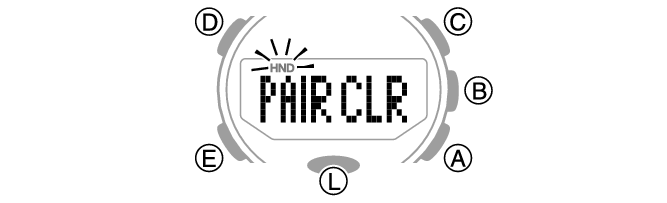

  4. wat_s Hold down (C) for at least two seconds. Release it when [PAIR CLR] stops flashing.

    5. This deletes the pairing information from the watch.

    5594_113_MobileLink

  5. wat_s Press (D) to return to the Timekeeping Mode.

Important!

Pairing information cannot be deleted from watch memory while Mission Log is enabled.

Recording Waypoints and Their Altitudes (Mission Log)

Deleting the phone’s pairing information

For details about setting procedures, see your phone documentation.

“Settings” arrowR “Bluetooth” arrowR Cancel the watch’s device registration.

If you purchase another phone

You need to perform the pairing operation whenever you want to establish a Bluetooth connection with a phone for the first time.

Num_circle_3 Pair the watch with a phone.

Back

Next
