Module No. 5744

Alarm

The watch beeps when an alarm time is reached. You can set up to five different alarms. The hourly time signal causes the watch to beep every hour on the hour.

The beeper will not sound if battery power is low.

img_ALM_2023_2

Using the CASIO WATCHES Phone App to Configure Alarm Settings

If the watch is paired with a phone, you can also use the CASIO WATCHES phone app to set alarms.

Configuring Alarm Settings

  1. Enter the Alarm Mode.

  2. Use (A) and (C) to display the number ([AL1] to [AL5]) of the alarm whose settings you want to change.

  3. 5594_74_ALM
  4. Hold down (D) for at least two seconds. Release the button when the hour digits start to flash.

  5. The ALM (alarm) indicator is displayed when any alarm is turned on.

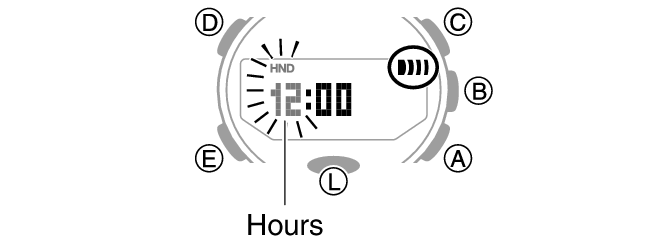

    5594_75_ALM
  6. Use (A) and (C) to change the hour setting.

  7. If you are using 12-hour timekeeping, [P] indicates p.m.

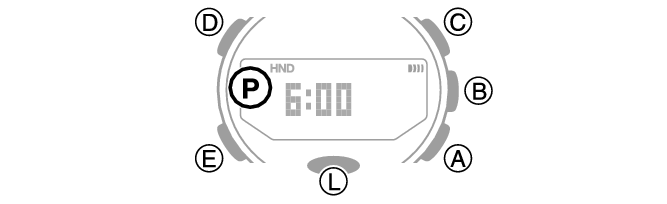

    5594_76_ALM
  8. Press (E).

  9. This causes the minutes digits to flash.

    5594_77_ALM
  10. Use (A) and (C) to change the minute setting.

  11. Press (D) to exit the setting screen.

  12. Hold down (E) for at least two seconds to return to the Timekeeping Mode.

To stop the alarm

To stop the alarm after it starts to sound when an alarm time is reached, press any button.

Note

A beeper sounds for 10 seconds when an alarm time is reached.

Configuring the Hourly Time Signal Setting

  1. Enter the Alarm Mode.

  2. Press (A) or (C) to display the hourly time signal screen ([SIG]).

  3. 5594_79_ALM
  4. Press (D) to toggle the hourly time signal between enabled (on) and disabled (off).

  5. SIG (hourly time signal) is shown on the display while the hourly time signal is enabled.

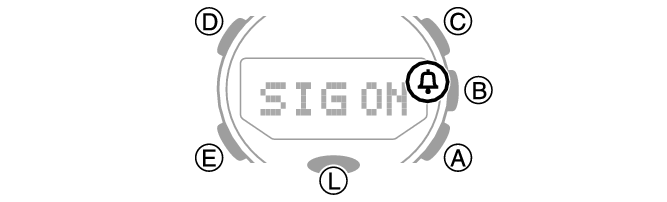

    5594_80_ALM

Turning Off an Alarm or the Hourly Time Signal

To stop an alarm or the hourly time signal from sounding, perform the steps below to turn it off.

To have an alarm or hourly time signal sound again, turn it back on.

Note

Indicators are displayed while any of the alarms or the hourly time signal is turned on.

The applicable indicators are not displayed while all of the alarms are turned off and/or the hourly time signal is turned off.

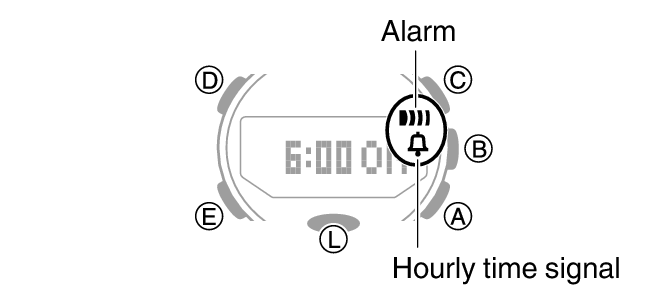

5594_115_ALM
  1. Enter the Alarm Mode.

  2. Use (A) and (C) to scroll through alarm numbers ([AL1] to [AL5]) and the hourly time signal ([SIG]) screens until the one whose setting you want to change is displayed.

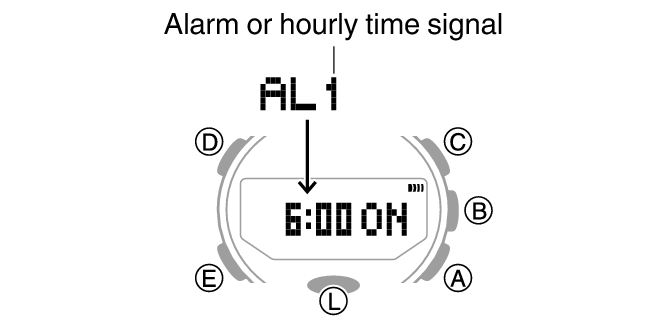

  3. 5594_81_ALM
  4. Press (D) to turn off an alarm or the hourly time signal.

  5. Each press of (D) toggles between on and off.

    Turning off all alarms will cause ALM (alarm) to disappear from the display, while disabling the hourly time signal causes SIG (hourly time signal) to disappear from the display.

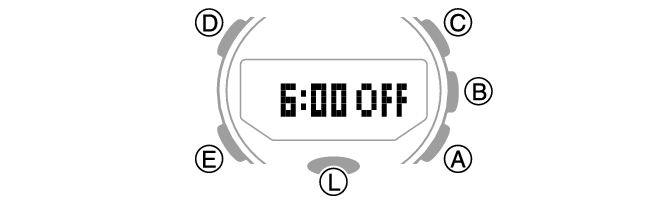

    5594_82_ALM

Note

If ALM (alarm) is still displayed, it means that another alarm is still turned on. To turn off all of the alarms, repeat steps 2 and 3 until the ALM (alarm) indicator is no longer displayed.
