Module No. 5744

Hand Alignment Adjustment

Strong magnetism or impact can cause the time indicated by the analog hands to become different from the time on the digital display. If this happens, adjust hand alignment.

Using the CASIO WATCHES Phone App to Adjust Hand Alignment

If the watch is paired with a phone, you can also use CASIO WATCHES to adjust hand alignment.

Adjusting Hand Alignment

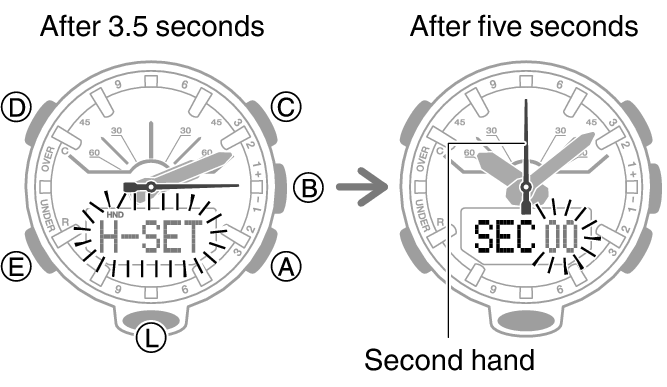

  1. Enter the Timekeeping Mode.

  2. Hold down (D) for at least five seconds. Release the button when [00] starts to flash.

  3. This enables adjustment of second hand alignment.

    5594_87_fl_HAA
  4. If the second hand is not at 12 o’clock, use (A) and (C) to align it.

  5. Press (E).

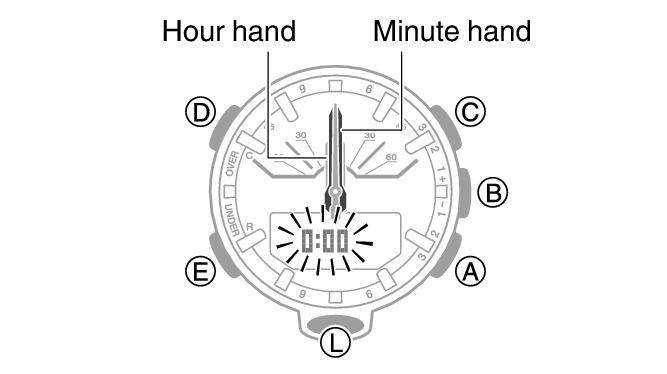

  6. This enables adjustment of the hour and minute hands.

    5594_88_HAA
  7. If the hour hand and minute hand are not at 12 o’clock, use (A) and (C) to align them.

  8. Press (D) to exit the setting screen.
