Viewing Altitude Records
You can use the Data Recall Mode to view manually recorded, auto recorded, and climb record altitude measurement data.
Viewing Recorded Data
-
Enter the Data Recall Mode.
-

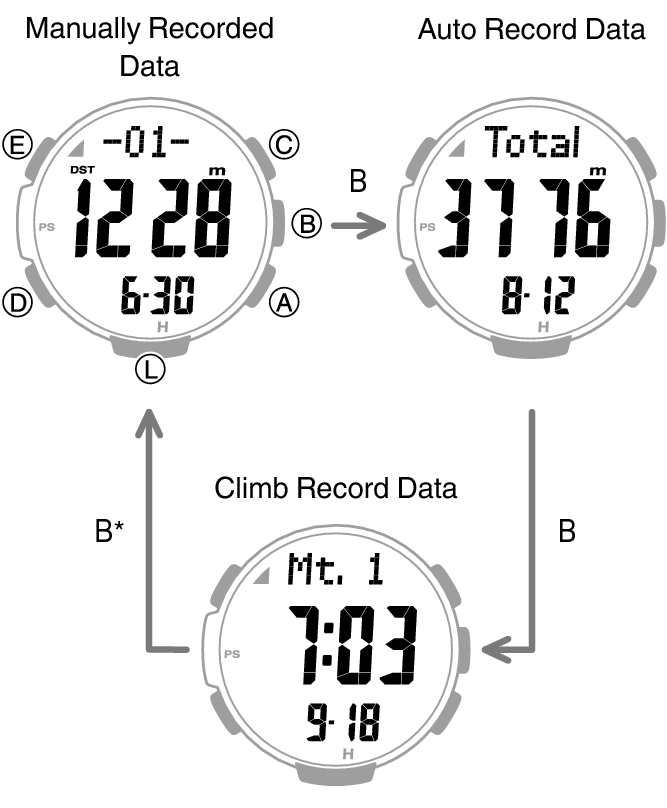

Press (B) to select manually recorded data, auto record data, or climb record data.
-
Use (A) and (C) to display the data you want to view.
This displays a record of data recorded in the Altimeter Mode.
Each press of (B) scrolls through climb data records from record 1 ([Mt.1]) up to a maximum of record 14 ([Mt.14]).
Holding down (A) or (C) scrolls through settings at high speed.

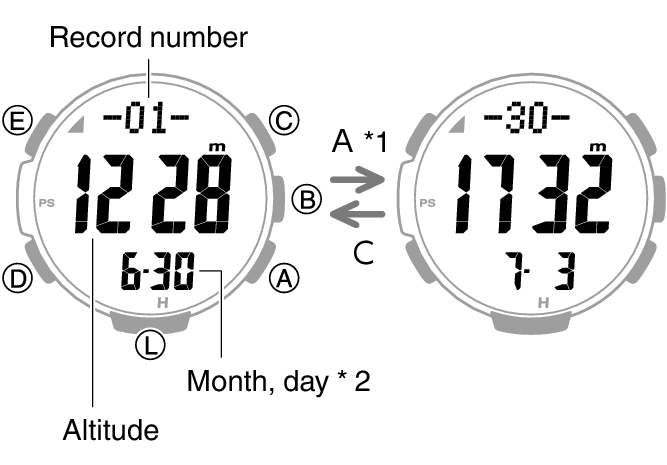

Manually Recorded Data ([-01-] to [-30-])
*1 Each press of the button scrolls through manually recorded data records from record 1 ([-01-]) up to a maximum of record 30 ([-30-]).
*2 The date (month, day) and time alternate on the display at one-second intervals.

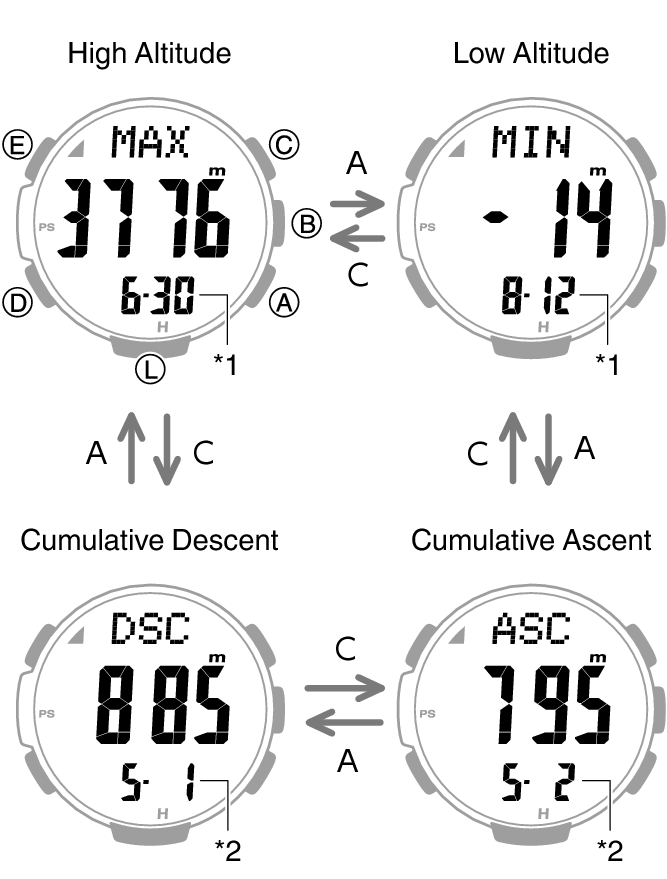

Auto Record Data
*1 The recording date (month, day) and time alternate on the display at one-second intervals.
*2 The date (month, day) and year when accumulation started alternate on the display at one-second intervals.

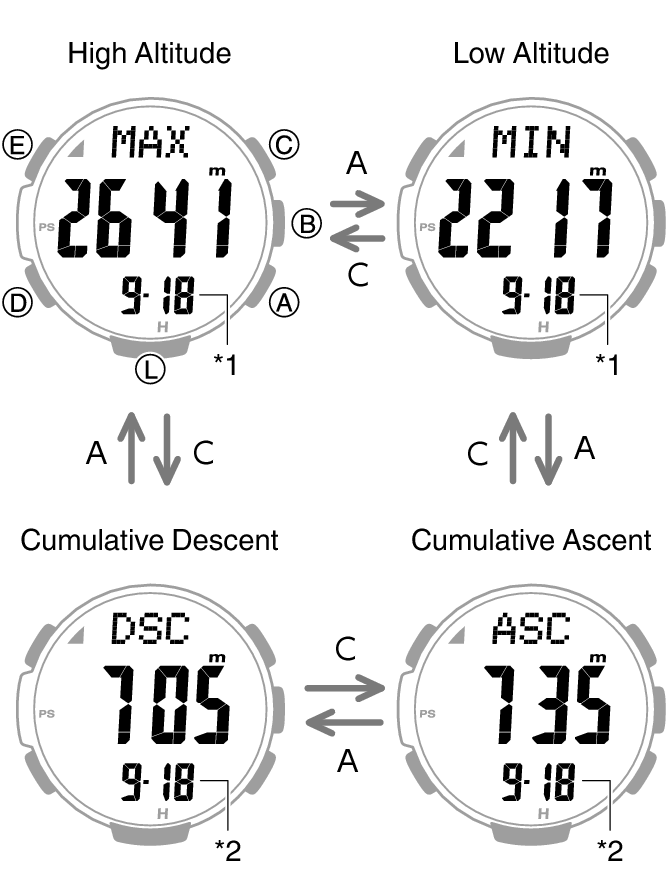

Climb Record Data ([Mt.1] to [Mt.14])
*1 The recording date (month, day) and time alternate on the display at one-second intervals.
*2 The date (month, day) and year when accumulation started alternate on the display at one-second intervals.
Note
If there is no data left in memory due to a data delete operation, error, or some other reason, [- - - -] or [0] will appear on the display.
If the cumulative ascent (ASC) or cumulative descent (DSC) value exceeds 99,999 m (327,995 feet), it will revert to 0 and continue from there.
If you do not perform any operation for about two or three minutes while in the Data Recall Mode, the watch automatically returns to the Timekeeping Mode.
Deleting Data
Note
Data cannot be deleted while a climb record data measurement operation is in progress.
Deleting a Particular Record
-
Enter the Data Recall Mode.
-
Use (B) to select the data you want to delete.
-

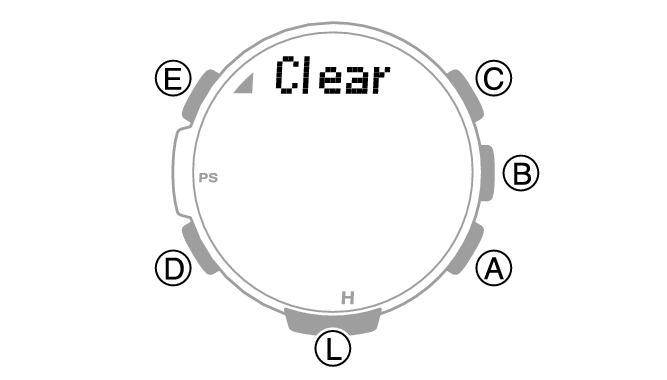

Hold down the (E) for at least two seconds. Release the button as soon as [Clear] stops flashing.
If you selected manually recorded data, use (A) and (C) to select the data you want to delete.
This deletes the record you selected.
Note that holding down (E) for at least five seconds while manually recorded data is selected will delete all manually recorded data.
Deleting All Manually Recorded Data
-
Enter the Data Recall Mode.
-
Use (B) to select manually recorded data.
-

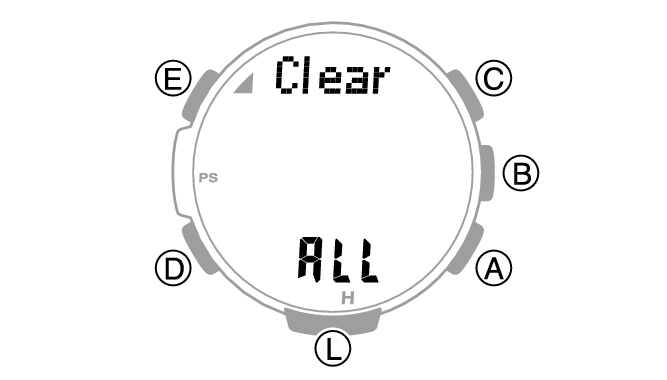

Hold down (E) for at least five seconds. Release the button when [Clear] [ALL] stops flashing.
This deletes all manually recorded data.
