Module No. 3582

Timer

The timer counts down from a start time specified by you. A beeper sounds when the end of the countdown is reached.

The beeper will not sound if battery power is low.

img_TMR_2023_2

Setting a Start Time

The countdown start time can be set in 1-minute units up to 24 hours.

  1. Enter the Timer Mode.

    2. Navigating Between Modes

  2. Hold down (E) for at least two seconds. Release the button when the hour setting starts to flash.

    3. 3582_74_TMR

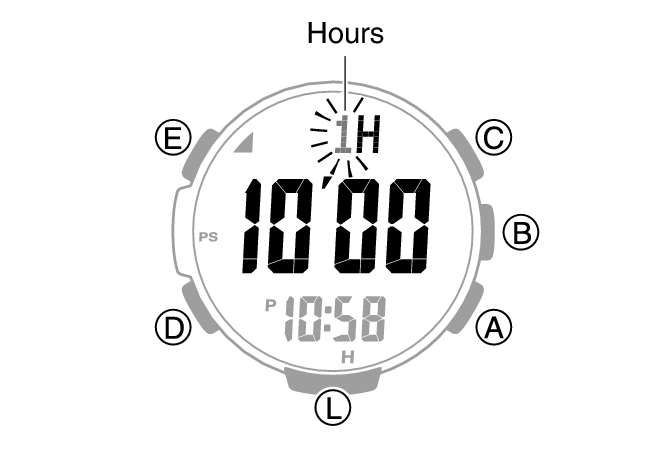

  3. Use (A) and (C) to change the timer hours setting.

    4. Holding down (A) or (C) scrolls through settings at high speed.

  4. Press (D).

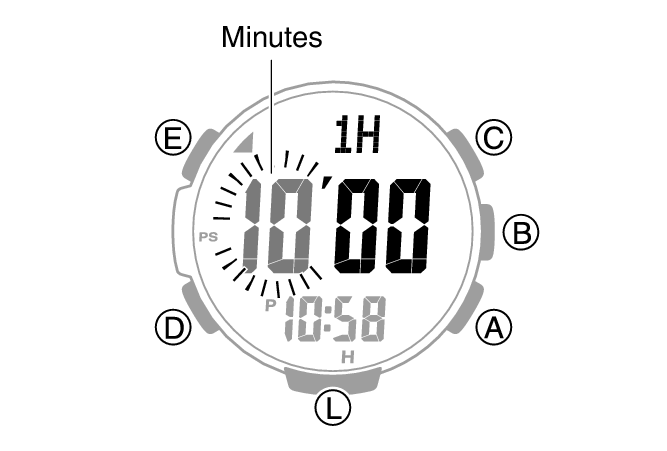

    5. This causes the minutes digits to flash.

    3582_75_TMR

  5. Use (A) and (C) to change the minutes setting.

  6. Press (E) to complete the setting operation.

Note

While the setting is being configured, the watch will exit the setting operation automatically after about two or three minutes of non-operation.

Setting a start time of “0H00'00” will perform a countdown of 24 hours.

Using the Timer

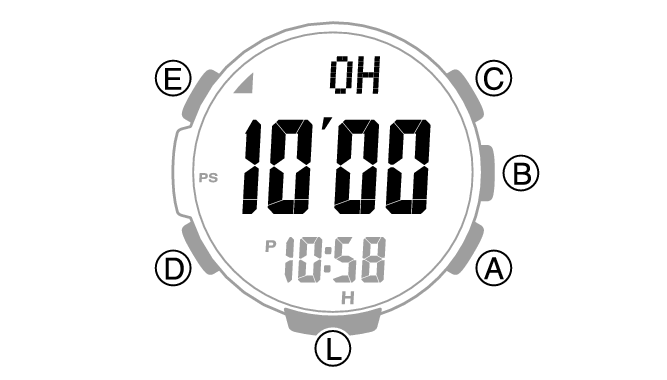

  1. Enter the Timer Mode.

    2. Navigating Between Modes
    3582_81_TMR

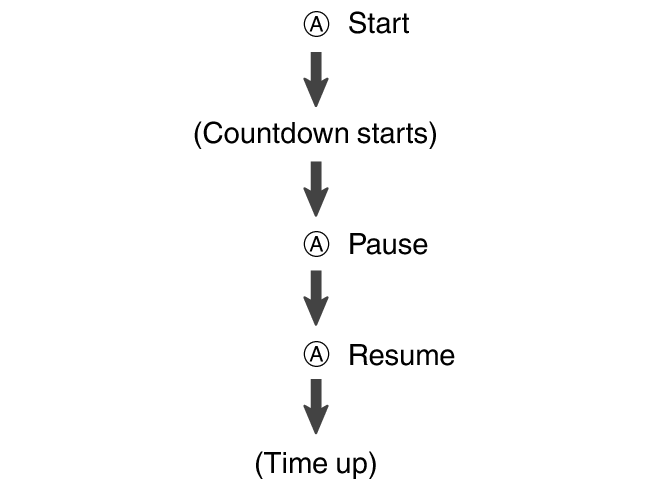

  2. Use the operations below to perform a timer operation.

    3. pr6N_fl_tmr_A_btn_sstrstu

    A beeper will sound for 10 seconds to let you know when the end of a countdown is reached.

    You can reset a paused countdown to its start time, by pressing (C).

  3. Press any button to stop the tone.
