Module No. 3582

Alarm

The watch will beep when the alarm time is reached. You can configure up to four standard daily alarms, and one daily alarm with snooze. The hourly time signal causes the watch to beep every hour on the hour.

Snooze causes the alarm to sound up to seven times, at five-minute intervals.

The alarm sound is muted in the cases described below.

When battery power is low

When watch is at Level 2 power saving

Power Saving Function
img_ALM_2023

Configuring Alarm Settings

  1. Enter the Alarm Mode.

    2. Navigating Between Modes

  2. Use (A) and (C) to select the alarm ([AL-1] to [AL-4], or [SNZ]) whose setting you want to change.

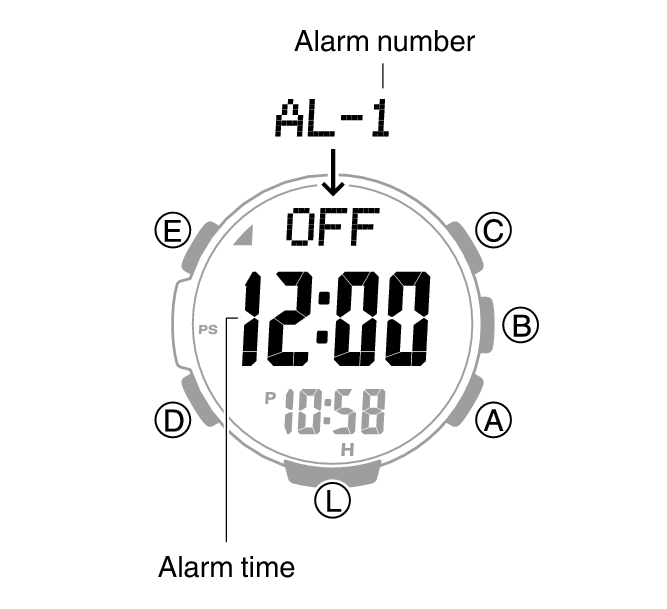

    3. 3582_27_ALM

  3. Hold down (E) for at least two seconds. Release the button when the hour setting starts to flash.

    4. The ALM (alarm) indicator is displayed when any alarm is turned on.

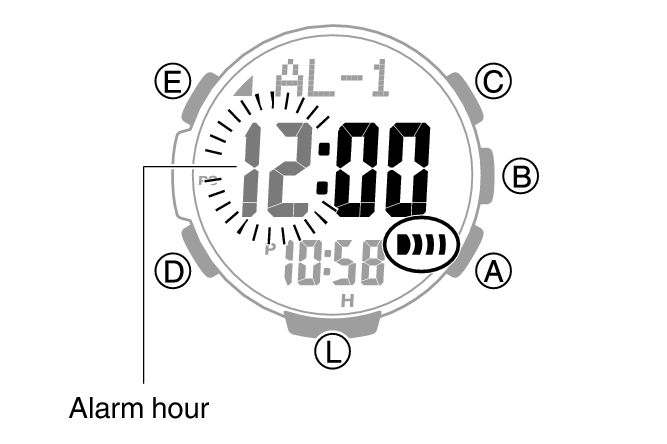

    3582_28_ALM

  4. Use (A) and (C) to change the hour setting.

    5. Holding down (A) or (C) scrolls through settings at high speed.

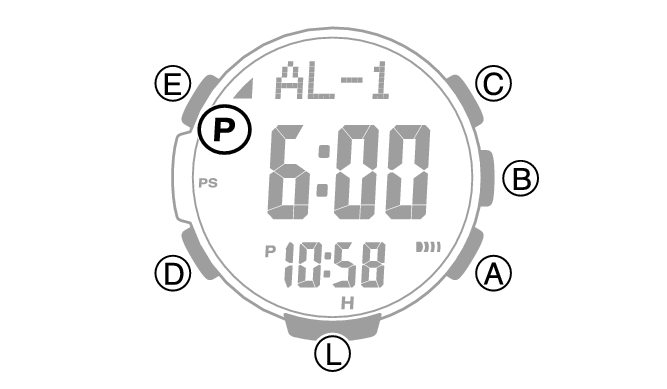

    If you are using 12-hour timekeeping, [P] indicates p.m.

    3582_29_ALM

  5. Press (D).

    6. This causes the minutes digits to flash.

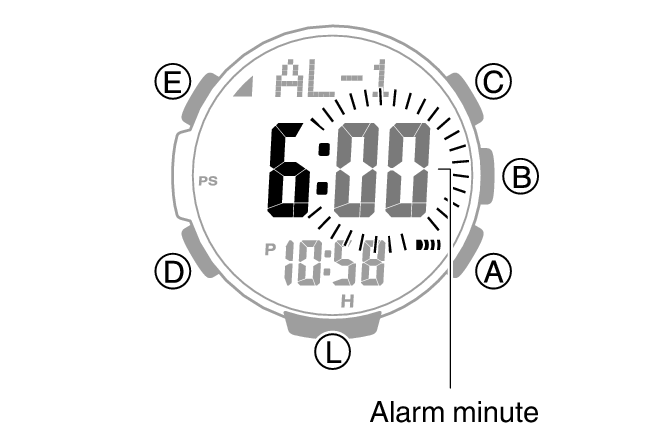

    3582_30_ALM

  6. Use (A) and (C) to set the minute setting.

  7. Press (E) to complete the setting operation.

Note

If you do not perform any operation for about three minutes while in the Alarm mode, the watch automatically returns to the Timekeeping Mode.

To stop the alarm

To stop the alarm after it starts to sound when an alarm time is reached, press any button.

Snooze causes the alarm to sound up to seven times, at five-minute intervals. To cancel a snooze alarm, turn [SNZ] off.

Turning Off an Alarm or the Hourly Time Signal

Note

A beeper sounds for 10 seconds when an alarm time is reached.

Configuring the Hourly Time Signal Setting

  1. Enter the Alarm Mode.

    2. Navigating Between Modes

  2. Press (A) or (C) to display the hourly time signal screen ([SIG]).

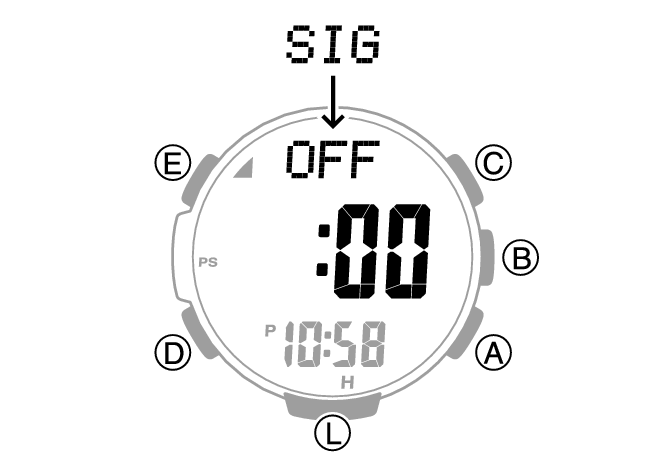

    3. 3582_31_ALM

  3. Press (B) to toggle the hourly time signal between enabled and disabled.

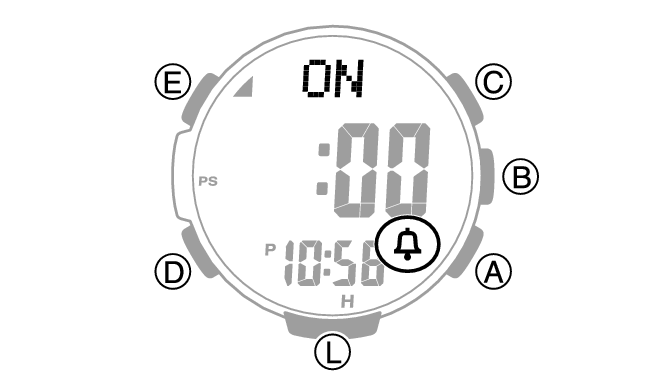

    4. SIG (hourly time signal) is shown on the display while the hourly time signal is turned on.

    3582_32_ALM

Turning Off an Alarm or the Hourly Time Signal

To stop an alarm or the hourly time signal from sounding, perform the steps below to turn it off.

To have an alarm or hourly time signal sound again, turn it back on.

Note

Indicators are displayed while any of the alarms or the hourly time signal is turned on.

The applicable indicators are not displayed while all of the alarms are turned off and/or the hourly time signal is turned off.

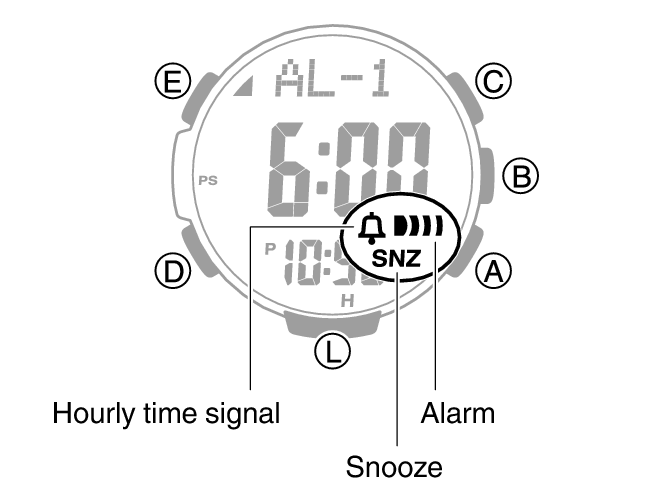

3582_33_ALM

  1. Enter the Alarm Mode.

    2. Navigating Between Modes

  2. Use (A) and (C) to scroll through the alarm ([AL-1] to [AL-4], [SNZ]) and hourly time signal (SIG) screens until the one you want to turn off is displayed.

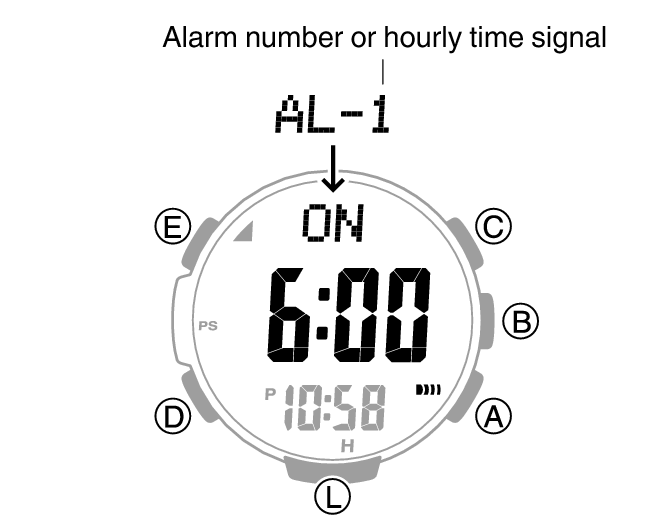

    3. 3582_34_ALM

  3. Press (B) to turn off the displayed alarm or the hourly time signal.

    4. Each press of (B) toggles between on and off.

    Turning off an alarm causes ALM (alarm) to disappear from the display. Turning off the hourly time signal causes SIG (hourly time signal) to disappear.

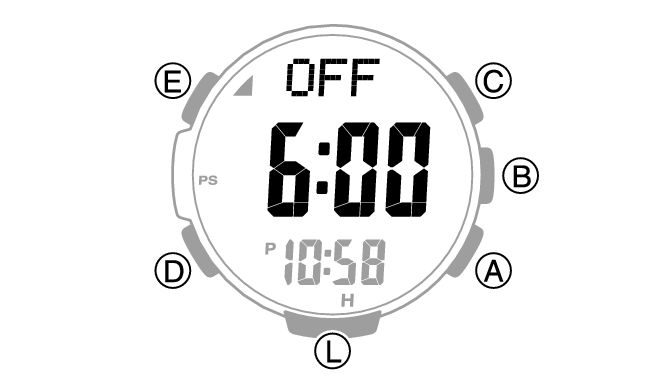

    3582_35_ALM

Note

If ALM (alarm) is still displayed after you turn off an alarm, it means that at least one of the other alarms is still turned on. To turn off all of the alarms, repeat steps 2 and 3 until the ALM (alarm) indicator is no longer displayed.
