Module No. 5737

Alarm

The watch beeps when an alarm time is reached. You can set up to five different alarms. The hourly time signal causes the watch to beep every hour on the hour.

The beeper will not sound if battery power is low.

img_ALM_2023_2

Using CASIO WATCHES to Configure Alarm Settings

If the watch is paired with a phone, you can also use the CASIO WATCHES phone app to set alarms.

Configuring Watch Settings

Configuring Alarm Settings

  1. Enter the Alarm Mode.

    2. Navigating Between Modes

  2. Press (B) to scroll through alarm numbers ([-1] to [-5]) until the alarm you want to configure is displayed.

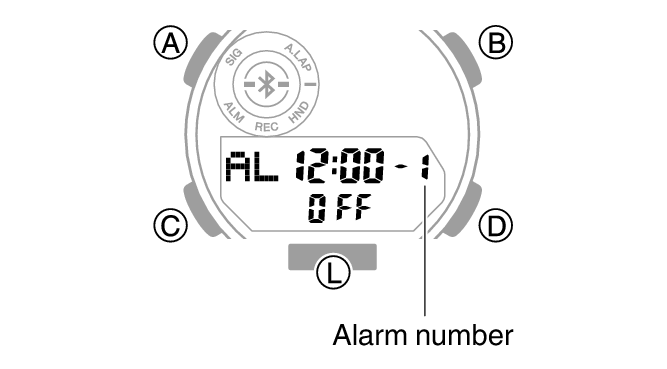

    3. 5737_32_AL

  3. Hold down (A) for at least two seconds. Release the button when the hour setting starts to flash.

    4. This is the setting mode. The hands automatically shift out of the way for easy viewing of the display and other indicators.

    While the setting is being configured, the watch will exit the setting operation automatically after about two or three minutes of non-operation.

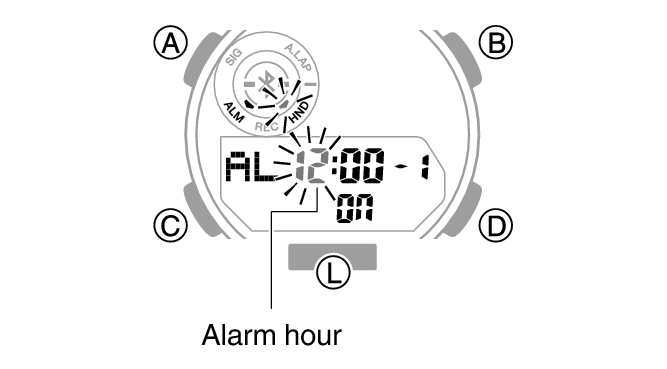

    5737_33_AL

  4. Use (B) and (D) to set the hour setting.

    5. Holding down (B) or (D) scrolls through settings at high speed.

    If you are using 12-hour timekeeping, [P] indicates p.m.

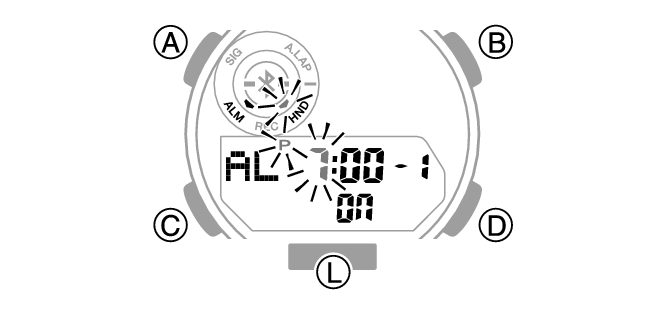

    5737_34_AL

  5. Press (C).

    6. This causes the minutes digits to flash.

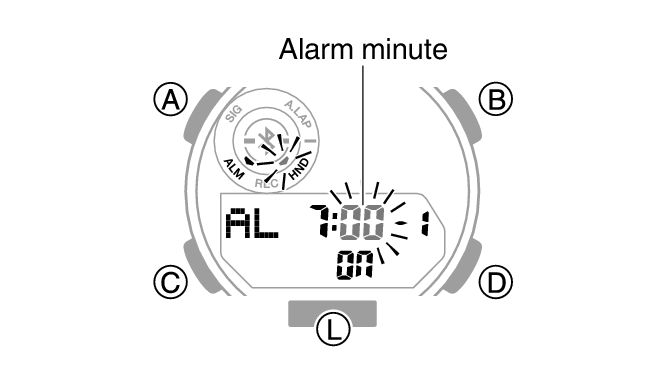

    5737_35_AL

  6. Use (B) and (D) to set the minute setting.

  7. Press (A) to complete the setting operation.

    8. This causes the segment corresponding to the alarm you turned on to appear in the Graphic Indicator B.

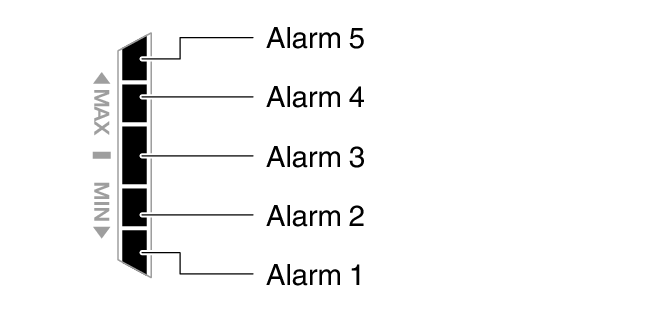

    5737_Graphic_AL

Note

A beeper sounds for 10 seconds when an alarm time is reached.

The watch automatically returns from the Alarm Mode to the Timekeeping Mode if you do not perform any operation for about two or three minutes.

Testing the alarm

In the Alarm Mode, hold down (D) to sound the alarm.

To stop the alarm

Pressing any button while the beeper is sounding stops it.

Enabling the Hourly Time Signal

  1. Enter the Alarm Mode.

    2. Navigating Between Modes

  2. Press (B) to display the hourly time signal screen ([SIG]).

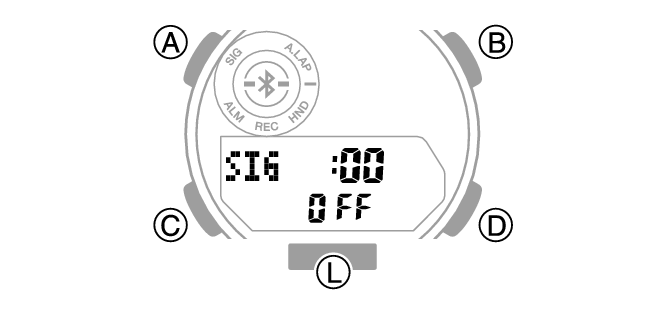

    3. 5737_36_AL

  3. Press (D) to toggle the hourly time signal between enabled (on) and disabled (off).

    4. [SIG] is displayed while the hourly time signal is enabled.

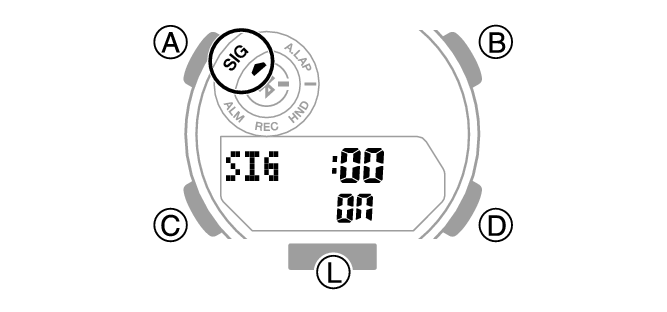

    5737_37_AL

Turning Off an Alarm or the Hourly Time Signal

To stop an alarm or the hourly time signal from sounding, perform the steps below to turn it off.

To have an alarm or hourly time signal sound again, turn it back on.

Note

Indicators are displayed while any of the alarms or the hourly time signal is turned on.

The applicable indicators are not displayed while all of the alarms are turned off and/or the hourly time signal is turned off.

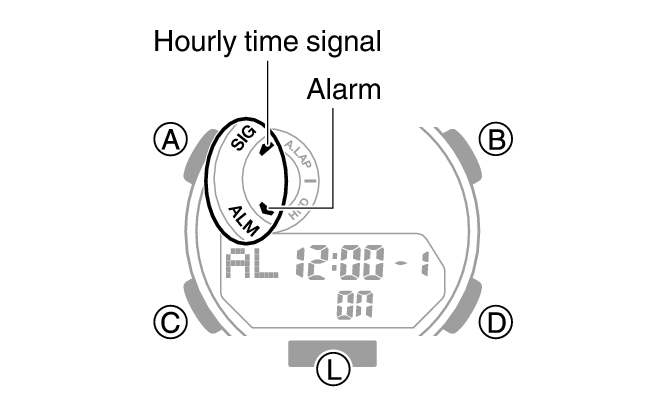

5737_38_AL

  1. Enter the Alarm Mode.

    2. Navigating Between Modes

  2. Use (B) to scroll through the alarm ([-1] to [-5]) and hourly time signal ([SIG]) screens until the one you want to turn off is displayed.

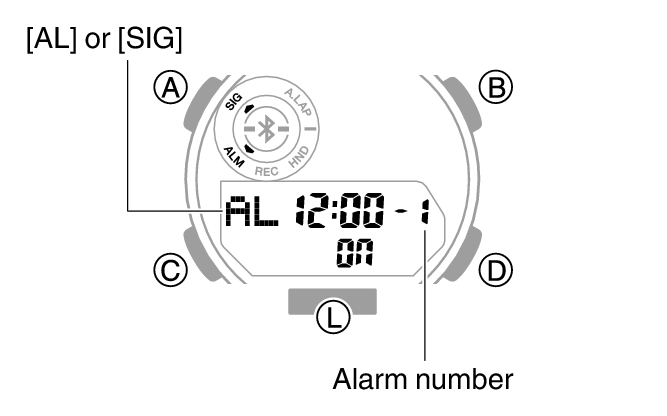

    3. 5737_39_AL

  3. Press (D) to turn off the displayed alarm or the hourly time signal.

    4. Each press of (D) toggles between ON and OFF.

    Turning off all of the alarms and the hourly time signal causes [ALM] and [SIG] to disappear from the display.

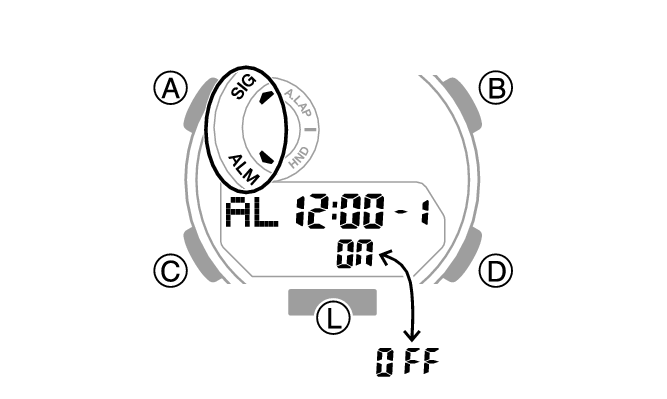

    5737_40_AL

Note

If [ALM] remains on the display, it means that at least one alarm is still turned on. To turn off all of the alarms, check Graphic Indicator B to find out which alarms are turned on, and then repeat steps 2 and 3 until all the Graphic Indicator B segments and the [ALM] indicator are no longer displayed.
