Module No. 5762

Timer

The timer counts down from a start time specified by you. A beeper sounds when the end of the countdown is reached.

img_TMR_2023_2

Setting the Countdown Start Time

The start time can be set in 1-minute units up to 60 minutes.

If a timer countdown operation is in progress, reset the timer to its current start time before performing this operation.

Using the Timer

  1. Enter the Timer Mode.

    2. Navigating Between Modes

  2. Hold down (A) for at least two seconds. Release the button when the minutes setting starts to flash.

    3. This is the setting mode. The hands automatically shift out of the way for easy viewing of the display and other indicators.

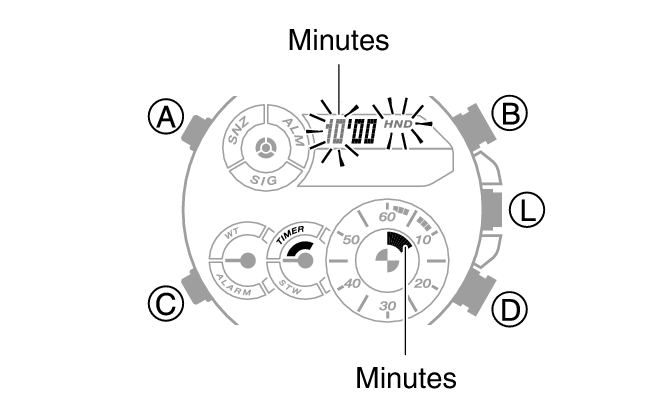

    5762_35_TMR

  3. Use (B) and (D) to change the timer minutes setting.

    4. Holding down (B) or (D) scrolls through settings at high speed.

  4. Press (A) to complete the setting operation.

Note

While the setting is being configured, the watch will exit the setting operation automatically after about two or three minutes of non-operation.

Using the Timer

  1. Enter the Timer Mode.

    2. Navigating Between Modes

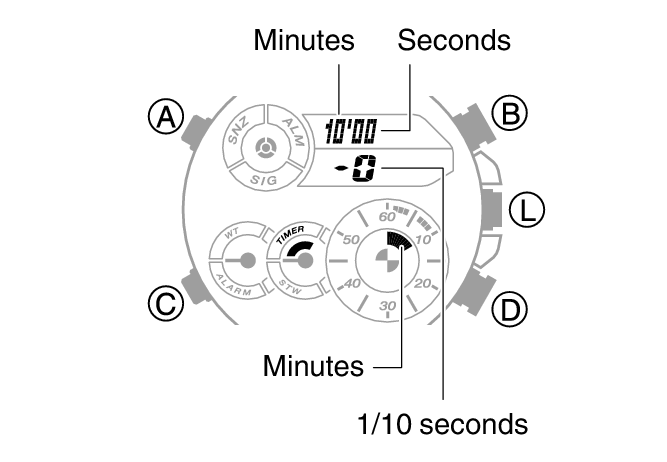

    5762_36_TMR

  2. Use the operations below to perform a timer operation.

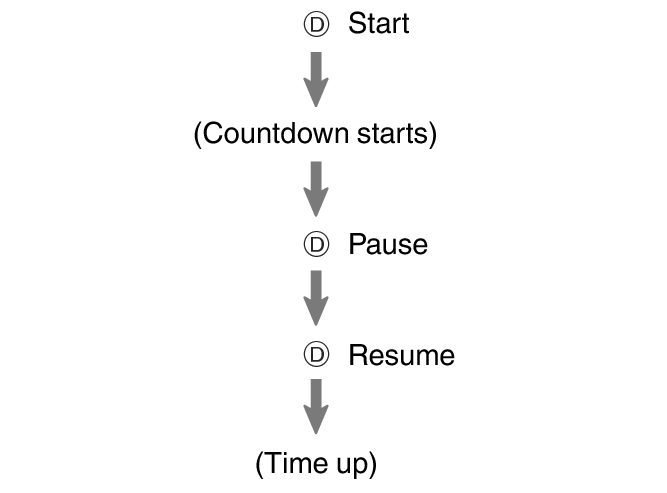

    3. fl_tmr_D_btn_sstrstu

    A beeper sounds for 10 seconds to let you know when the end of a countdown is reached.

    You can reset a paused countdown to its start time, by pressing (B).

  3. Press any button to stop the tone.
