Module No. 5762

Hand Alignment Adjustment

Strong magnetism or impact can cause the time indicated by the analog hands to become different from the time on the digital display. If this happens, adjust hand alignment.

Adjusting Hand Alignment

  1. Enter the Timekeeping Mode.

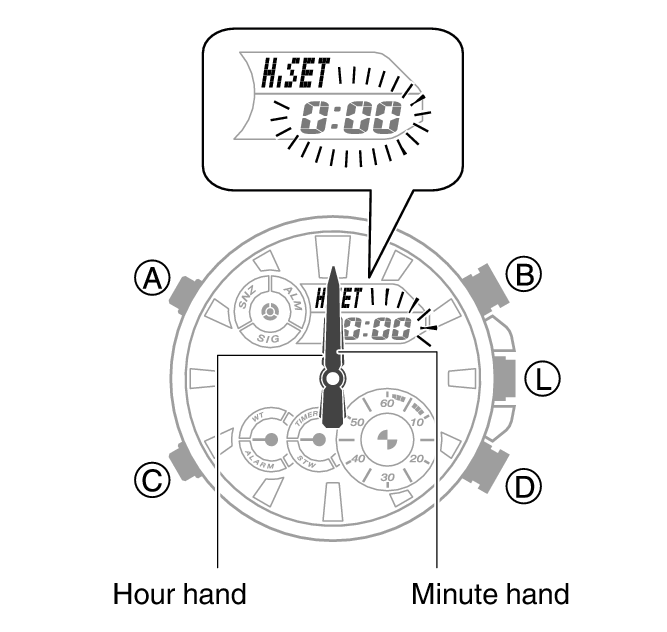

  2. Hold down (A) for at least five seconds. Release the button when [H.SET] stops flashing and [0:00] starts to flash.

  3. This enables adjustment of the hour and minute hands.

    5762_37_HAA
  4. If the hour and minute hands are not at 12 o’clock, use (B) and (D) to align them.

  5. Press (A) to complete the setting operation.
