About This Watch
This section provides an overview of the watch and introduces convenient ways it can be used.
Watch Features
Countdown from a start time specified by you. An alarm sounds when the countdown reaches zero.
You can display the current time in any one of 48 cities around the globe, as well as for UTC (Coordinated Universal Time).
An alarm sounds whenever a time specified by you is reached.
Use the Stopwatch Mode to measure elapsed time. You can use one-press timing to start a stopwatch elapsed time measurement operation with a single button press in the Timekeeping Mode. You can also specify a target time.
Note
The illustrations included in this operation guide have been created to facilitate explanation. An illustration may differ somewhat from the item it represents.

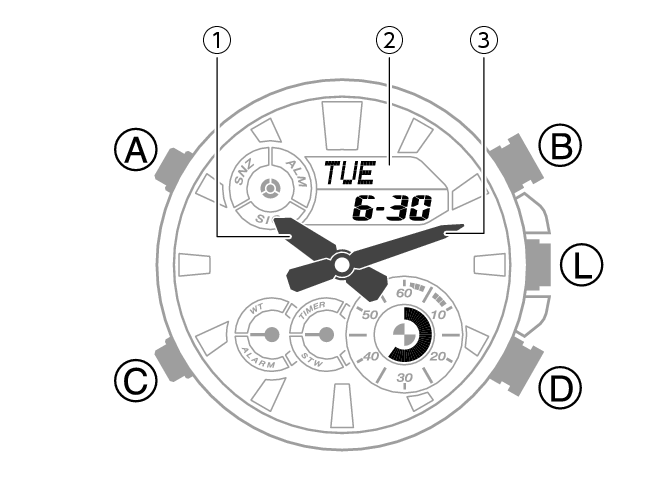

General Guide
-
Hour hand
-
LCD
-
Minute hand
A button
Holding down this button for at least two seconds in the Timekeeping Mode displays the setting screen.
Pressing this button while any setting screen is displayed exits the setting screen.
B button
Pressing this button in the Timekeeping Mode cycles between displays.
Pressing this button while any setting screen is displayed changes the setting.
C button
Each press cycles between watch modes.
In any mode, hold down this button for at least two seconds to return to the Timekeeping Mode.
D button
Pressing this button while any setting screen is displayed will change the setting.
In the Timekeeping Mode, press this button to enter the Stopwatch Mode.
L button
Press to turn on illumination.

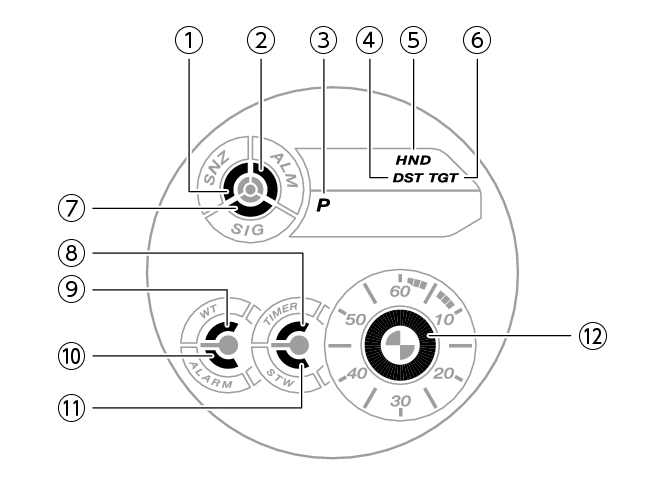

Watch Face and Display Indicators
-
Displayed while the snooze alarm is turned on.
-
Displayed while an alarm is turned on.
-
Displayed during p.m. times while 12-hour timekeeping is being used.
-
Displayed while the watch is indicating summer time.
-
Flashes while the watch’s hands are shifted for easier reading.
-
Displayed while in the Stopwatch Mode when the Target Time function is enabled.
-
Displayed while the hourly time signal is enabled.
-
Displayed while in the Timer Mode.
-
Displayed while in the World Time mode.
-
Displayed while in the Alarm Mode.
-
Displayed while in the Stopwatch Mode.
-
Graphic display area operation is linked with operations in each mode.

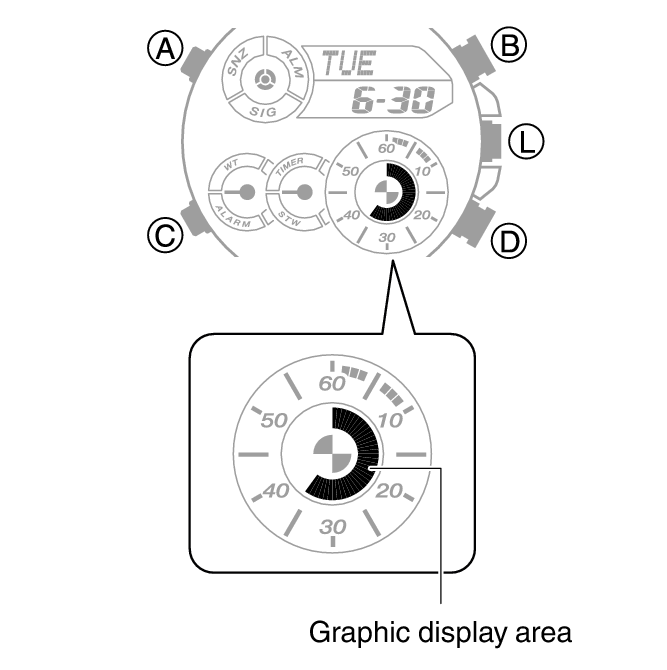

Graphic Display Area
Graphic display area operation is linked with operations in each watch mode.
In the Alarm Mode, the graphic display is blank.
Timekeeping Mode
Graphic display contents move in coordination with current time seconds.
Stopwatch Mode
While the Target Time function is enabled, the graphic display area indicates to what extent you attained your target time. While the Target Time function is disabled, graphic display contents move in coordination with the stopwatch time minutes.
Timer Mode
Graphic display contents move in coordination with the remaining timer time.
World Time
Graphic display contents move in coordination with World Time seconds.

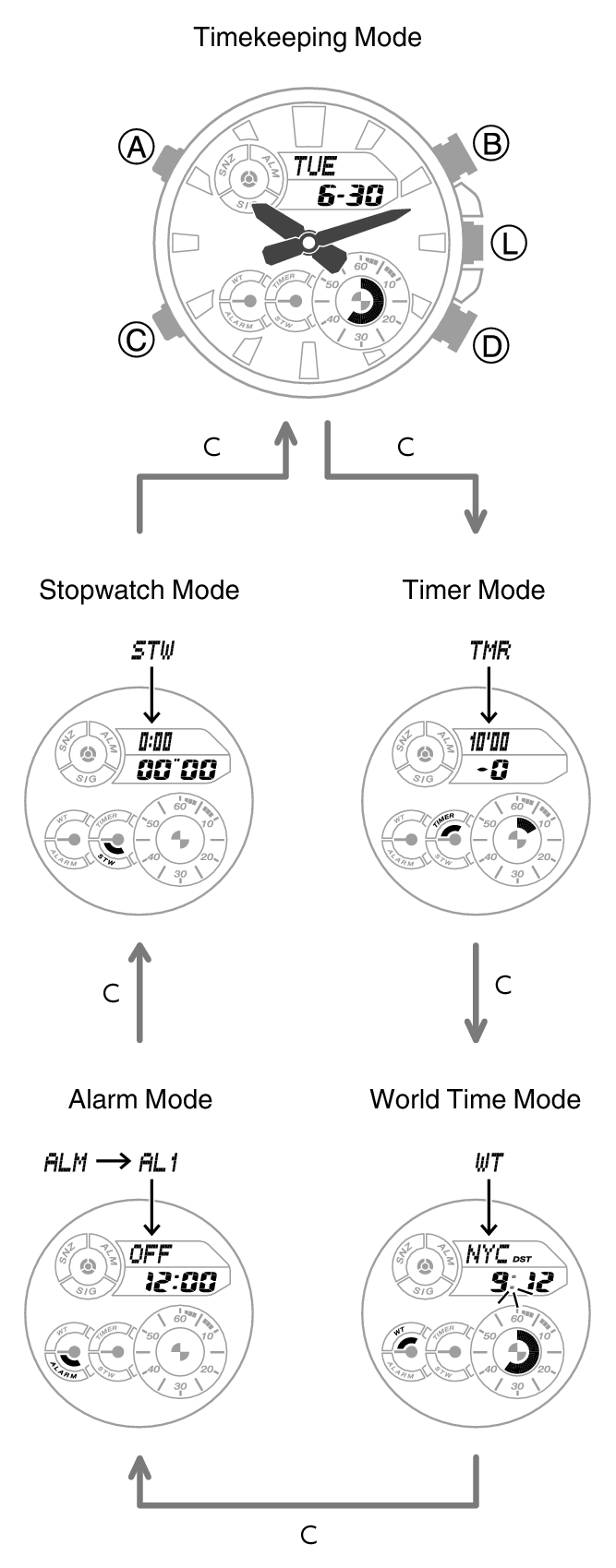

Navigating Between Modes
Each press of (C) cycles between watch modes.
In any mode, hold down (C) for at least two seconds to return to the Timekeeping Mode.

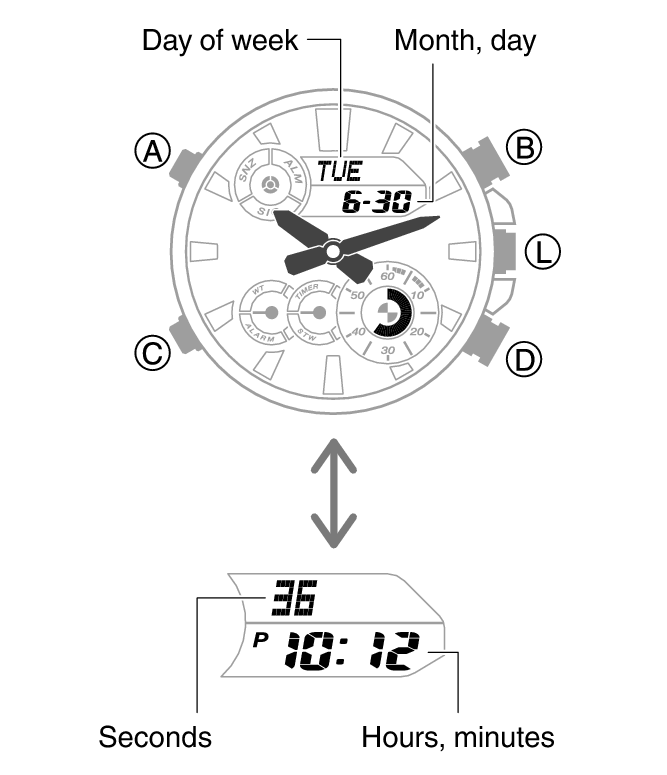

Cycling Between Timekeeping Mode Digital Display Contents
Each press of (B) in the Timekeeping Mode cycles the display information as shown below.
To display the Home City in the Timekeeping Mode, press (A).

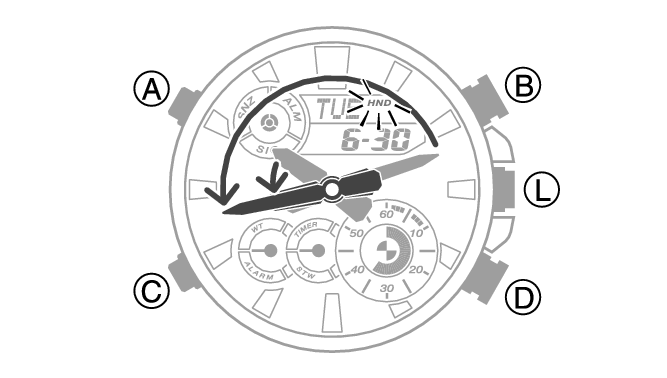

Shifting Hands to Read the Digital Display
Hand shift moves the hands out of the way for easy viewing of display information.
-
While holding down (L), press (C).
-
To return the hands to their normal timekeeping positions, hold down (C) as you press (L) again or press (C).
This shifts the analog hands to allow easy viewing of display information.
Note
If you leave the watch with its hands shifted and do not perform any operation for about one hour, the hands resume normal timekeeping automatically.

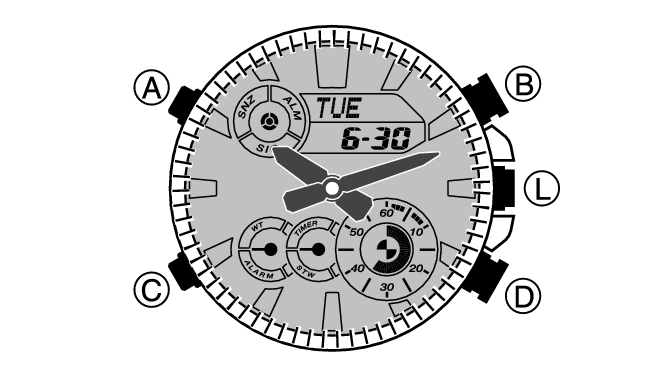

Viewing the Face in the Dark
You can use the LED light to illuminate the display for easy reading in the dark.
Turning On Illumination
Press (L) to turn on illumination.
Illumination turns off automatically if an alarm starts to sound.
Illumination is disabled while the hands are moving at high speed.
The light may flicker when it turns on or off.
Specifying the Illumination Duration
You can select either 1.5 seconds or three seconds as the illumination duration.
-
Enter the Timekeeping Mode.
-

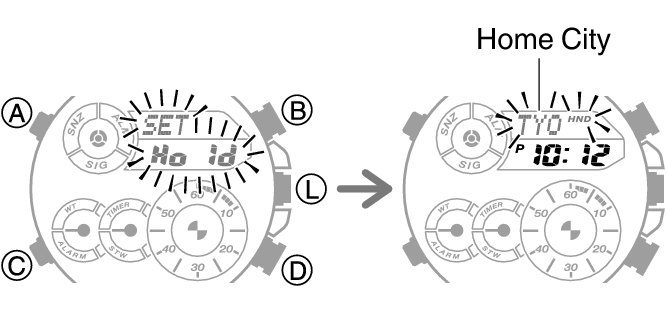

Hold down (A) for at least two seconds until the name of the currently selected Home City is displayed.
-

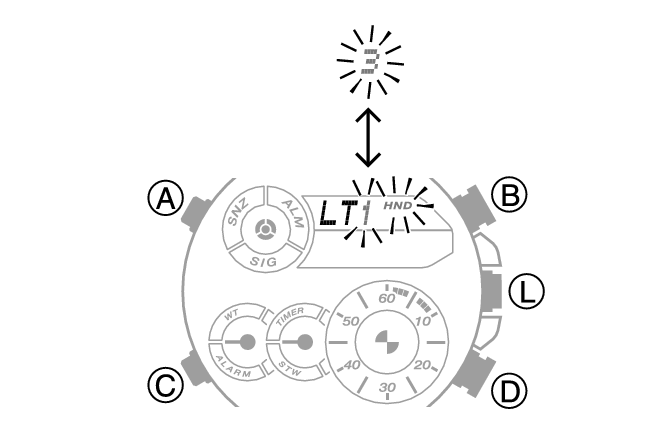

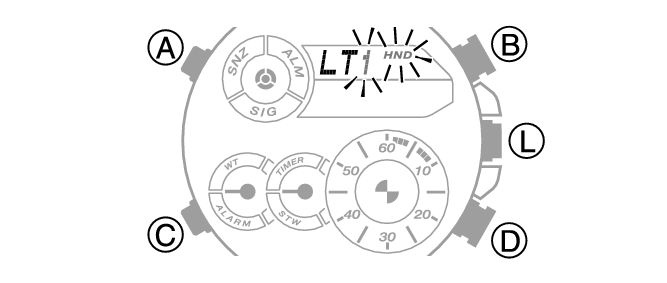

Press (C) 10 times to display [LT1] or [LT3].
-
Press (D) to select an illumination duration.
-
Press (A) to exit the setting screen.
This is the setting mode. The hands automatically shift out of the way for easy viewing of the display and other indicators.
[1]: 1.5-second illumination
[3]: 3-second illumination
Note
While the setting is being configured, the watch will exit the setting operation automatically after about two or three minutes of non-operation.
