Module No. 5741

Other Settings

This section explains other watch settings you can configure.

Enabling the Button Operation Tone

Use the procedure below to enable or disable the tone that sounds when you press a button.

  1. Enter the Timekeeping Mode.

    2. Navigating Between Modes

  2. Loosen the crown and then pull it out.

    3. The currently selected Home City will appear on the display.

    5741_HT_SET_common

  3. Press (B) twice.

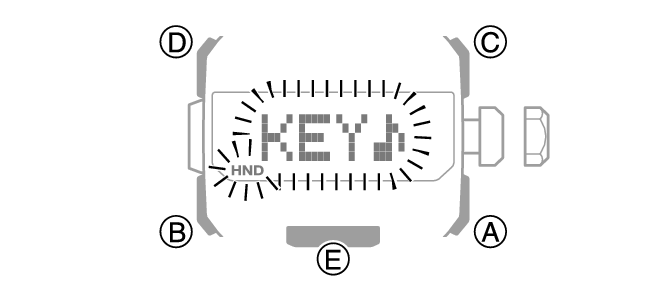

    4. This causes [KEY♪] or [MUTE] to flash on the display.

    5741_95_other

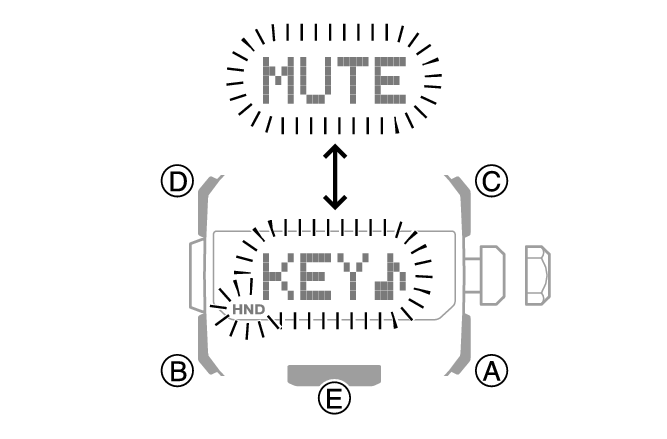

  4. Rotate the crown to select either [KEY♪] or [MUTE].

    5. [KEY♪]: Operation tone enabled.

    [MUTE]: Operation tone muted.

    5741_96_other

  5. Push the crown back in and then lock it.

Note

If you do not perform any operation for about two minutes after pulling out the crown, crown operations will automatically become disabled. If that happens, push the crown back in and then pull it out again.

Note that alarm and timer tones still sound even while the operation tone is muted.

Configuring Power Saving Function Settings

  1. Enter the Timekeeping Mode.

    2. Navigating Between Modes

  2. Loosen the crown and then pull it out.

    3. The currently selected Home City will appear on the display.

    5741_HT_SET_common

  3. Press (B) six times.

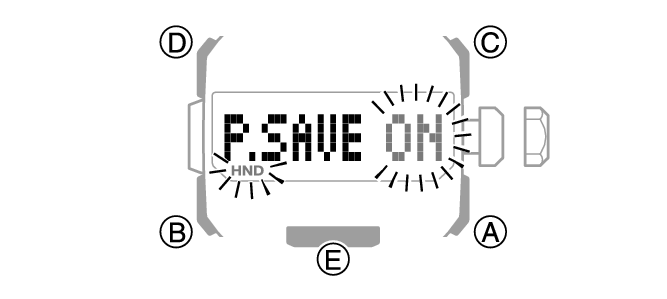

    4. This displays [P.SAVE].

    5741_97_other

  4. Rotate the crown to turn the setting on or off.

    5. [ON]: Power Saving enabled.

    [OFF]: Power Saving disabled.

  5. Push the crown back in and then lock it.

Note

If you do not perform any operation for about two minutes after pulling out the crown, crown operations will automatically become disabled. If that happens, push the crown back in and then pull it out again.

For details about Power Saving, refer to the information below.

Power Saving Function

Resetting Watch Settings

This section explains how to return the watch settings below to their initial factory defaults.

Watch Settings

Compass

Altimeter

Barometer

Thermometer

Altitude recording

Stopwatch

Timer

Alarm

  1. Enter the Timekeeping Mode.

    2. Navigating Between Modes

  2. Loosen the crown and then pull it out.

    3. The currently selected Home City will appear on the display.

    5741_HT_SET_common

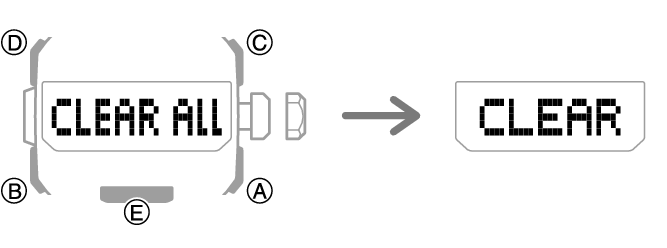

  3. Hold down (D) for at least seven seconds. Release the button when the displayed message changes from [CLEAR ALL] to [CLEAR].

    4. 5741_98_fl_other

  4. Push the crown back in and then lock it.

Important!

Reset cannot be performed while Route Log is enabled.

Recording Waypoints and Their Altitudes (Route Log)

Note

If you do not perform any operation for about two minutes after pulling out the crown, crown operations will automatically become disabled. If that happens, push the crown back in and then pull it out again.

Resetting the watch also deletes information for pairing the watch with a phone, and unpair them.
