Module No. 5741

Timer

The timer counts down from a start time specified by you. A beeper sounds when the end of the countdown is reached.

The beeper will not sound if battery power is low.

img_TMR_2022

Using the CASIO WATCHES Phone App to Configure Timer Settings

If the watch is paired with a phone, you can also use the CASIO WATCHES phone app to set the timer start time.

Setting a Start Time

The start time can be set in 1-minute units up to 60 minutes.

  1. Enter the Timer Mode.

  2. Loosen the crown and then pull it out.

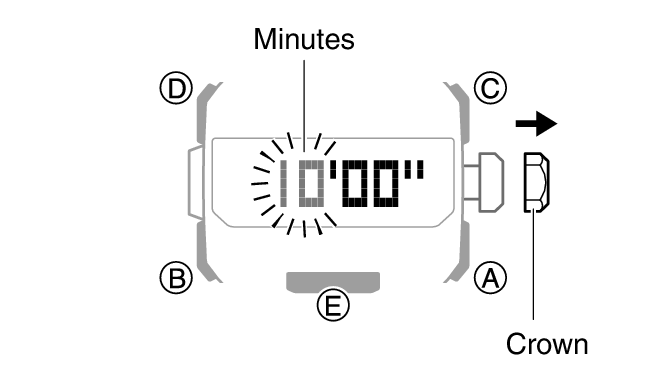

  3. This causes the minutes digits to flash.

    5741_90_TMR
  4. Rotate the crown to change the timer start time minutes.

  5. Push the crown back in and then lock it.

Note

If you do not perform any operation for about two minutes after pulling out the crown, crown operations will automatically become disabled. If that happens, push the crown back in and then pull it out again.

Using the Timer

  1. Enter the Timer Mode.

  2. Use the operations below to perform a timer operation.

  3. pr6N_fl_tmr_A_btn_sstrstu_60per

    A beeper sounds for 10 seconds to let you know when the end of a countdown is reached.

    You can reset a paused countdown to its start time, by pressing (C).

  4. Press any button to stop the tone.
