Module No. 5736

Timer

The timer counts down from a start time specified by you. A beeper sounds when the end of the countdown is reached.

The beeper is muted when battery power is low.

img_TMR_2023_2

Using CASIO WATCHES to Configure Timer Settings

If the watch is paired with a phone, you can also use the CASIO WATCHES phone app to set the timer start time.

Configuring Watch Settings

Setting the Countdown Start Time

The countdown start time can be set in 1-second units up to 24 hours.

If a timer countdown operation is in progress, reset the timer to its current start time before performing this operation.

Using the Timer

  1. Enter the Timer Mode.

    2. Navigating Between Modes

  2. Hold down (A) for at least two seconds. Release the button when the hour setting starts to flash.

    3. This is the setting mode. The hands automatically shift out of the way for easy viewing of the display and other indicators.

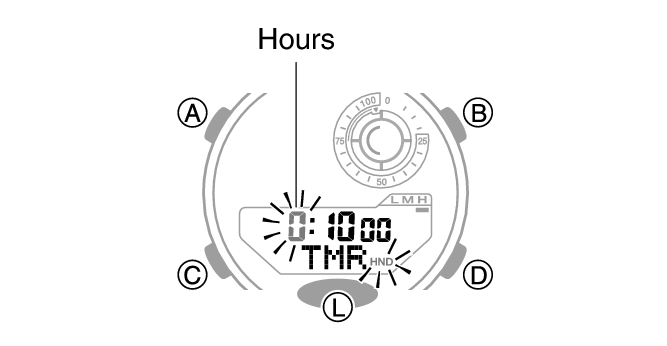

    5736_41_TR

  3. Use (B) and (D) to change the timer hours setting.

    4. Holding down (B) or (D) scrolls through settings at high speed.

  4. Press (C).

    5. This causes the minutes digits to flash.

    5736_42_TR

  5. Use (B) and (D) to change the timer minutes setting.

  6. Press (C).

    7. This causes the seconds digits to flash.

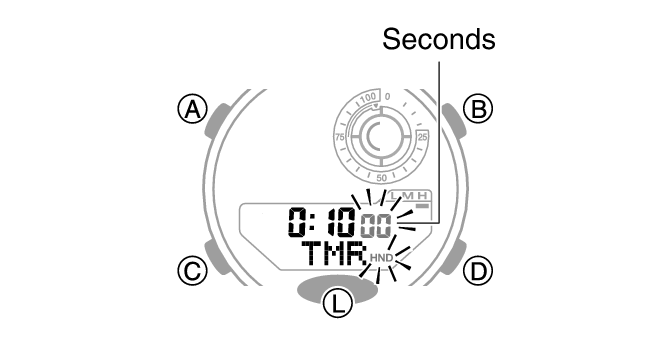

    5736_43_TR

  7. Use (B) and (D) to change the seconds setting.

  8. Press (A) to exit the setting screen.

Note

Setting a start time of [0:00 00] will perform a countdown of 24 hours.

While the setting is being configured, the watch will exit the setting operation automatically after about two or three minutes of non-operation.

Using the Timer

  1. Enter the Timer Mode.

    2. Navigating Between Modes

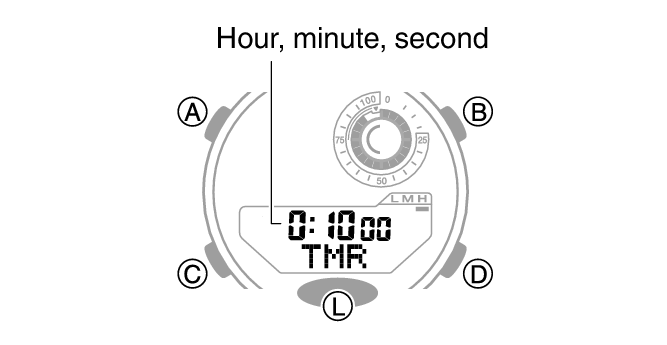

    5736_44_TR

  2. Use the operations below to perform a timer operation.

    3. fl_tmr_D_btn_sstrstu

    A beeper sounds for 10 seconds to let you know when the end of a countdown is reached.

    You can reset a paused countdown to its start time, by pressing (B).

  3. Press any button to stop the tone.
