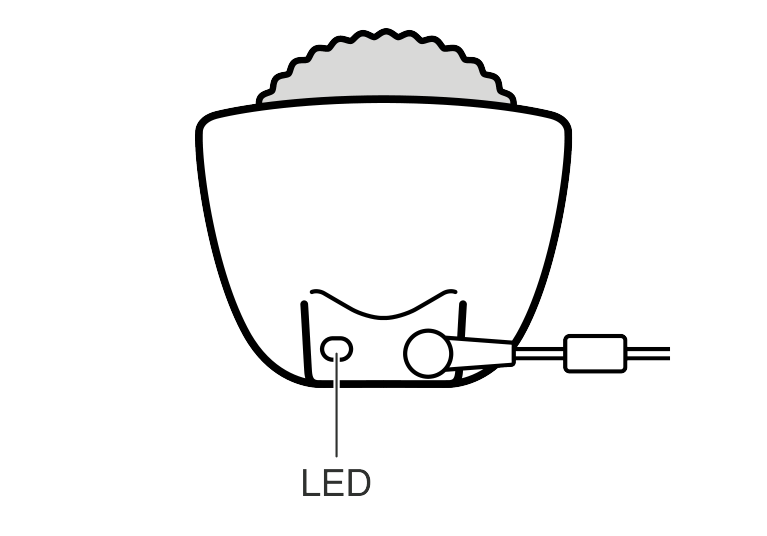

LED Indicator
Normal
|
LED color |
 White |
 Green |
 Orange |
 Light blue |
|
Lighting pattern |
Lit |
|||
|
Status |
Moflin not found |
Charging completed |
Charging |
Charging paused* |
Charging has stopped temporarily due to excessive heat. Once the charger cools down, charging will automatically restart.
Error
|
LED color |
Orange |
Light blue |
 Red |
|
|
Lighting pattern |
Flashing |
Flashing |
Lit |
Flashing |
|
Error type |
Charging error |
Overheating error |
Safety error |
|
|
What to check |
Take your Moflin out of the Moflin Bed and remove any objects (particularly anything metallic) that are in the Moflin Bed. |
Take your Moflin out of the Moflin Bed and remove any objects (particularly anything metallic) that are in the Moflin Bed. |
||
|
What to do after checking |
Once the LED is lit white, place your Moflin in the Moflin Bed again to charge your Moflin. |
Set up the Moflin Bed again in an environment that is within the recommended operating temperature range (5°C to 35°C (41°F to 95°F)). The LED will light white once the temperature drops. Check that the LED is lit white and then try charging your Moflin again. |
If you have tried checking all the items listed above and the error persists, stop charging and refer to the Support Page (US site / UK site). Otherwise, submit an inquiry to CASIO using the contact details provided in the separate warranty. |
|
Important!
Do not place the Moflin Bed in the following locations:
Close to a place where water is used
A place exposed to direct sunlight
A place exposed to hot air
A place subject to high temperatures
A place subject to extremely low temperatures
A sloping or uneven surface
Only connect the Moflin Bed to the AC adaptor provided.
Only charge your Moflin in the Moflin Bed.
Even when you are not using your Moflin, you should charge your Moflin’s battery until the LED turns green at least once every six months to prevent over-discharging.
After the charging completed LED (green) lights, leaving your Moflin in Moflin Bed to charge will not affect the charging cycle of the lithium battery.
Charging automatically stops once charging is completed.
Never put anything other than your Moflin into the Moflin Bed.
