This section provides an overview of the watch and introduces convenient ways it can be used.

Watch Features

Phone Linking

The watch supports connection and communication with a Bluetooth capable phone.

Solar Charging

Sunlight and artificial light generate electricity for watch operation as it charges.

Time Signal Reception

The watch receives a radio signal containing time information and uses it to keep its time setting accurate.

World Time

Displays the current time in any one of 27 cities (38 time zones) around the globe and UTC.

Alarm

A beeper sounds when the alarm time you set is reached.

Stopwatch

You can use the stopwatch to measure up to 24 hours of elapsed time in 1-second units.

Timer

Countdown from a start time specified by you. An alarm sounds when the countdown reaches zero.

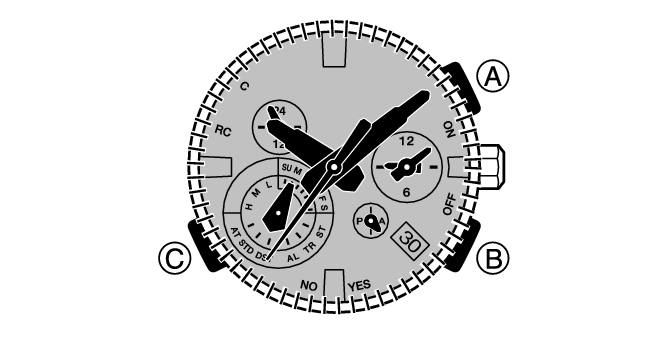

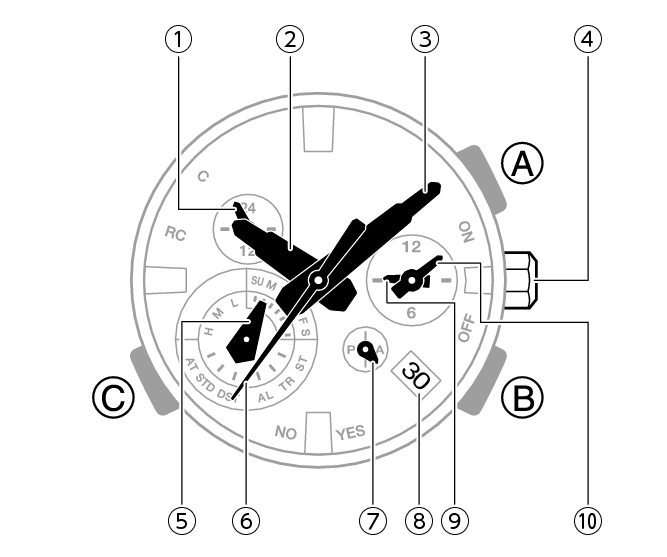

General Guide

1. 24-hour hand

2. Hour hand

3. Minute hand

4. Crown

5. Mode hand

6. Second hand

7. Small 24-hour hand

8. Day indicator

9. Small hour hand

10. Small minute hand

A button

In the Calendar Mode or Alarm Mode, press this button to illuminate the face.

B button

Pressing this button causes the second hand to indicate the last receive operation result.

C button

Each press cycles between watch modes.
Holding down this button for at least one second in any mode enters the Calendar Mode.

Watch Face Items

1. [C]

The second hand will point to [C] if the watch is connected with a phone.

2. [RC]

The second hand points to this mark while calibration signal reception is in progress.

3. Alarm on/off setting

In the Alarm Mode, the second hand indicates if the alarm is enabled or disabled.

[ON]: Alarm enabled

[OFF]: Alarm disabled

4. Last receive result/Auto time correction setting

The second hand points to [Y(YES)] or [N(NO)] to indicate the result of the last auto time correction operation based on time signal reception or connection with a phone.

[Y(YES)]: Auto time correction successful

[N(NO)]: Auto time correction failed

The second hand indicates whether auto time correction is enabled or disabled.

[Y(YES)]: Auto time correction enabled

[N(NO)]: Auto time correction disabled

5. Battery level

The battery level is indicated by the mode hand after you enter the Calendar Mode.

6. Summer time setting

The mode hand points to the current summer time setting.

7. Day of week

In the Calendar Mode, the mode hand points to the day of the week in the Home City.

8. [ST]

In the Stopwatch Mode, the mode hand points to [ST].

9. [TR]

In the Timer Mode, the mode hand points to [TR].

10. [AL]

In the Alarm Mode, the mode hand points to [AL].

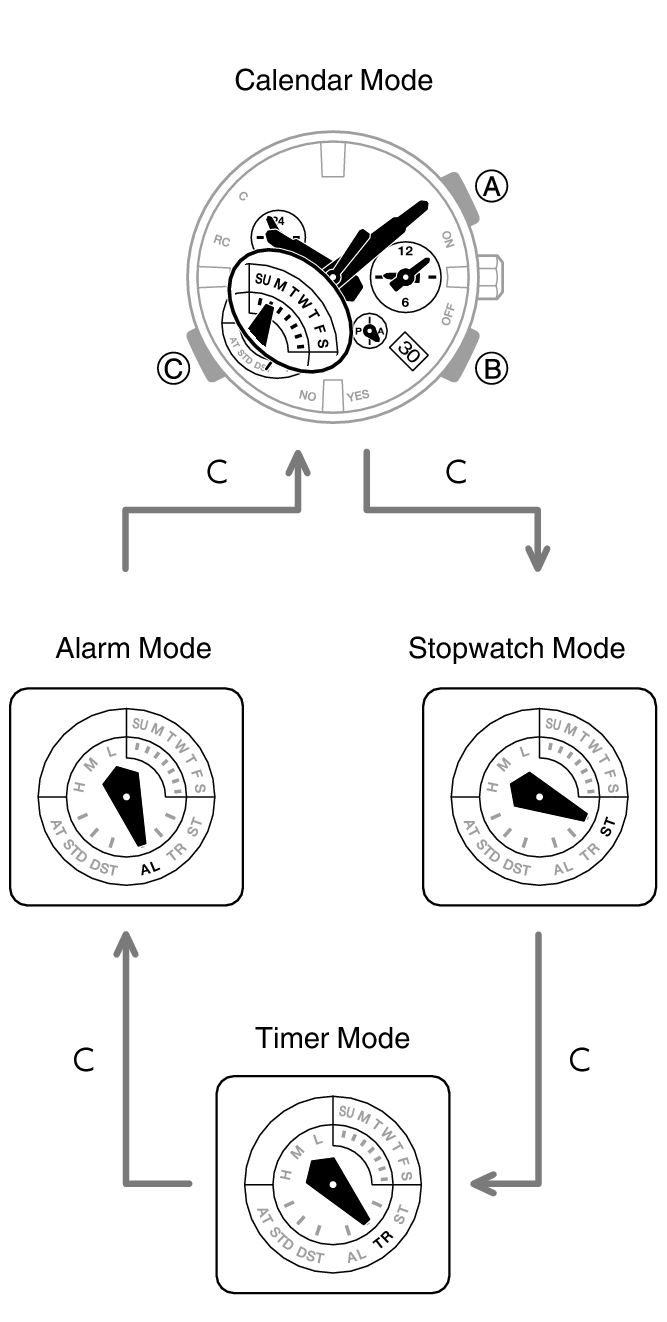

Navigating Between Modes

Each press of (C) cycles between watch modes.

Hold down (C) for at least one second to enter the Calendar Mode.

After you enter the Calendar Mode, the mode hand first indicates the battery charge level and then the current day of the week.

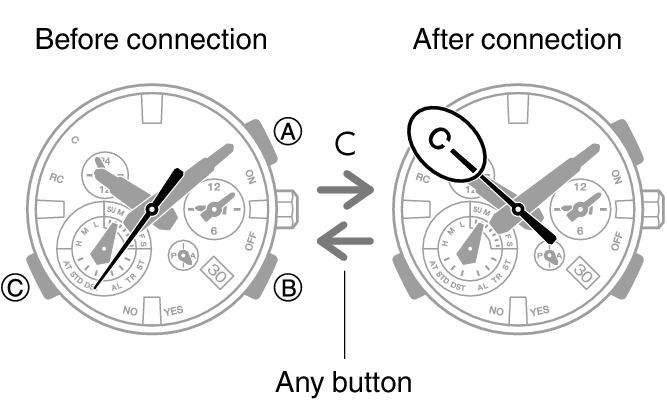

Connecting with a Paired Phone

Hold down (C) for at least 2.5 seconds to connect with a phone.

To disconnect, press any button.

Mode Overview

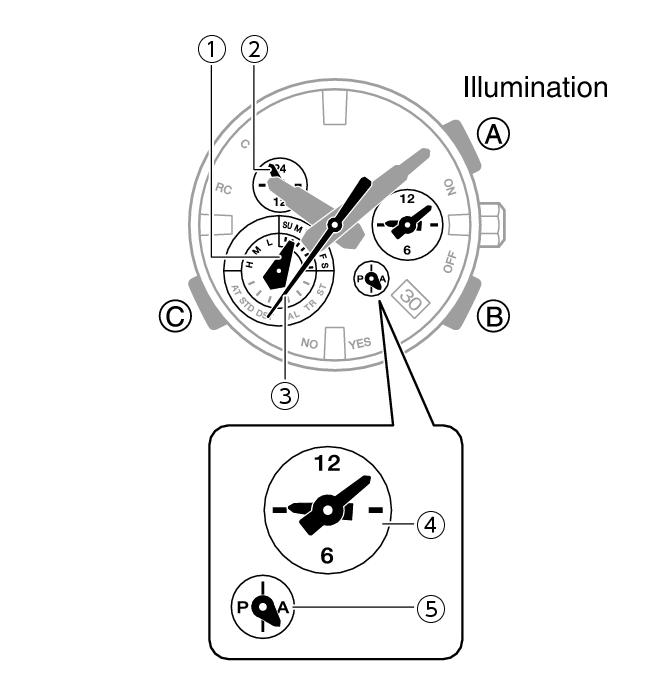

Calendar Mode

The main hour, minute, and second hands indicate the current time.

The small hour and minute hands indicate the current World Time.

1. Day of the week at current location

2. Current location 24-hour time

One revolution every 24 hours.

3. Current location seconds

4. World Time

5. World Time 24-hour time

The hand points to the A-side for a.m. times, and to the P-side for p.m. times.

Swapping the Current Location Time and World Time

Hold down (A) for at least three seconds.

Time Adjustment Using a Time Calibration Signal

Hold down (B) for at least 0.5 seconds until the second hand points to [RC].

A manual time calibration signal receive operation cannot be performed while the watch is paired with a phone.

Connecting with a Paired Phone to Correct the Watch’s Time

Hold down (B) for at least 0.5 seconds until the second hand points to [C].

Searching for a Paired Phone

Hold down (B) for at least 3.5 seconds until the second hand points to [C].

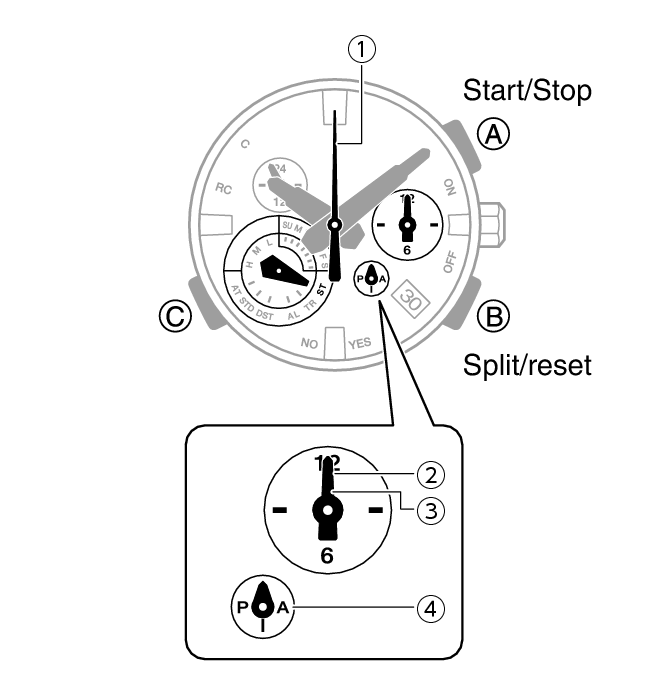

Stopwatch Mode

The main hour and minute hands indicate the current time.

The second hand, and the small hour and minute hands indicate the elapsed stopwatch time.

1. Stopwatch seconds

2. Stopwatch minutes

3. Stopwatch hours

4. Stopwatch 24-hour hand

The hand points to the A-side for hours 0 through 11, and to the P-side for hours 12 through 23.

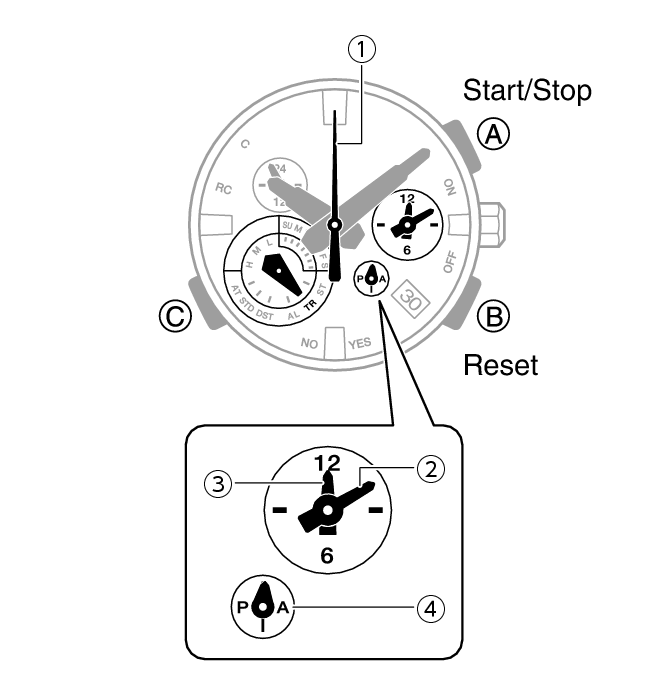

Timer Mode

The main hour and minute hands indicate the current time.

The second hand, and the small hour and minute hands indicate the current countdown time.

1. Timer seconds

2. Timer minutes

3. Timer hours

4. Timer 24-hour hand

The hand points to the A-side for hours 0 through 11, and to the P-side for hours 12 through 23.

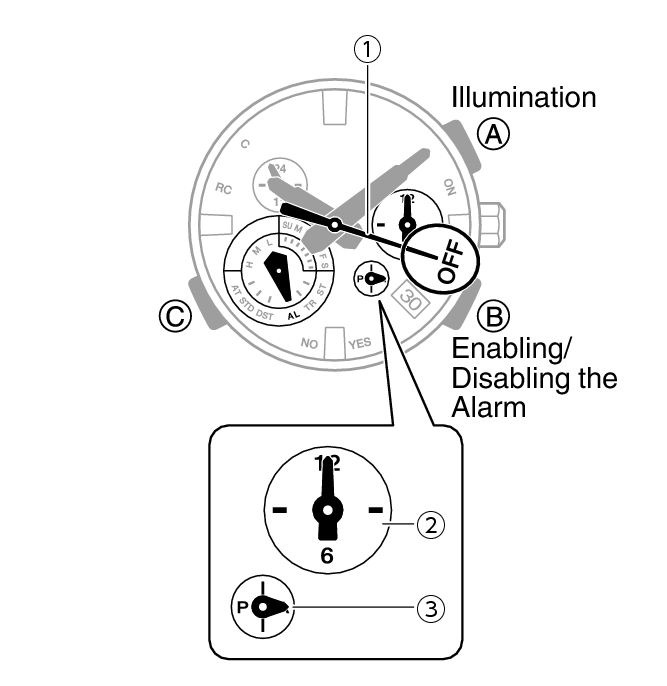

Alarm Mode

The main hour and minute hands indicate the current time.

The small hour and minute hands indicate the alarm time.

1. Alarm enabled/disabled

2. Alarm time

3. Alarm 24-hour hand

The hand points to the A-side for a.m. times, and to the P-side for p.m. times.

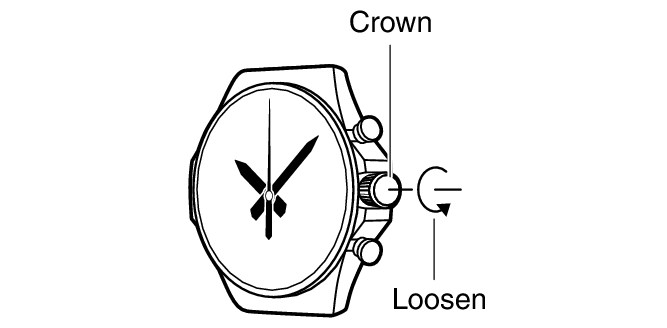

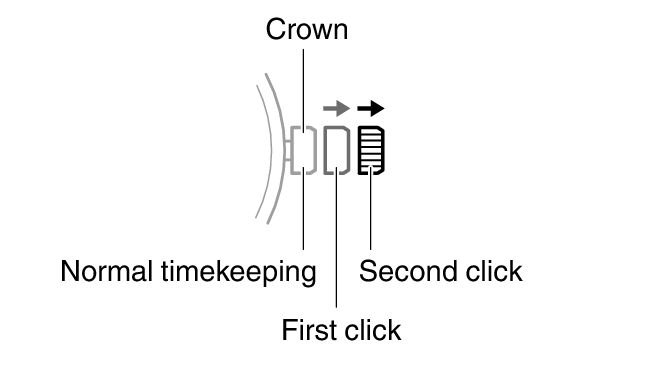

Using the Crown

The watch’s crown is a screw-in (screw lock) type. To use the crown, you first need to rotate it towards you (leftwards) to loosen it.

Important!

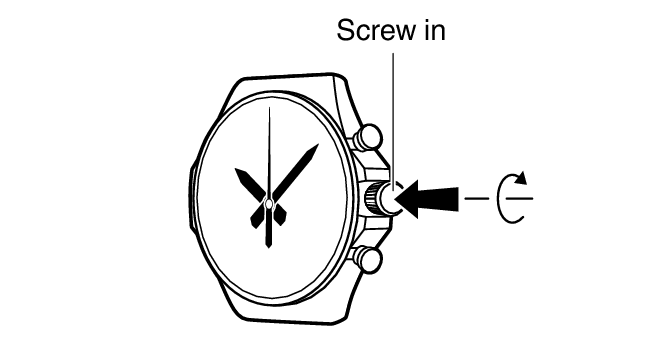

To prevent loss of water resistance and/or damage due to impact, be sure to screw the crown in by rotating it away from you as you push it in.

When pushing the crown back in, take care not to apply too much force.

Fast Forward/Fast Reverse

After pulling out the crown to the first or second click, rotating it quickly in succession in either direction will start a fast forward or fast reverse operation. While a fast forward operation is in progress, quickly rotating the crown in succession again will increase the speed even further.

Stopping Fast Forward/Fast Reverse

Rotate the crown in the direction opposite that of the ongoing operation or press any button.

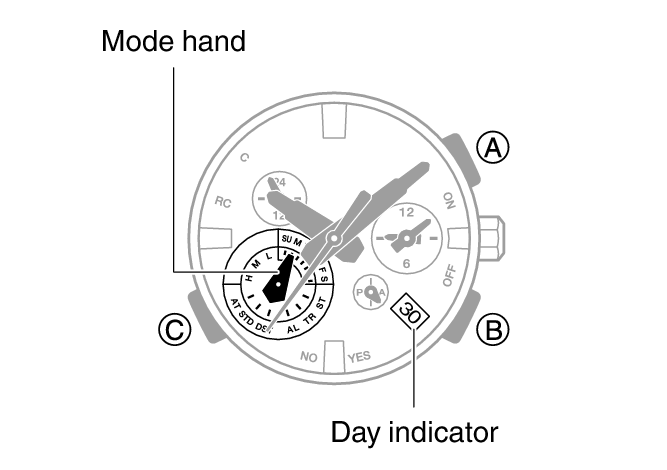

Hand and Day Indicator Movement

Mode Hand and Day Indicator Movement

Changing the day setting of the watch will also cause the mode hand to move.

Day

It can take anywhere from about 10 to 40 seconds for the day indicator to change after timekeeping reaches midnight. The mode hand moves as the day indicator changes.

The day may not be indicated correctly while the watch’s crown is pulled out.

Charging

This watch runs on power supplied from a rechargeable (secondary) battery that is charged by a solar panel. The solar panel is integrated into the face of the watch, and power is generated whenever the face is exposed to light.

Charging the Watch

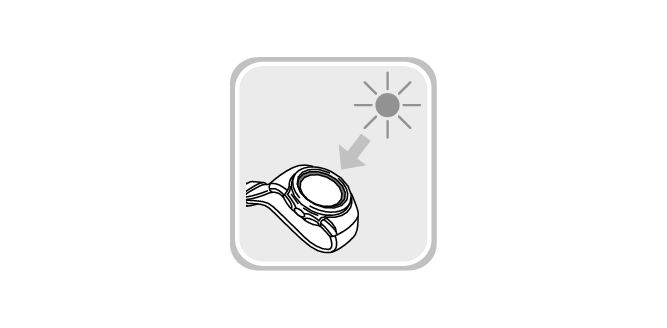

When you are not wearing the watch, put it in a location where it is exposed to bright light.

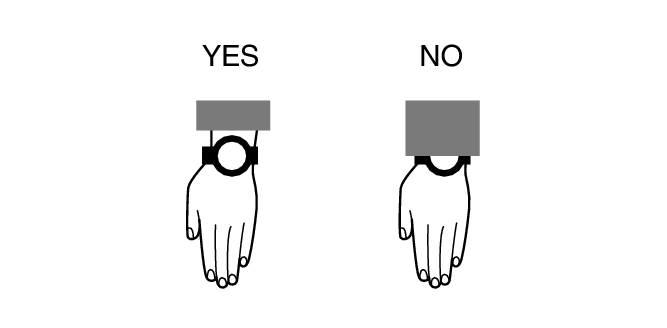

While you are wearing the watch, make sure that its face (solar panel) is not blocked from light by the sleeve of your clothing. Power generation efficiency is reduced even when the face of the watch is blocked only partially.

Important!

Some light sources and environments can cause the watch to become extremely hot during charging, which creates the risk of burn injury and damage to internal watch components.
Avoid charging the watch under conditions like the ones described below, where the temperatures may exceed 60 °C (140 °F).

On the dashboard of a vehicle parked in the sun

Near incandescent lamps, camera lights, halogen lamps, or other sources of heat

In locations exposed to direct sunlight for long periods and other hot locations

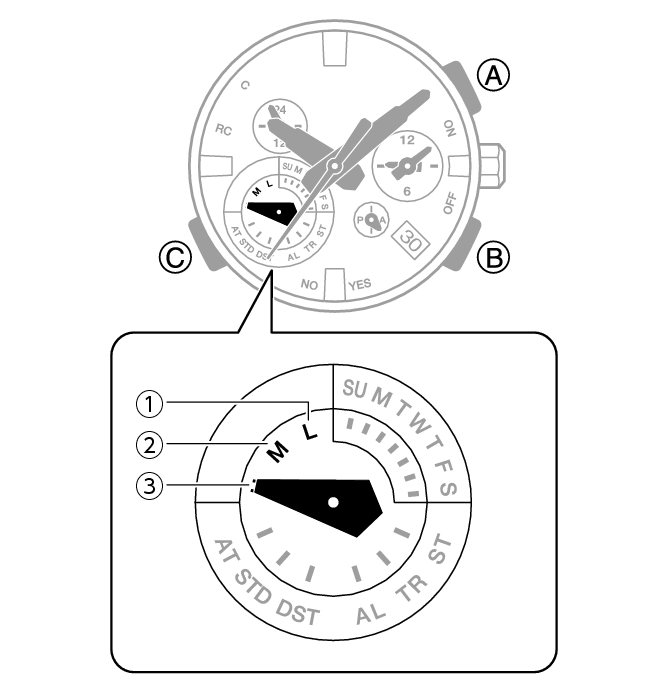

Checking the Charge Level

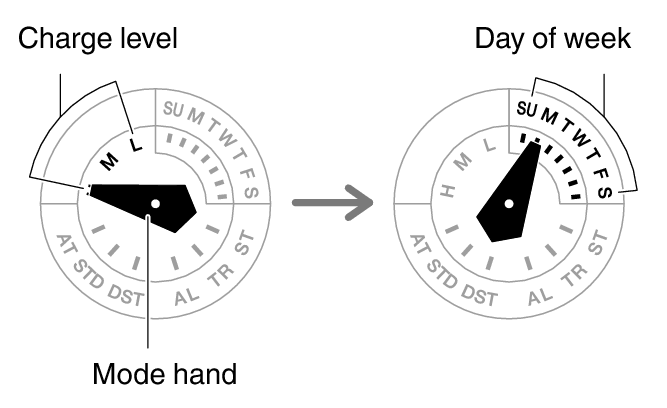

Immediately after you press (C) to return to the Calendar Mode, the mode hand will indicate the battery charge level. After a short while, the mode hand will indicate the current day of the week.

1. Low Battery

2. Good (medium charge)

3. Good (high charge)

Remaining Charge and Dead Battery

You can determine if the charge level is low by checking the hand movement. Functions become disabled as battery power goes low.

Important!

Should the battery go low or go dead, expose the face (solar panel) to light as soon as possible.

Note

Exposing the watch face to light after the battery goes dead will cause the second hand to revolve counterclockwise until it stops at second 57. This indicates charging has started.

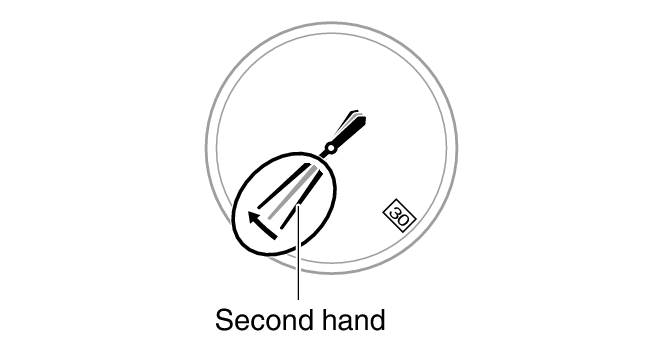

Low Battery Power

The second hand jumps at two-second intervals.

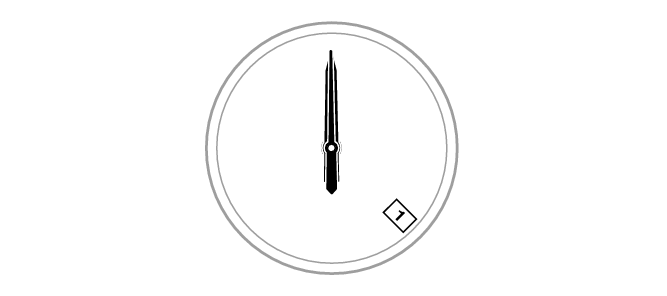

Dead Battery

All hands and the day indicator are stopped.

Charging Time Guidelines

The table below shows guidelines for approximate charging times.

Charging Times Required for 1 Day of Operation

Light Level (Lux)	Approximate Charging Time
50,000	8 minutes
10,000	30 minutes
5,000	48 minutes
500	8 hours

Charge Recovery Times

Sunny day, outdoors (50,000 lux)

Dead battery Medium charge	2 hours
Medium charge High charge	17 hours
High charge Full charge	5 hours

Sunny day, near a window (10,000 lux)

Dead battery Medium charge	5 hours
Medium charge High charge	63 hours
High charge Full charge	17 hours

Overcast day, near a window (5,000 lux)

Dead battery Medium charge	8 hours
Medium charge High charge	102 hours
High charge Full charge	28 hours

Indoor fluorescent lighting (500 lux)

Dead battery Medium charge	90 hours
Medium charge High charge	-
High charge Full charge	-

Note

Actual charging time depends on the charging environment, watch settings, and other factors.

Power Saving

Leaving the watch in a dark location for about one hour between the hours of 10 p.m. and 5:50 a.m. will cause the second hand to stop, and the watch to enter Level 1 power saving. If the watch is left in this condition for six or seven days, all hands will stop at 12 o’clock and the watch will enter Level 2 power saving.

Level 1:

Second hand stops to save power.

Level 2:

The following operations are stopped to save power: all hand movement (excluding the day indicator), Bluetooth connection, and alarm alerts.

Note

Note that the watch also may enter the power saving state if its face is blocked from light by your sleeve while you are wearing it.

The watch will enter power saving from the Calendar Mode only.

Recovering from Power Saving Operation

Use one of the operations below to exit power saving.

Press any button.

Pull out the crown.

Move the watch to a bright location.

Viewing the Face in the Dark

The watch has an LED light that you can use to illuminate the display for about 1.5 seconds for viewing in the dark. When turned on, illumination becomes gradually brighter and then gradually dimmer.

Illumination can be used in the Calendar Mode and Alarm Mode.

Turning On Illumination

Press (A) to illuminate the face of the watch.

Illumination turns off automatically if an alarm starts to sound.

Illumination is disabled while the hands are moving at high speed.

Useful Features

Pairing the watch with your phone makes a number of the watch’s features easier to use.

Auto time correction

Selection of More Than 300 World Time cities

In addition, a number of other watch settings can be configured using your phone.

To transfer data to a watch and to configure settings, you first need to pair the watch with your phone.

Your phone needs to have the “CASIO WATCHES” phone app installed to pair with the watch.
