About This Watch
This section provides an overview of the watch and introduces convenient ways it can be used.
Watch Features
The watch supports connection and communication with a Bluetooth capable phone.
Sunlight and artificial light generate electricity for watch operation as it charges.
The watch receives a radio signal containing time information and uses it to keep its time setting accurate.
The current time can be displayed for any one of 39 cities around the globe, as well as for UTC (Coordinated Universal Time).
You can select up to five cities in the World Time Mode.
An alarm sounds whenever a time specified by you is reached.
The stopwatch measures elapsed time in units of one second (1/100 second for the first hour) up to 24 hours.
Countdown from a start time specified by you. An alarm sounds when the countdown reaches zero.
Note
The illustrations included in this operation guide have been created to facilitate explanation. An illustration may differ somewhat from the item it represents.

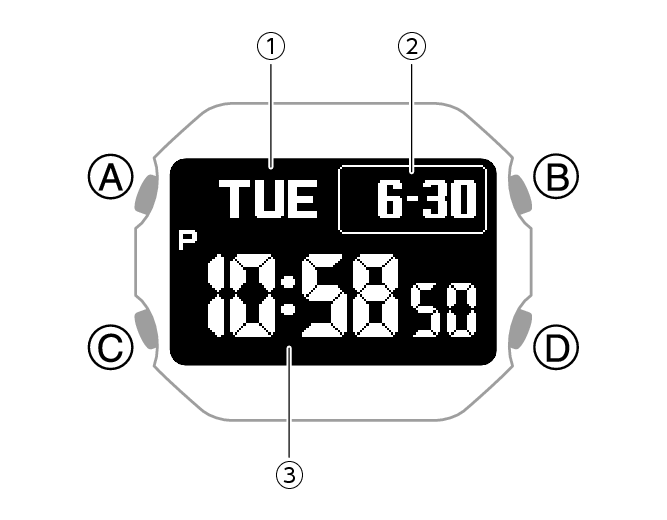

General Guide
-
Day of the week
-
Month, day
-
Hour, minute, second
A button
Holding down this button for at least two seconds in any mode displays the setting screen.
B button
Press to turn on illumination.
C button
Each press cycles between watch modes.
In any mode, hold down this button for at least one second to return to the Timekeeping Mode.
D button
Pressing this button while any setting screen is displayed will change the setting.

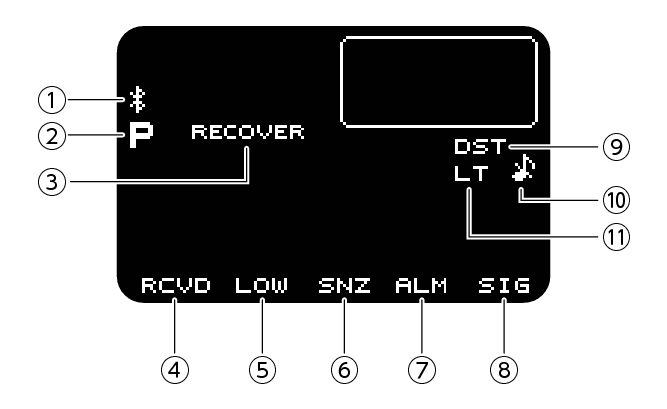

Indicators
-
Displayed while there is a Bluetooth connection between the watch and a phone.
-
Displayed during p.m. times while 12-hour timekeeping is being used.
-
Displayed while the watch is in charge recovery mode.
-
Displayed after time adjustment using time signal reception or connection with a phone was successful.
-
Displayed when battery power is low.
-
Displayed while the snooze alarm is turned on.
-
Displayed while an alarm is turned on.
-
Displayed while the hourly time signal is enabled.
-
Displayed while the watch is indicating summer time.
-
Displayed while the button operation tone is disabled.
-
Displayed while Full Auto Light is enabled.
The [RCVD] indicator will disappear in the cases below.
After you use watch operations to change Home City settings (time and date, city, summer time)
After the watch switches between standard time and summer time
After a time signal receive operation fails
After a phone-based time adjustment operation fails

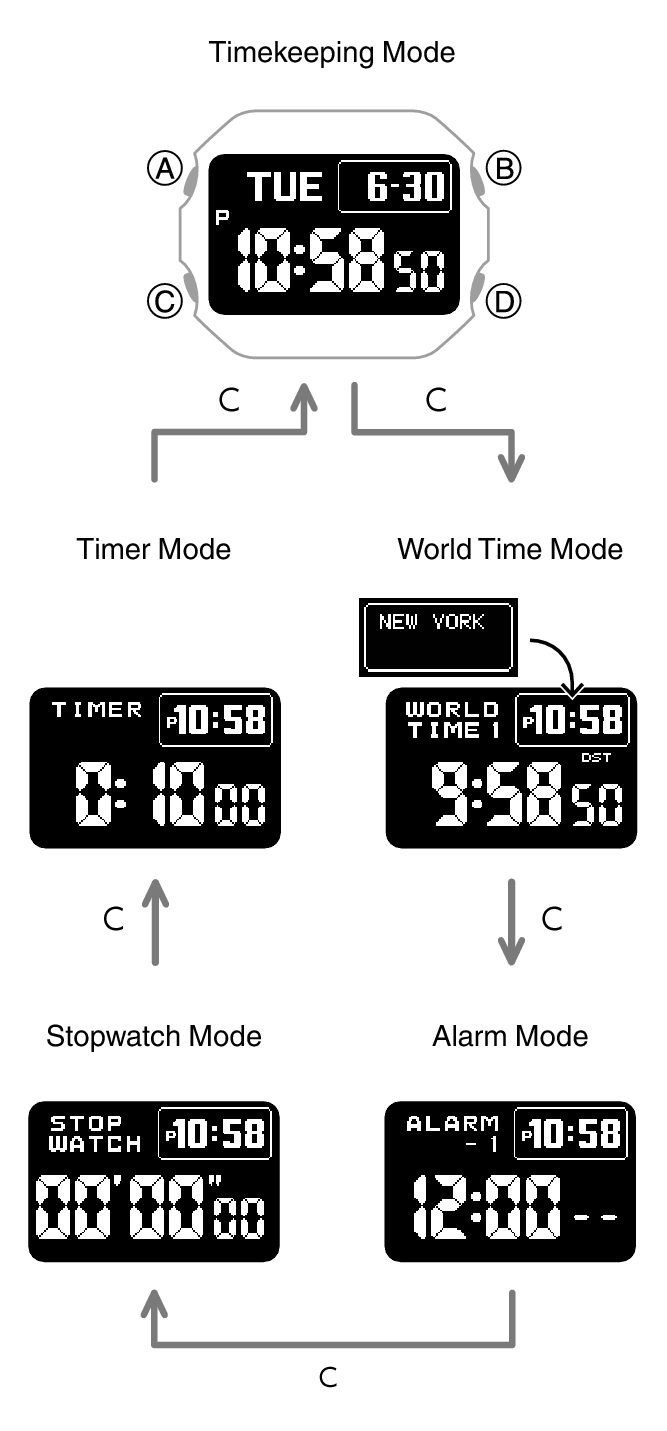

Navigating Between Modes
Each press of (C) cycles between watch modes.
In any mode, hold down (C) for at least one second to return to the Timekeeping Mode.

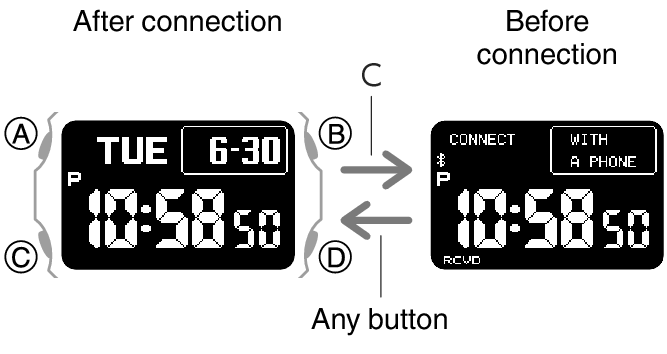

Connecting with a Phone
Hold down (C) for at least three seconds to connect with a phone.
To disconnect, press any button.

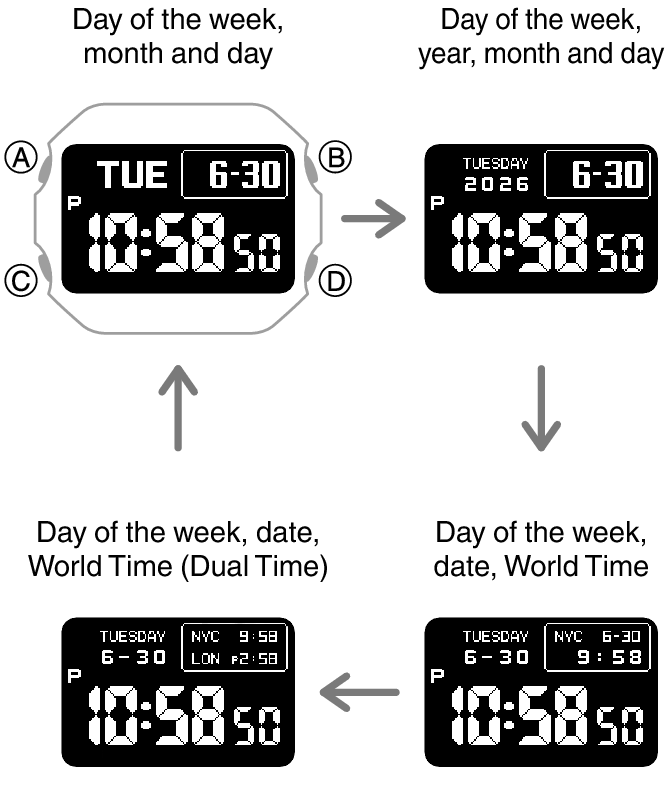

Navigating Between Timekeeping Mode Screens
Each press of (A) in the Timekeeping Mode cycles the display information as shown below.
Charging
This watch runs on power supplied from a rechargeable (secondary) battery that is charged by a solar panel. The solar panel is integrated into the face of the watch, and power is generated whenever the face is exposed to light.
Charging the Watch

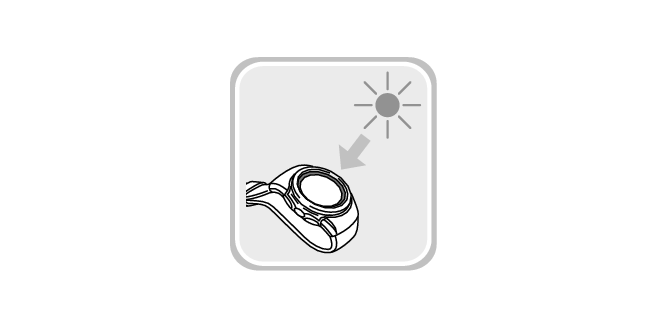

When you are not wearing the watch, put it in a location where it is exposed to bright light.

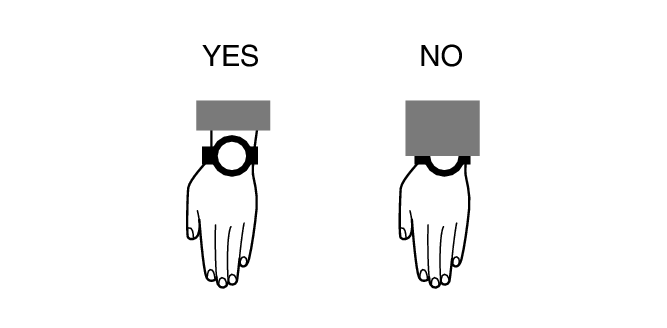

While you are wearing the watch, make sure that its face (solar panel) is not blocked from light by the sleeve of your clothing. Power generation efficiency is reduced even when the face of the watch is blocked only partially.
Important!
Some light sources and environments can cause the watch to become extremely hot during charging, which creates the risk of burn injury and damage to internal watch components.
Avoid charging the watch under conditions like the ones described below, where the temperatures may exceed 60 °C (140 °F).
On the dashboard of a vehicle parked in the sun
Near incandescent lamps, camera lights, halogen lamps, or other sources of heat
In locations exposed to direct sunlight for long periods and other hot locations

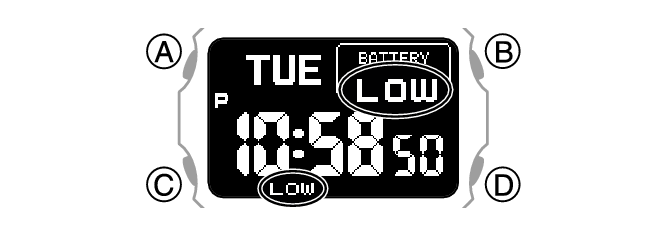

Low Battery
A low battery causes [LOW] to appear and disables non-timekeeping functions.
Dead Battery
The digital display will go blank if the battery goes dead. This also clears all data. However, pairing information is not deleted.
Important!
Should the battery go low or go dead, expose the face (solar panel) to light as soon as possible.
After the battery runs out, exposing the watch to light causes [CHG] to appear after a short while. Keep the watch exposed to light until the current time appears on the display.
Note
If [RECOVER] is shown on the display, it means all non-timekeeping functions are disabled due to high momentary battery power consumption.
Charging Time Guidelines
The table below shows guidelines for approximate charging times.
Charging Times Required for 1 Day of Operation
|
Light Level (Lux) |
Approximate Charging Time |
|---|---|
|
50,000 |
8 minutes |
|
10,000 |
30 minutes |
|
5,000 |
48 minutes |
|
500 |
8 hours |
Charge Recovery Times
Sunny day, outdoors (50,000 lux)
|
Dead battery |
3 hours |
|
Medium charge |
22 hours |
|
High charge |
6 hours |
Medium chargeSunny day, near a window (10,000 lux)
|
Dead battery |
8 hours |
|
Medium charge |
81 hours |
|
High charge |
22 hours |
Overcast day, near a window (5,000 lux)
|
Dead battery |
12 hours |
|
Medium charge |
131 hours |
|
High charge |
35 hours |
Indoor fluorescent lighting (500 lux)
|
Dead battery |
140 hours |
|
Medium charge |
- |
|
High charge |
- |
Note
Actual charging time depends on the charging environment, watch settings, and other factors.
Power Saving Function
Leaving the watch in a dark location for about one hour between the hours of 10 p.m. and 5:50 a.m. causes the display to go blank and then the watch enters Level 1 power saving. If the watch is left in this condition for six or seven days, it enters Level 2 power saving.
Power Saving Level 1:
Digital display goes blank to save power. The watch can connect with a phone at this level.
Power Saving Level 2:
Digital display goes blank to save power. All functions are disabled.
Recovering from Power Saving Operation
Use one of the operations below to exit power saving.
Press any button.
Move the watch to a bright location.
Trigger Full Auto Light by angling the watch towards your face.
Note
The watch will not enter power saving in the cases below.
World Time Mode
Alarm Mode
While in the Stopwatch Mode
While in the Timer Mode
Note that the watch also may enter power saving if its face is blocked from light by your sleeve while you are wearing it.
Viewing the Face in the Dark

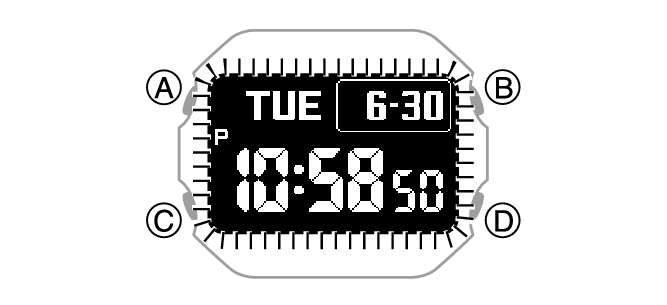

The watch has a light that illuminates the face for viewing in the dark.
To illuminate the face manually
Press (B) to turn on illumination.
Illumination turns off automatically if an alarm starts to sound.
Important!
Frequent use of illumination will run down the battery.
Note
Display illumination is disabled when any one of the conditions below exists.
While an alarm, timer alert, or other beeper is sounding
Time calibration reception in progress
To illuminate the face when Auto Light is enabled

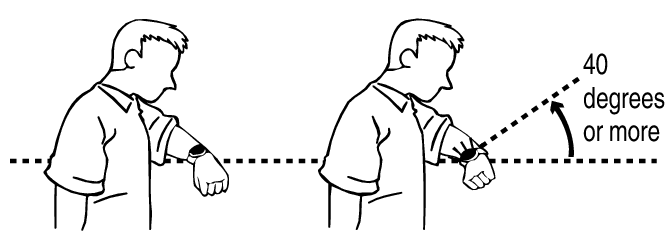

If Full Auto Light is enabled, face illumination turns on automatically whenever the watch is positioned at an angle of 40 degrees or more.
Important!

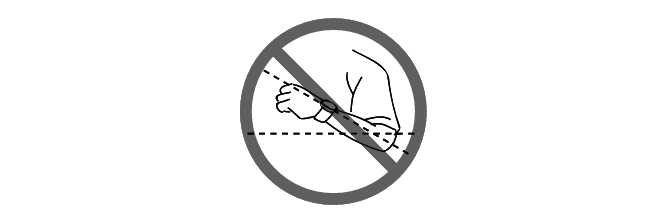

Auto Light may not operate properly when the watch is at a horizontal angle of 15 degrees or greater from horizontal as shown in the illustration below.
Auto Light may operate unintentionally and run down the battery if the watch is blocked from light by your sleeve.
Electro-static charge or magnetism can interfere with proper Full Auto Light operation. If this happens, try lowering your arm and then angle it towards your face again.
When moving the watch you may note a slight rattling sound. This is the sound of Full Auto Light switch operation and does not indicate malfunction.
Note
Auto Light does not operate when available lighting is bright.
Full Auto Light is disabled when any one of the conditions below exists.
While an alarm, timer alert, or other beeper is sounding
Time calibration reception in progress

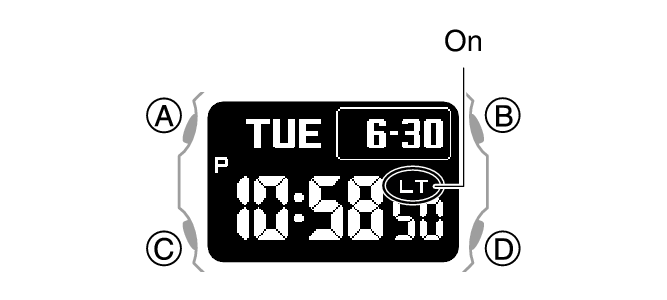

Configuring the Full Auto Light Setting
-
Enter the Timekeeping Mode.
-
Hold down (B) for at least three seconds to toggle Full Auto Light between enabled and disabled.
[LT] is displayed while Full Auto Light is enabled.
Note
Full Auto Light is disabled while battery power is depleted.

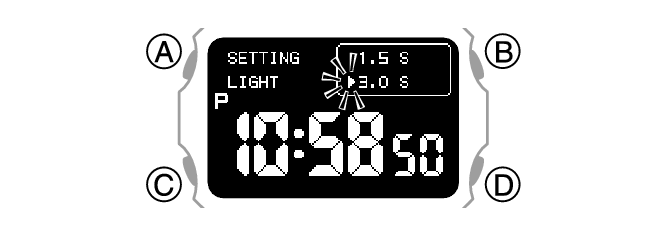

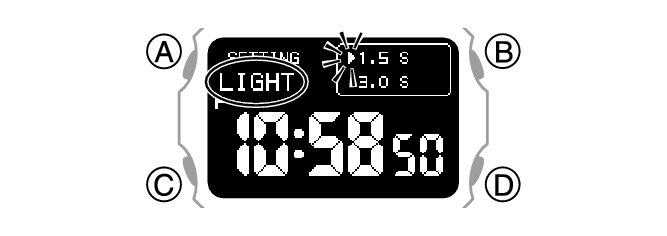

Specifying the Illumination Duration
You can select either 1.5 seconds or three seconds as the illumination duration.
-
Enter the Timekeeping Mode.
-
Hold down (A) for at least two seconds. Release the button when the name of the currently selected Home City appears on the display.
-
Press (C) 11 times to display [LIGHT].
-
Press (D) to select an illumination duration.
-
Press (A) to exit the setting screen.
[1.5 S]: 1.5-second illumination
[3.0 S]: 3-second illumination

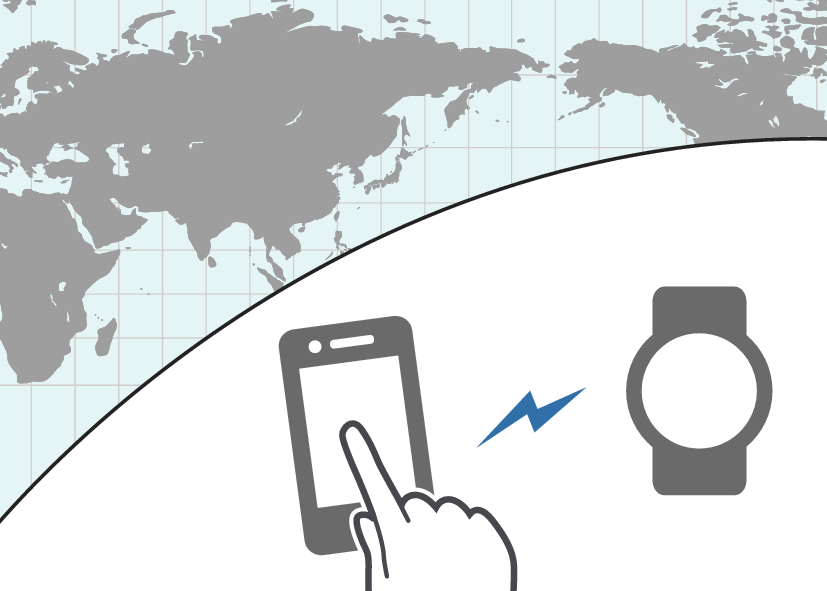

Useful Features
Pairing the watch with your phone makes a number of the watch’s features easier to use.
Auto time correction
Selection of More Than 300 World Time cities
In addition, a number of other watch settings can be configured using your phone.
To transfer data to a watch and to configure settings, you first need to pair the watch with your phone.
Your phone needs to have the “CASIO WATCHES” phone app installed to pair with the watch.
