Module No. 5746

Alarm

The watch beeps when an alarm time is reached. You can set up to five different alarms. The hourly time signal causes the watch to beep every hour on the hour.

The alarm sound is muted in the cases described below.

When battery power is low

When watch is at Level 2 power saving
Reference Power Saving Function

img_ALM_2023_2

Using CASIO WATCHES to Configure Alarm Settings

If the watch is paired with a phone, you can also use the CASIO WATCHES phone app to set alarms.

Configuring Watch Settings

Configuring Alarm Settings

  1. Enter the Alarm Mode.

    2. Navigating Between Modes

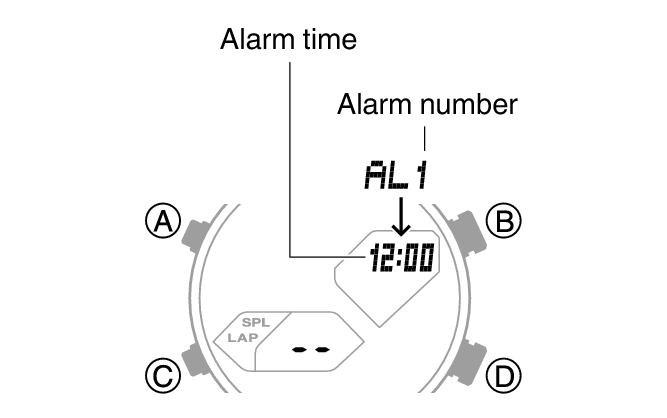

  2. Press (D) to scroll through alarm numbers ([AL1] to [AL5]) until the alarm you want to configure is displayed.

    3. 5746_23_ALM

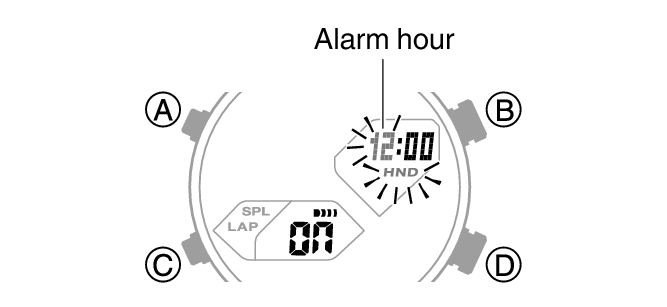

  3. Hold down (A) for at least two seconds. Release the button when the hours digits start to flash.

    4. This is the setting mode. The hands automatically shift out of the way for easy viewing of the display and other indicators.

    While the setting is being configured, the watch will exit the setting operation automatically after about two or three minutes of non-operation.

    5746_24_ALM

  4. Use (B) and (D) to change the hour setting.

    5. Holding down (B) or (D) scrolls through settings at high speed.

    If you are using 12-hour timekeeping, [P] indicates p.m.

    5746_25_ALM

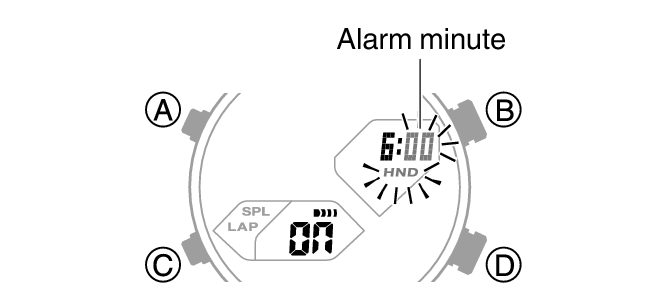

  5. Press (C).

    6. This causes the minutes digits to flash.

    5746_26_ALM

  6. Use (B) and (D) to set the minute setting.

  7. Press (A) to exit the setting screen.

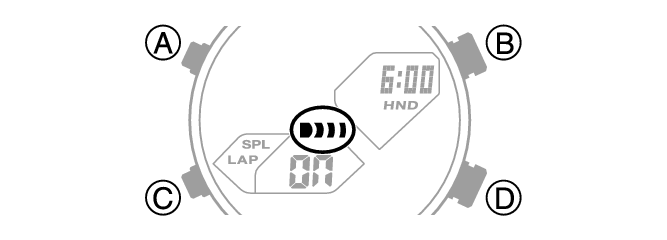

    8. mark_ALM (Alarm) is shown on the display while an alarm is turned on.

    5746_27_ALM

To stop the alarm

Pressing any button while the beeper is sounding stops it.

Note

A beeper sounds for 10 seconds when an alarm time is reached.

The watch automatically returns from the Alarm Mode to the Timekeeping Mode if you do not perform any operation for about two or three minutes.

Enabling the Hourly Time Signal

  1. Enter the Alarm Mode.

    2. Navigating Between Modes

  2. Use (D) to display the hourly time signal screen ([SIG]).

    3. 5746_28_ALM

  3. Press (A) to toggle the hourly time signal between enabled and disabled.

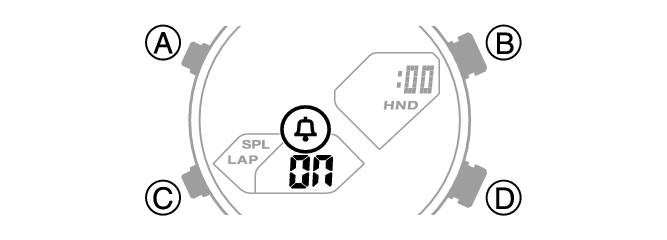

    4. mark_SIG (hourly time signal) is shown on the display while the hourly time signal is enabled.

    5746_29_ALM

Turning Off an Alarm or the Hourly Time Signal

To stop an alarm or the hourly time signal from sounding, perform the steps below to turn it off.

To have an alarm or hourly time signal sound again, turn it back on.

Note

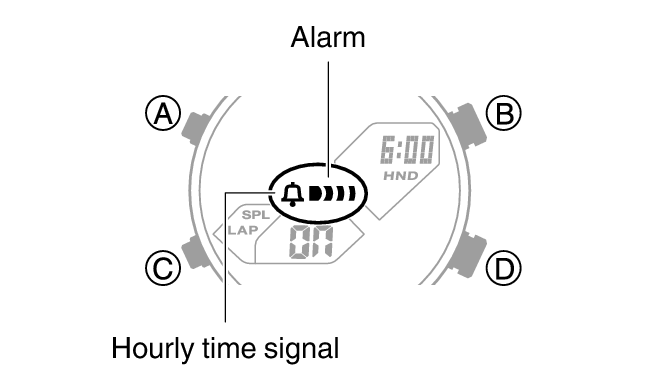

Indicators are displayed while any of the alarms or the hourly time signal is turned on.

The applicable indicators are not displayed while all of the alarms are turned off and/or the hourly time signal is turned off.

5746_30_ALM

  1. Enter the Alarm Mode.

    2. Navigating Between Modes

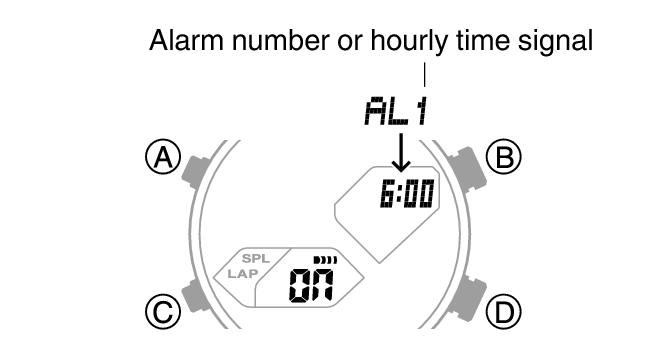

  2. Use (D) to scroll through the alarm ([AL1] to [AL5]) and hourly time signal ([SIG]) screens until the one you want to turn off is displayed.

    3. 5746_31_ALM

  3. Press (A) to turn off the displayed alarm or the hourly time signal.

    4. Each press of (A) toggles between on and off.

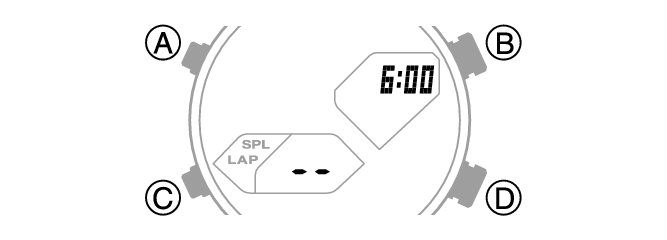

    Turning off all alarms causes mark_ALM (alarm) to disappear from the display. Turning off the hourly time signal causes mark_SIG (hourly time signal) to disappear.

    5746_32_ALM

Note

If mark_ALM (alarm) is still displayed after you turn off an alarm, it means that at least one of the other alarms is still turned on. To turn off all of the alarms, repeat steps 2 and 3 until the mark_ALM (alarm) indicator is no longer displayed.

Alarm Countdown Indication

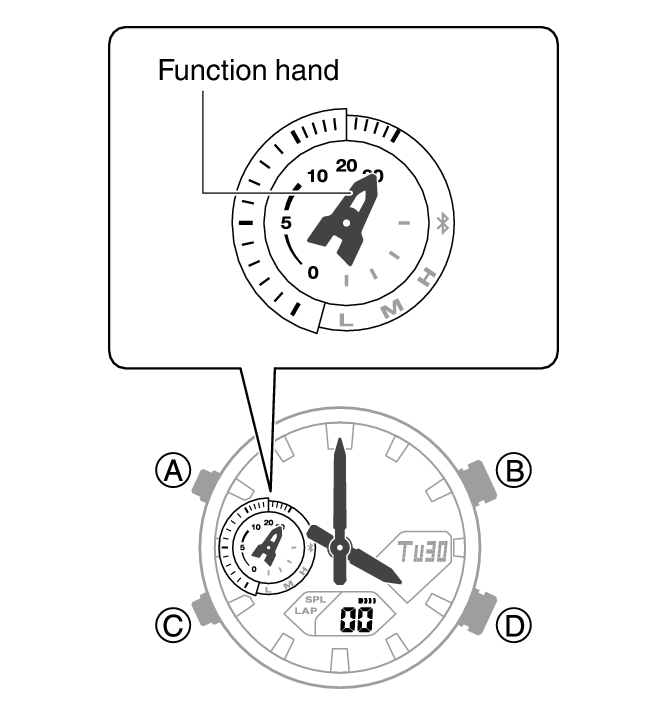

30 minutes before an alarm time is reached, a countdown start tone sounds and the function hand starts to indicate the remaining time until the alarm time.

5746_33_TMR

Note

You can use the procedure below to enable or disable the countdown start tone.

Disabling the Countdown Start Tone

During a period within 30 minutes of both an alarm time and the end of a timer operation, the function hand indicates the timer countdown.
