Module No. 3573

Turning On Time Flash

  1. Enter the Time Flash Mode.

    2. Navigating Between Modes

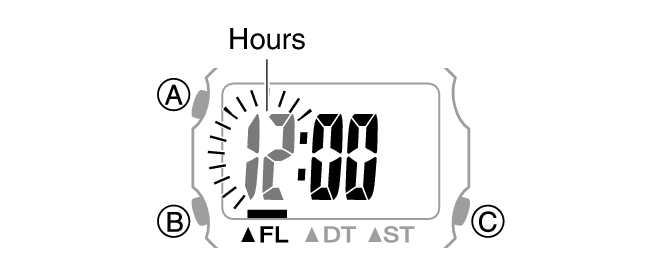

  2. Hold down (A) for at least two seconds.

    3. This causes the light to turn on momentarily and the hour to flash.

    The light may not be visible when ambient lighting is bright.

    3573_10_FL

  3. Use (A) to display the setting you want to change.

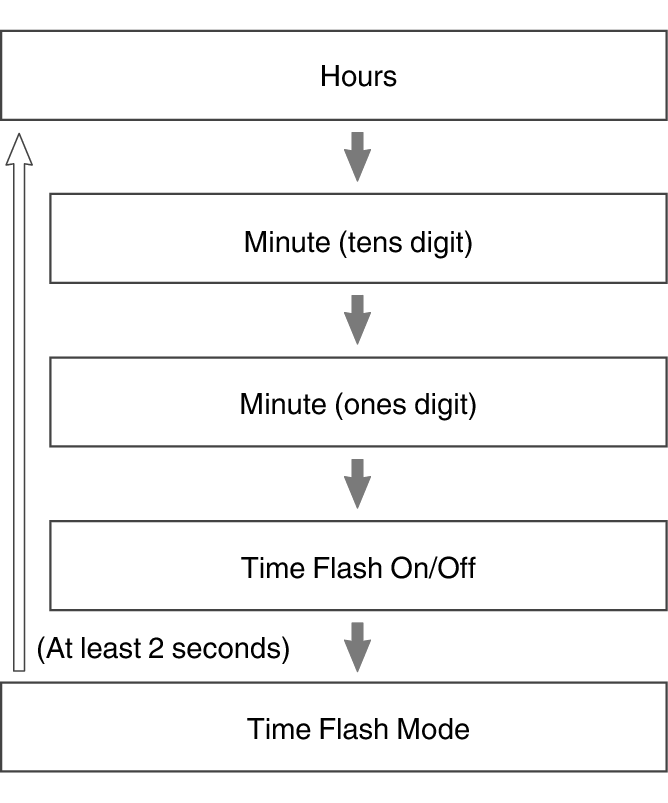

    4. Each press of (A) cycles through settings in the sequence shown below.

    fl_FL_seting

  4. Use (B) to change the value.

    5. Holding down (B) scrolls through settings at high speed.

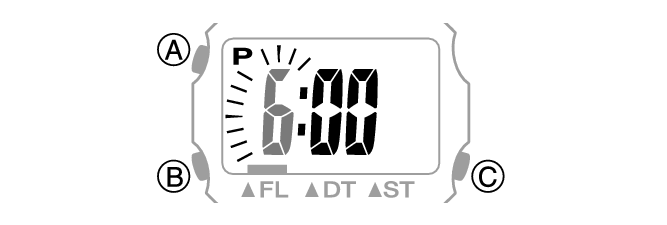

    When setting the hour: If you are using 12-hour timekeeping, [P] indicates a p.m. time.

    3573_11_FL

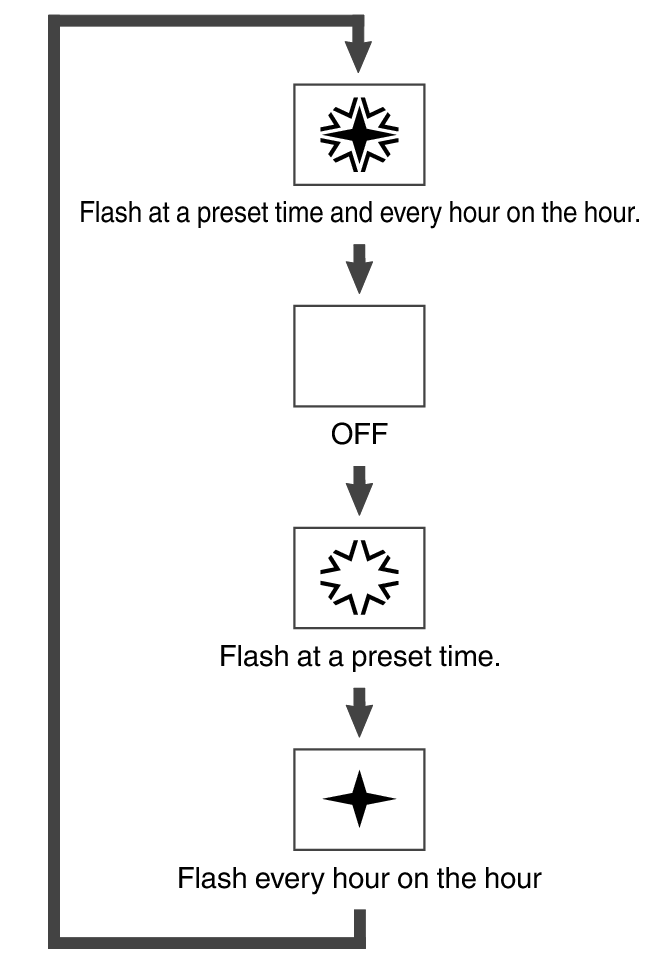

    Press (B) to cycle the Time Flash setting in the sequence shown below.

    fl_FL_on_off_common

  5. Repeat steps 3 and 4 to set the Time Flash time.

  6. Press (A) to complete the setting operation.

Note

While a setting is being configured, the setting operation will be exited automatically after about one or two minutes of non-operation.

To check Time Flash operation

In any mode, hold down (B) to view Time Flash operation.

To stop Time Flash operation

After a Time Flash operation starts at a preset time, press (A) or (B) to stop it.
