Module No. 5454

Checking the Charge Level

The charge level is indicated by watch hand movement. Functions become disabled as battery power goes low.

Immediately after pressing (C) to enter to the Timekeeping Mode, the second hand will move to one of the positions below to indicate the battery charge level.

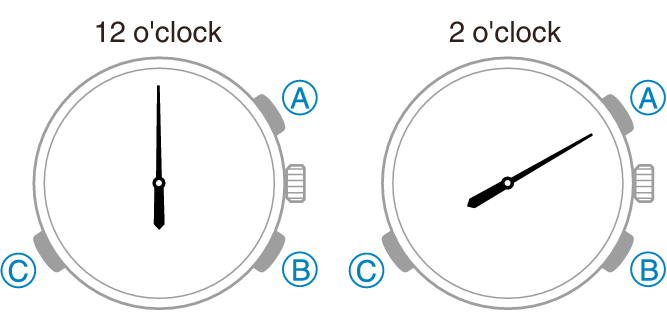

Battery Charged

batt_hand_0_10sec

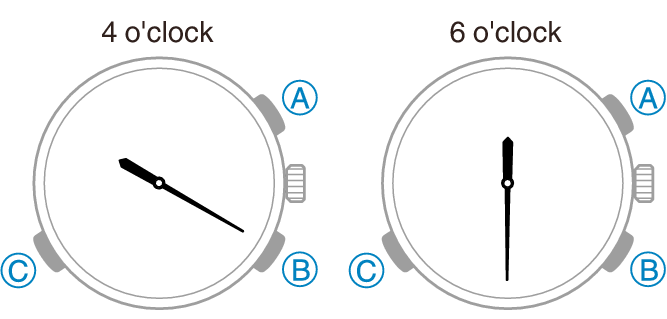

Low Battery Power

batt_hand_20_30sec

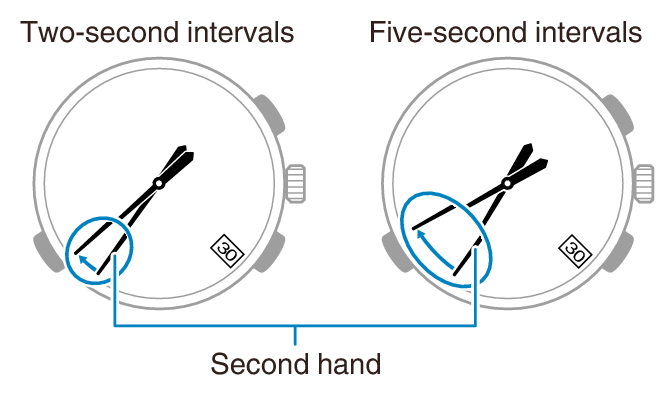

Also, the second hand jumps at two-second or five-second intervals.

batt_hand_2_5sec
  • Above right figures indicate a lower battery charge.

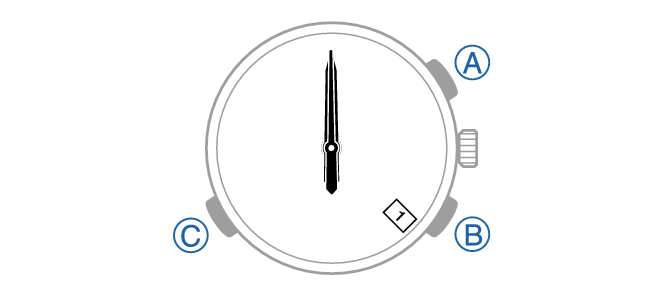

Dead Battery

All hands are stopped.

batt_all_hands_0sec
